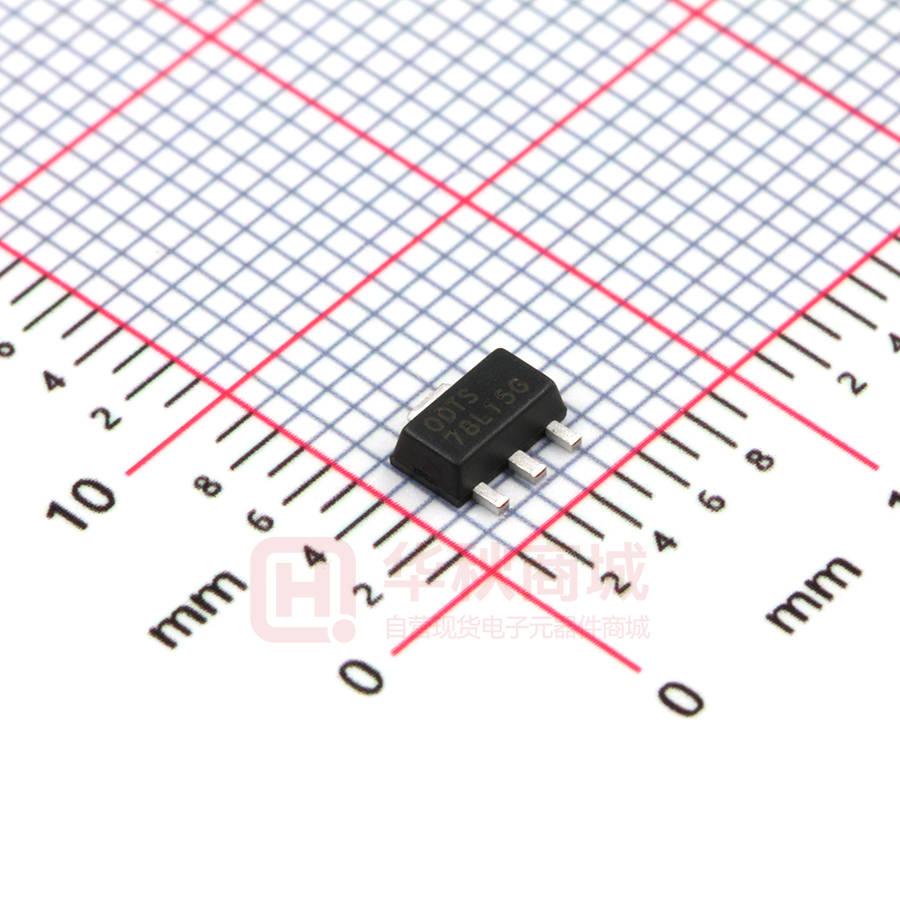

78L15G-AB3-R

UNISONIC TECHNOLOGIES CO., LTD 78LXX LINEAR INTEGRATED CIRCUIT 3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATOR  DESCRIPTION The UTC 78LXX family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 100mA.  FEATURES * Output current up to 100mA * Fixed output voltage of 5V, 6V, 8V, 9V, 10V, 12V, 15V and 18V available * Thermal overload shutdown protection * Short circuit current limiting  ORDERING INFORMATION Ordering Number Pin Assignment Package Lead Free Halogen Free 1 2 3 4 5 6 7 8 78LXXG-AB3-R SOT-89 O G I - - - - 78LXXG-AB3-C-R SOT-89 G I O - - - - 78LXXG-AF5-R SOT-25 G I O N N 78LXXG-S08-R SOP-8 O G G N N G G I 78LXXL-T92-B 78LXXG-T92-B TO-92 O G I - - - - 78LXXL-T92-K 78LXXG-T92-K TO-92 O G I - - - - 78LXXL-T9N-B 78LXXG-T9N-B TO-92NL O G I - - - - 78LXXL-T9N-K 78LXXG-T9N-K TO-92NL O G I - - - - Note: 1. XX: Output Voltage, refer to Marking Information. 2. Pin Assignment: O: Output G: GND I: Input N: No Connection www.unisonic.com.tw Copyright © 2014 Unisonic Technologies Co., Ltd Packing Tape Reel Tape Reel Tape Reel Tape Reel Tape Box Bulk Tape Box Bulk 1 of 8 QW-R101-001.R 78LXX  LINEAR INTEGRATED CIRCUIT MARKING INFORMATION PACKAGE VOLTAGE CODE MARKING SOT-89 SOT-25 05:5.0V 06:6.0V 08:8.0V 09:9.0V SOP-8 10:10V Date Code Voltage Code UTC 78LXXG Lot Code 12:12V 15:15V TO-92 18:18V TO-92NL UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 8 QW-R101-001.R 78LXX  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL RATINGS UNIT 30 VIN Input Voltage V 35 Output Current IOUT 100 mA SOT-89 350 mW SOT-25 240 mW Power Dissipation PD SOP-8 300 mW TO-92/TO-92NL 625 mW Junction Temperature TJ +150 °C Operating Temperature TOPR -40~+85 °C Storage Temperature TSTG -55~+150 °C Note Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied. VOUT=5~9V VOUT=10~18V  ELECTRICAL CHARACTERISTICS For UTC78L05 (VIN=10V, IOUT=40mA, 0°C
