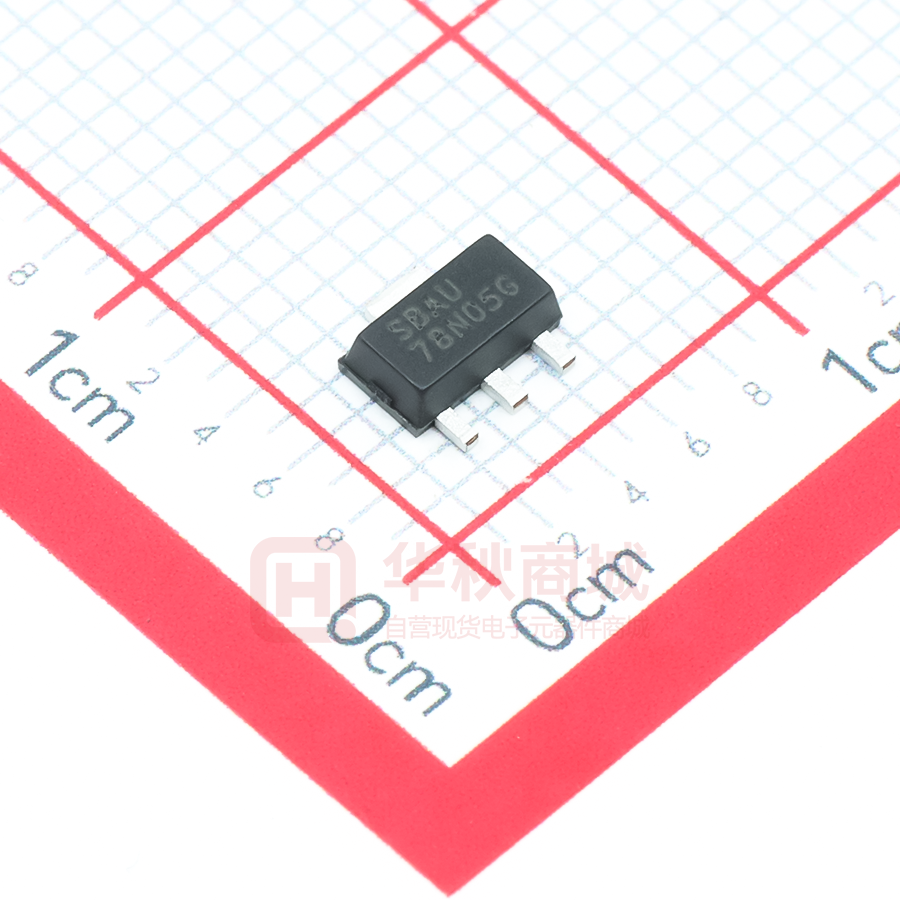

78N05G-AB3-R

UNISONIC TECHNOLOGIES CO., LTD 78NXX LINEAR INTEGRATED CIRCUIT 3-TERMINAL 300mA POSITIVE VOLTAGE REGULATOR  DESCRIPTION The UTC 78NXX family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications requiring supply current up to 300mA.  1 SOT-223 SOT-89 FEATURES 1 * Output Current up to 300mA * Fixed Output Voltage of 5V, 6V, 8V, 9V, 15V, 18V, 24V * Thermal Overload Shutdown Protection * Short Circuit Current Limiting  1 TO-252 ORDERING INFORMATION Ordering Number Lead Free Halogen Free 78NXXL-AB3-R 78NXXG-AB3-R 78NXXL-AA3-R 78NXXG-AA3-R 78NXXL-TN3-R 78NXXG-TN3-R Note: XX: Output Voltage, refer to Marking Information www.unisonic.com.tw Copyright © 2017 Unisonic Technologies Co., Ltd Package SOT-89 SOT-223 TO-252 Pin Assignment 1 2 3 O G I O G I I G O Packing Tape Reel Tape Reel Tape Reel 1 of 8 QW-R101-033.H 78NXX  LINEAR INTEGRATED CIRCUIT MARKING INFORMATION PACKAGE VOLTAGE CODE MARKING Date Code SOT-89 Voltage Code 1 SOT-223 L: Lead Free G: Halogen Free 78N 2 3 05: 5.0V 06: 6.0V 08: 8.0V 09: 9.0V 15: 15V 18: 18V 24: 24V TO-252  BLOCK CIRCUIT UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 8 QW-R101-033.H 78NXX  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATING (Operating temperature range applies, unless otherwise specified.) PARAMETER SYMBOL RATINGS UNIT 30 V VIN Input Voltage 35 V Output Current IOUT 300 mA SOT-89 550 Power Dissipation PD mW SOT-223 750 TO-252 1000 Operating Temperature (Note 2) TOPR -40 ~ +150 °C Storage Temperature TSTG -55 ~ +150 °C Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied. 2. It is guarantee by design, not 100% be tested. VOUT=5~9V VOUT=10~18V  ELECTRICAL CHARACTERISTICS (0°C
