79D05G-TN3-R

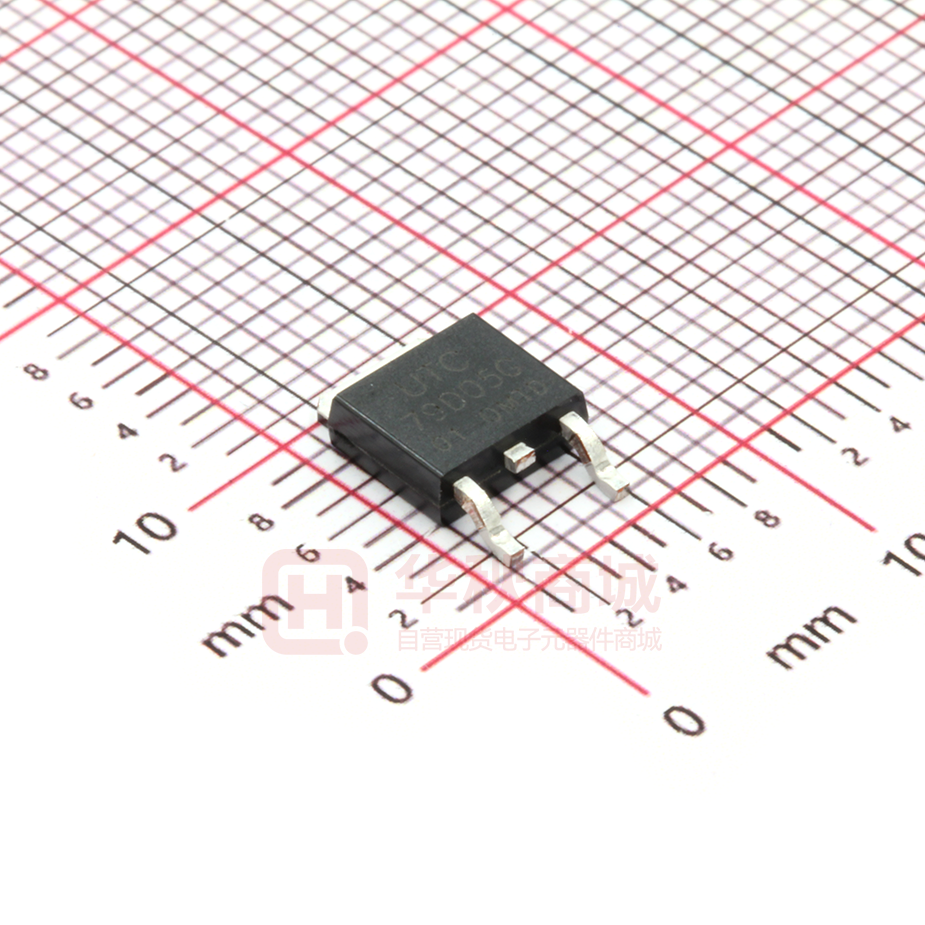

UNISONIC TECHNOLOGIES CO., LTD 79DXX LINEAR INTEGRATED CIRCUIT 3 TERMINAL 0.5A NEGATIVE VOLTAGE REGULATOR  DESCRIPTION The UTC 79DXX series of three-terminal negative regulators are available in TO-251 and TO-252 packages and with several fixed output voltage, making them useful in a wide range of application. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible.  FEATURES * Output current up to 0.5A * -5V, -6V, -8V, -12V, -15V, -18V, -24V output voltage available * Thermal overload protection * Short circuit protection  ORDERING INFORMATION Note: Ordering Number Lead Free Halogen Free 79DXXL-TM3-T 79DXXG-TM3-T 79DXXL-TN3-T 79DXXG-TN3-T 79DXXL-TN3-R 79DXXG-TN3-R 1. xx: output voltage, refer to Marking Information 2. Pin Code: I: Input G: GND O: Output www.unisonic.com.tw Copyright © 2013 Unisonic Technologies Co., Ltd Package TO-251 TO-252 TO-252 Pin Assignment 1 2 3 G I O G I O G I O Packing Tube Tube Tape Reel 1 of 6 QW-R101-012.F 79DXX  MARKING INFORMATION PACKAGE TO-251 TO-252  LINEAR INTEGRATED CIRCUIT VOLTAGE CODE MARKING 05 : -5V 06 : -6V 08 : -8V 09: -9V 12 : -12V 15 : -15V 18 : -18V 24 : -24V BLOCK DIAGRAM GND R1 R2 OUTPUT Voltage reference Protection circuitry RSC UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw INPUT 2 of 6 QW-R101-012.F 79DXX  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS (TA=25C) PARAMETER SYMBOL RATINGS UNIT VOUT= -5 ~ -18V -35 V Input Voltage VIN VOUT= -20 ~ -24V -40 V -40 ~ +85 Operating Temperature TOPR C Storage Temperature TSTG -65 ~ +150 C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  THERMAL DATA PARAMETER Thermal Resistance Junction-Air Thermal Resistance Junction-Cases  SYMBOL θJA θJC RATINGS 65 5 UNIT C/W C/W ELECTRICAL CHARACTERISTICS (0
