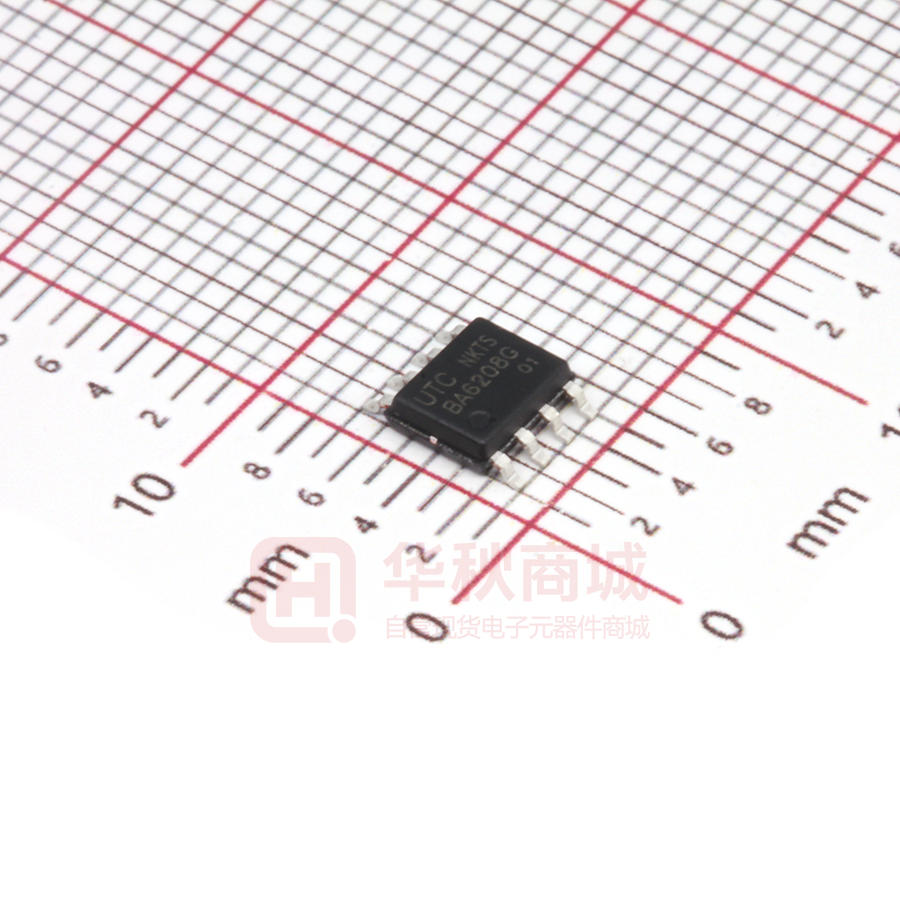

BA6208G-S08-R

UNISONIC TECHNOLOGIES CO., LTD BA6208 LINEAR INTEGRATED CIRCUIT REVERSIBLE MOTOR DRIVER  DESCRIPTION DIP-8 The UTC BA6208 is designed for driving reversible motor use, it contain a logic section to controls forward and reverse rotations as well as forced stop, and an output power section is able to supply an output current of up to 100mA (typical) according to the logic control. The IC allow control of reversible motors in cassette players and other electrical equipment by using TTL-level logic signals.  SIP-9 FEATURES * Recommended operating supply voltage range from 4.5V to15.0V. * Built-in motor driving power transistors(typ.100mA). * Brake is applied when stopping the motor (when Ain and Bin are both HIGH level). * Very low standby circuit current(when Ain and Bin are both LOW level. * Built-in diode to absorb surge currents. * Direct control with the TTL logic.  ORDERING INFORMATION Ordering Number Lead Free BA6208L-D08-T -  SOP-8 Halogen Free BA6208G-D08-T BA6208G-G09-T BA6208G-S08-R Package Packing DIP-8 SIP-9 SOP-8 Tube Tube Tape Reel MARKING DIP-8 www.unisonic.com.tw Copyright © 2015 Unisonic Technologies Co., Ltd SIP-9 SOP-8 1 of 4 QW-R109-004.E BA6208  LINEAR INTEGRATED CIRCUIT PIN CONFIGURATION For SIP-9 Package 1 2 3 4 5 NC BIN AIN NC GND 6 7 8 9 VCC BOUT AOUT NC For SOP-8/DIP-8 Package VCC 1 2 BOUT BOUT 8 AIN 7 GND GND 3 6 NC AOUT 4 5 BIN UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 4 QW-R109-004.E BA6208  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATING (TA=25C, unless otherwise specified) PARAMETER Power Supply Voltage Maximum Output Current RATINGS UNIT 18 V 500 mA DIP-8 500 mW Power Dissipation PD SIP-9 700 mW SOP-8 450 mW Operating Temperature TOPR -20 ~ +60 C Storage Temperature TSTG -55 ~ +125 C Note Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  SYMBOL VCC IOUT(MAX) INPUT TRUTH TABLE 3pin (Ain) 2pin (Bin) H L L H H H L L Note: HIGH level input is 2.0V or more. LOW level input is 0.8V or less.  8pin (Aout) H L L OPEN 7pin (Bout) L H L OPEN ELECTRICAL CHARACTERISTICS (TA=25C, VCC=9V, unless otherwise specified) PARAMETER Output Saturation Voltage SYMBOL TEST CONDITIONS MIN TYP MAX UNIT VCE IOUT=100mA 1.6 V High VIH 2.0 V Input Level Voltage 0.8 V Low VIL Output Current IOUT 200 mA Standby Supply Current IST Ain=Low, Bin= Low 0.4 mA Input High Level Current IIH VIH =4.5V 400 μA Note: A diode that absorbs at least 500mA is built in to give protection against surge currents with a pulse width of 10 ms and a duty ratio of 10% or less. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 4 QW-R109-004.E BA6208  LINEAR INTEGRATED CIRCUIT TEST CIRCUIT Note: ( ): pin number of 8 pins package. UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 4 of 4 QW-R109-004.E
