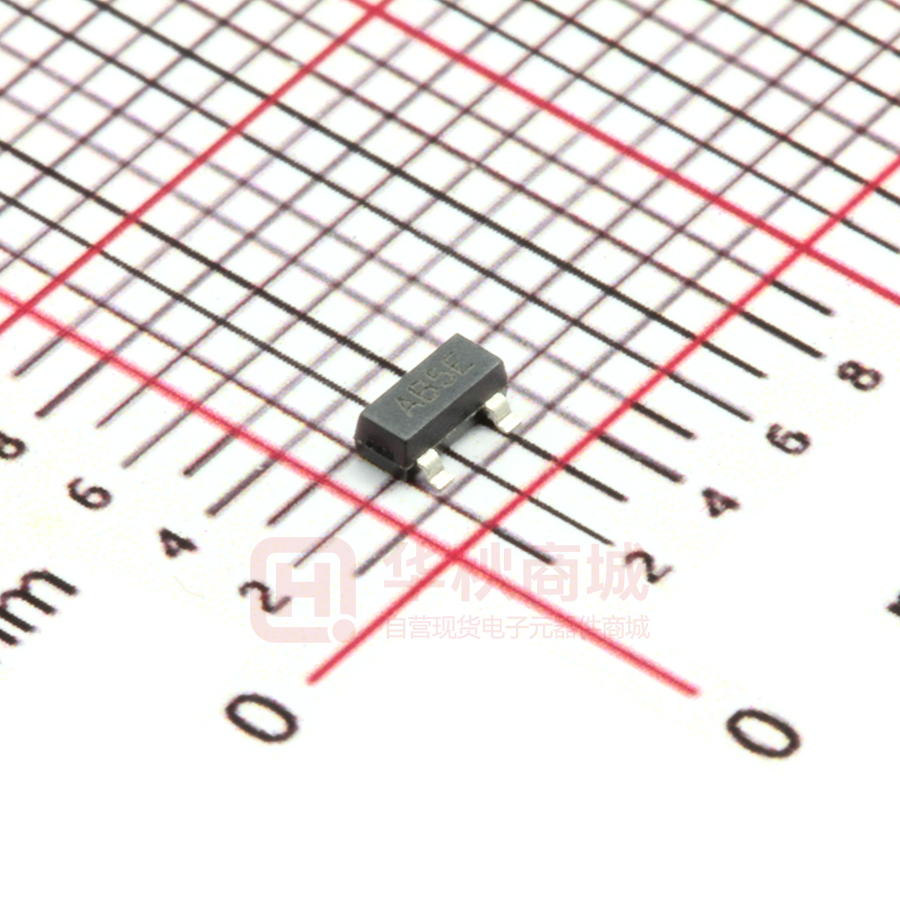

DTA115EL-AE3-R

UNISONIC TECHNOLOGIES CO., LTD DTA115E PNP EPITAXIAL SILICON TRANSISTOR PNP DIGITAL TRANSISTOR (BUILT-IN RESISTORS) „ EQUIVALENT CIRCUIT OUT R1 IN R2 na l.c * Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see the equivalent circuit). * The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input They also have the advantage of almost completely eliminating parasitic effects. * Only the on / off conditions need to be set for operation, making device design easy. .tr FEATURES om „ GND (+) OUT ig IN „ w .s GND (+) ORDERING INFORMATION Package SOT-23 SOT-323 Pin Assignment 1 2 3 G I O G I O Packing Tape Reel Tape Reel w Ordering Number Lead Free Halogen Free DTA115EL-AE3-R DTA115EG-AE3-R DTA115EL-AL3-R DTA115EG-AL3-R Note: Pin Assignment: G: GND I: IN O: OUT MARKING w „ AB5E E: Lead Free E: Halogen Free www.unisonic.com.tw Copyright © 2011 Unisonic Technologies Co., Ltd 1 of 2 QW-R220-016,Ba DTA115E „ PNP EPITAXIAL SILICON TRANSISTOR ABSOLUATE MAXIUM RATINGS (TA= 25℃, unless otherwise specified.) SYMBOL RATINGS UNIT VCC -50 V VIN -40~+10 V IOUT -20 Output Current mA IC(MAX) -100 Power Dissipation PD 200 mW ℃ Junction Temperature TJ 150 ℃ Storage Temperature TSTG -40 ~ +150 Note Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied. ELECTRICAL CHARACTERISTICS (TA= 25℃, unless otherwise specified.) TEST CONDITIONS VCC= -5V, IOUT=-100μA VOUT= -0.3V,IOUT= -1mA IOUT= -5mA, IIN= -0.25mA VIN= -5V VCC= -50V , VIN=0V VOUT= -5V,IOUT= -5mA MIN TYP MAX -0.5 UNIT -0.1 -0.3 -0.15 -0.5 V mA μA 100 1 250 130 1.2 kΩ om SYMBOL VIN(OFF) Input Voltage VIN(ON) Output Voltage VOUT(ON) Input Current IIN Output Current IOUT(OFF) DC Current Gain GI Input Resistance R1 Resistance Ratio R2/R1 Transition Frequency fT Note: Transition frequency of the device VCE= -10 V, IE= 5mA, f=100MHz (Note) -3 82 70 0.8 V MHz w w w .s ig PARAMETER na l.c „ .tr PARAMETER Supply Voltage Input Voltage UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 2 QW-R220-016,Ba
