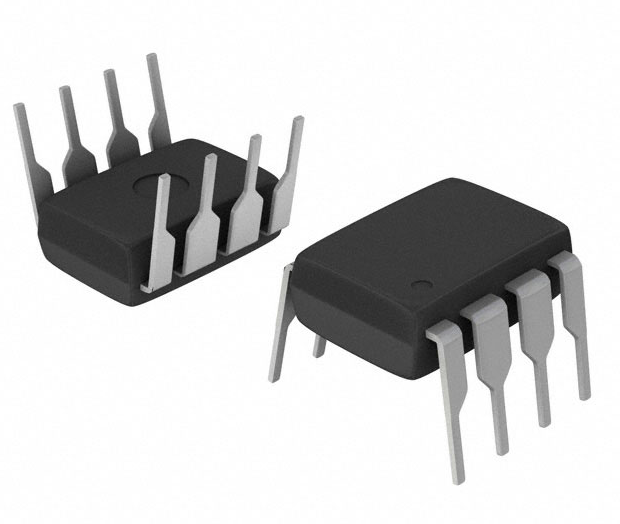

LM393L-D08-T

UNISONIC TECHNOLOGIES CO., LTD LM393 LINEAR INTEGRATED CIRCUIT DUAL DIFFERENTIAL COMPARATOR  DESCRIPTION The UTC LM393 consists of two independent voltage comparators, designed specifically to operate from a single power supply over a wide voltage range.  FEATURES * Single or dual supply operation. * Wide operating supply range (VCC=2V ~ 36V or ±1 ~ ±18V) * Input common-mode voltage includes ground. * Low supply current drain ICC=0.8mA (Typical). * Low input bias current IBIAS=25nA (Typical). * Output compatible with TTL, DTL, and CMOS logic system.  ORDERING INFORMATION Ordering Number Lead Free LM393L-D08-T - Halogen-Free LM393G-D08-T LM393G-S08-R LM393G-P08-R LM393G-SM1-R LM393G-K08-2020-R www.unisonic.com.tw Copyright © 2014 Unisonic Technologies Co., Ltd Package Packing DIP-8 SOP-8 TSSOP-8 MSOP-8 DFN-8(2×2) Tube Tape Reel Tape Reel Tape Reel Tape Reel 1 of 5 QW-R104-002.Q LM393   LINEAR INTEGRATED CIRCUIT MARKING DIP-8 SOP-8 / MSOP-8 TSSOP-8 DFN-8(2×2) PIN DESCRIPTION OUT 1 IN 1(-) 1 8 2 7 OUT 2 IN 1(+) 3 6 IN 2(-) GND 4 5 IN 2(+) DIP-8 / SOP-8 / MSOP-8 / TSSOP-8  VCC OUT 1 1 IN 1(-) 2 IN 1(+) 3 GND 4 Top View 8 VCC 7 OUT 2 6 IN 2(-) 5 IN 2(+) DFN-8(2×2) BLOCK DIAGRAM UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 5 QW-R104-002.Q LM393  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS PARAMETER Supply Voltage Differential Input Voltage Input Voltage RATINGS UNIT ±18 or 36 V ±36 V -0.3 ~ +36 V DIP-8 600 mW SOP-8 420 mW Power Dissipation TSSOP-8 PD 350 mW MSOP-8 300 mW DFN-8(2×2) 830 mW Operating Temperature Range TOPR -20 ~ +85 C Storage Temperature Range TSTG -65 ~ +150 C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  SYMBOL VCC VI(DIFF) VIN ELECTRICAL CHARACTERISTICS (VCC=5.0V, TA=25C, All voltage referenced to GND unless otherwise specified) PARAMETER SYMBOL TEST CONDITIONS VCM=0V toVCC-1.5V Input Offset Voltage VI(OFF) VO(P)=1.4V, RS=0Ω Output Saturation Voltage VSAT VI(-)>1V, VI(+)=0V, ISINK=4mA Input Common Mode Voltage VI(CM) VCC=30V V Large Signal Voltage Gain GV CC=15V, RL≧15KΩ RL=, VCC=30V Power Supply Current ICC RL= Input Offset Current II(OFF) Input Bias Current II(BIAS) Output Sink Current IO(SINK) VI(-)>1V, VI(+)=0V, Vo(p)
