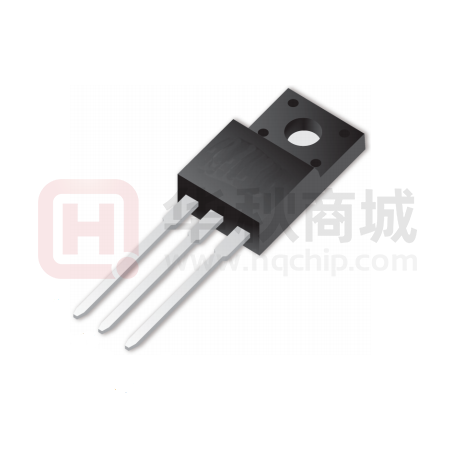

LM7805L-TF3-T

UNISONIC TECHNOLOGIES CO., LTD LM78XX LINEAR INTEGRATED CIRCUIT 3-TERMINAL 1A POSITIVE VOLTAGE REGULATOR  1 DESCRIPTION 1 The UTC LM78XX family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 1 A.  TO-220 TO-220F FEATURES 1 * Output current up to 1A * Fixed output voltage of 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V and 24V available * Thermal overload shutdown protection * Output transistor SOA protection TO-262 1 TO-92  ORDERING INFORMATION Ordering Number Lead Free Halogen Free LM78XXL-TA3-T LM78XXG-TA3-T LM78XXL-TF3-T LM78XXG-TF3-T LM78XXL-T2Q-T LM78XXG-T2Q-T LM78XXL-T2Q-R LM78XXG-T2Q-R LM78XXL-T92-B LM78XXG-T92-B LM78XXL-T92-K LM78XXG-T92-K Note: Pin Assignment: O: Output G: GND I: Input www.unisonic.com.tw Copyright © 2014 Unisonic Technologies Co., Ltd Package TO-220 TO-220F TO-262 TO-262 TO-92 TO-92 Pin Assignment 1 2 3 I G O I G O I G O I G O I G O I G O Packing Tube Tube Tube Tape Reel Tape Box Bulk 1 of 13 QW-R101-006.U LM78XX  LINEAR INTEGRATED CIRCUIT MARKING INFORMATION PACKAGE TO-220 TO-220F TO-262 TO-92 VOLTAGE CODE 05: 06: 07: 08: 09: 10: 12: 15: 18: 24: MARKING 5.0 V 6.0 V 7.0 V 8.0 V 9.0 V 1.0 V 1.2 V 1.5 V 1.8 V 2.4 V UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 13 QW-R101-006.U LM78XX LINEAR INTEGRATED CIRCUIT  TEST CIRCUIT  APPLICATION CIRCUIT VIN 1 UTC LM78XX 3 VOUT 2 CI=0.33 μF CO=0.1 μF Note 1: To specify an output voltage, substitute voltage value for "XX". 2: Bypass capacitors are recommended for optimum stability and transient response and should be located as close as possible to the regulators. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 13 QW-R101-006.U LM78XX  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies unless otherwise specified) PARAMETER SYMBOL RATING UNIT 35 V Input voltage VIN 40 V Output Current IOUT 1 A Power Dissipation PD Internally Limited W Operating Junction Temperature TOPR -20 ~ +125 °C Storage Temperature TSTG -55 ~ +150 °C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied. VOUT=5~18V VOUT=24V  THERMAL DATA PARAMETER Junction to Ambient Junction to Case  SYMBOL TO-220/TO-220F TO-262 TO-92 TO-220/TO-262 TO-220F TO-92 θJA θJC RATING UNIT 65 °C/W 180 5 7.8 83 °C/W ELECTRICAL CHARACTERISTICS (IOUT=0.5A, TJ= 0°C~125°C, CI =0.33μF, CO=0.1μF, unless otherwise specified)(Note 1) For UTC LM7805 (VIN =10V) PARAMETER SYMBOL TEST CONDITIONS MIN 4.80 TJ =25°C, IOUT=5mA ~ 1.0A Output Voltage VOUT VIN =7.5V ~ 20V, 4.75 IOUT=5mA ~ 1.0A,PD≤15W Dropout Voltage VD TJ =25°C TJ =25°C,IOUT=5mA ~ 1.0A Load Regulation VOUT TJ =25°C,IOUT=0.25A ~ 0.75A VIN =7V ~ 25V, TJ =25°C Line regulation VOUT VIN =7.5V ~ 20V, TJ =25°C, IOUT=1.0A Quiescent Current IQ TJ =25°C, IOUT≤1.0A VIN =7.5V ~ 20V Quiescent Current Change IQ IOUT=5mA ~ 1.0A Output Noise Voltage eN 10Hz≤f≤100kHz Temperature Coefficient of Vo Vo/T IOUT=5mA Ripple Rejection RR VIN =8V ~ 18V,f=120Hz, TJ =25°C 62 Peak Output Current IPEAK TJ =25°C UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw TYP 5.0 MAX 5.20 UNIT V 5.25 V 2.0 50 25 50 50 8.0 1.0 0.5 40 -0.6 80 1.8 V mV mV mV mV mA mA mA μV mV/°C dB A 4 of 13 QW-R101-006.U LM78XX  LINEAR INTEGRATED CIRCUIT ELECTRICAL CHARACTERISTICS(Cont.) For UTC LM7806 (VIN =11V) PARAMETER SYMBOL Output Voltage VOUT Dropout Voltage VD Load Regulation VOUT Line regulation VOUT Quiescent Current IQ IQ Quiescent Current Change Output Noise Voltage Temperature Coefficient of Vo Ripple Rejection Peak Output Current eN Vo/T RR IPEAK For UTC LM7807 (VIN =13V) PARAMETER SYMBOL Output Voltage VOUT Dropout Voltage VD Load Regulation VOUT Line regulation VOUT Quiescent Current IQ IQ Quiescent Current Change Output Noise Voltage Temperature Coefficient of Vo Ripple Rejection Peak Output Current eN Vo/T RR IPEAK TEST CONDITIONS TJ =25°C, IOUT=5mA ~ 1.0A VIN =8.5V ~ 21V, IOUT=5mA ~ 1.0A, PD≤15W TJ =25°C TJ =25°C,IOUT=5mA ~ 1.0A TJ =25°C,IOUT=0.25A~ 0.75A VIN =8V ~ 25V, TJ =25°C VIN =8.5V ~ 21V, TJ =25°C,IOUT=1.0A TJ =25°C, IOUT≤1.0A VIN =8.5V ~ 21V IOUT=5mA ~ 1.0A 10Hz≤f≤100kHz IOUT=5mA VIN =9V ~ 19V,f=120Hz, TJ =25°C TJ =25°C TEST CONDITIONS TJ =25°C, IOUT=5mA - 1.0A VIN =9.5V ~ 22V, IOUT=5mA ~ 1.0A, PD≤15W TJ =25°C TJ =25°C,IOUT=5mA ~ 1.0A TJ =25°C,IOUT=0.25A ~ 0.75A VIN =9V ~ 25V, TJ =25°C VIN =9.5V ~ 22V, TJ =25°C,IOUT=1.0A TJ =25°C, IOUT≤1.0A VIN =9.5V ~ 22V IOUT=5mA ~ 1.0A 10Hz≤f≤100kHz IOUT=5mA VIN =10V ~ 20V,f=120Hz, TJ =25°C TJ =25°C UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw MIN 5.76 TYP 6.0 5.70 MAX 6.24 UNIT V 6.30 V 2.0 60 30 60 60 8.0 1.0 0.5 59 MIN 6.72 45 -0.7 75 1.8 TYP 7.0 6.65 MAX 7.28 UNIT V 7.35 V 2.0 70 35 70 70 8.0 1.0 0.5 59 50 -0.8 75 1.7 V mV mV mV mV mA mA mA μV mV/°C dB A V mV mV mV mV mA mA mA μV mV/°C dB A 5 of 13 QW-R101-006.U LM78XX  LINEAR INTEGRATED CIRCUIT ELECTRICAL CHARACTERISTICS(Cont.) For UTC LM7808 (VIN =14V) PARAMETER SYMBOL Output Voltage VOUT Dropout Voltage VD Load Regulation VOUT Line regulation VOUT Quiescent Current IQ IQ Quiescent Current Change Output Noise Voltage Temperature Coefficient of Vo eN Vo/T Ripple Rejection RR Peak Output Current IPEAK For UTC LM7809 (VIN =15V) PARAMETER SYMBOL Output Voltage VOUT Dropout Voltage VD Load Regulation VOUT Line regulation VOUT Quiescent Current IQ IQ Quiescent Current Change Output Noise Voltage Temperature Coefficient of Vo Ripple Rejection Peak Output Current eN Vo/T RR IPEAK TEST CONDITIONS TJ =25°C, IOUT=5mA~ 1.0A VIN =10.5V ~ 23V, IOUT=5mA ~ 1.0A, PD≤15W TJ =25°C TJ =25°C,IOUT=5mA ~ 1.0A TJ =25°C,IOUT=0.25A ~ 0.75A VIN =10.5V ~ 25V, TJ =25°C VIN =10.5V ~ 23V, TJ =25°C,IOUT=1.0A TJ =25°C, IOUT≤1.0A VIN =10.5V ~ 23V IOUT=5mA ~ 1.0A 10Hz≤f≤100kHz IOUT=5mA VIN =11.5V ~ 21.5V, f=120Hz, TJ =25°C TJ =25°C MIN 7.68 TEST CONDITIONS TJ =25°C, IOUT=5mA ~ 1.0A VIN =11.5V ~ 24V, IOUT=5mA ~ 1.0A,PD≤15W TJ =25°C TJ =25°C,IOUT=5mA ~ 1.0A TJ =25°C,IOUT=0.25A ~ 0.75A VIN =11.5V ~ 25 V, TJ =25°C VIN =11.5V ~ 24V, TJ =25°C, IOUT=1.0A TJ =25°C, IOUT≤1.0A VIN =11.5V ~ 24V IOUT=5mA ~ 1.0A 10Hz≤f≤100kHz IOUT=5mA VIN =12.5V ~ 22.5V,f=120Hz, TJ =25°C TJ =25°C MIN 8.64 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw TYP 8.0 7.60 MAX 8.32 UNIT V 8.40 V 2.0 58 -0.9 V mV mV mV mV mA mA mA μV mV/°C 72 dB 1.8 A 80 40 80 80 8.0 1.0 0.5 56 TYP 9.0 8.55 MAX 9.36 UNIT V 9.45 V 2.0 90 45 90 90 8.0 1.0 0.5 56 58 -1.1 72 1.8 V mV mV mV mV mA mA mA μV mV/°C dB A 6 of 13 QW-R101-006.U LM78XX  LINEAR INTEGRATED CIRCUIT ELECTRICAL CHARACTERISTICS(Cont.) For UTC LM7810 (VIN =16V) PARAMETER SYMBOL Output Voltage VOUT Dropout Voltage VD Load Regulation VOUT Line regulation VOUT Quiescent Current IQ IQ Quiescent Current Change Output Noise Voltage Temperature coefficient of Vo Ripple Rejection Peak Output Current eN Vo/T RR IPEAK For UTC LM7812 (VIN =19V) PARAMETER SYMBOL Output Voltage VOUT Dropout Voltage VD Load Regulation VOUT Line regulation VOUT Quiescent Current IQ IQ Quiescent Current Change Output Noise Voltage Temperature Coefficient of Vo Ripple Rejection Peak Output Current eN Vo/T RR IPEAK TEST CONDITIONS TJ =25°C, IOUT=5mA ~ 1.0A VIN =12.5V ~ 25V, IOUT=5mA ~ 1.0A,PD≤15W TJ =25°C TJ =25°C,IOUT=5mA - 1.0A TJ =25°C,IOUT=0.25A - 0.75A VIN =13V ~ 25V, TJ =25°C VIN =13V ~ 25V, TJ =25°C,IOUT=1.0A TJ =25°C, IOUT≤1.0A VIN =12.6V ~ 25V IOUT=5mA - 1.0A 10Hz≤f≤100kHz IOUT=5mA VIN =13V ~ 23V,f=120Hz, TJ =25°C TJ =25°C TYP 10.0 9.50 MAX 10.40 10.50 2.0 100 50 100 100 8.0 1.0 0.5 56 TEST CONDITIONS MIN 11.52 TJ =25°C, IOUT=5mA ~ 1.0A VIN =14.5V ~ 27V, 11.40 IOUT=5mA ~ 1.0A,PD≤15W TJ =25°C TJ =25°C,IOUT=5mA ~ 1.0A TJ =25°C,IOUT=0.25A ~ 0.75A VIN =14.5V ~ 30V, TJ =25°C VIN =14.6V ~ 27V, TJ =25°C, IOUT=1.0A TJ =25°C, IOUT≤1.0A VIN =14.5V ~ 30V IOUT=5mA ~ 1.0A 10Hz≤f≤100kHz IOUT=5mA VIN =15V - 25V,f=120Hz, TJ =25°C 55 TJ =25°C UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw MIN 9.60 58 -1.1 72 1.8 TYP 12.0 V mV mV mV mV mA mA mA μV mV/°C dB A MAX 12.48 UNIT V 12.60 V 2.0 120 60 120 120 8.0 1.0 0.5 75 -1.5 72 1.8 UNIT V V V mV mV mV mV mA mA mA μV mV/°C dB A 7 of 13 QW-R101-006.U LM78XX  LINEAR INTEGRATED CIRCUIT ELECTRICAL CHARACTERISTICS(Cont.) For UTC LM7815 (VIN =23V) PARAMETER SYMBOL Output Voltage VOUT Dropout Voltage VD Load Regulation VOUT Line regulation VOUT Quiescent Current IQ IQ Quiescent Current Change Output Noise Voltage Temperature Coefficient of Vo Ripple Rejection Peak Output Current eN Vo/T RR IPEAK For UTC LM7818 (VIN =27V) PARAMETER SYMBOL Output Voltage VOUT Dropout Voltage VD Load Regulation VOUT Line regulation VOUT Quiescent Current IQ IQ Quiescent Current Change Output Noise Voltage Temperature Coefficient of Vo Ripple Rejection Peak Output Current eN Vo/T RR IPEAK TEST CONDITIONS MIN 14.40 TJ =25°C, IOUT=5mA ~ 1.0A VIN =17.5V ~ 30V, 14.25 IOUT=5mA ~ 1.0A,PD≤15W TJ =25°C TJ =25°C,IOUT=5mA ~ 1.0A TJ =25°C,IOUT=0.25A ~ 0.75A VIN =18.5V ~ 30V, TJ =25°C VIN =17.7V ~ 30V, TJ =25°C, IOUT =1.0A TJ =25°C, IOUT≤1.0A VIN =17.5V ~ 30V IOUT=5mA ~ 1.0A 10Hz≤f≤100kHz IOUT=5mA VIN =18.5V ~ 28.5V,f=120Hz, TJ =25°C 54 TJ =25°C TYP 15.0 TEST CONDITIONS TJ =25°C, IOUT=5mA ~ 1.0A VIN =21V ~ 33V, IOUT=5mA ~ 1.0A, PD≤15W TJ =25°C TJ =25°C,IOUT=5mA ~ 1.0A TJ =25°C,IOUT=0.25A ~ 0.75A VIN =21V ~ 33V, TJ =25°C VIN =21V ~ 33V, TJ =25°C, IOUT =1.0A TJ =25°C, IOUT≤1.0A VIN =21.5V ~ 33V IOUT=5mA ~ 1.0A 10Hz≤f≤100kHz IOUT=5mA VIN =22V ~ 32V,f=120Hz, TJ =25°C TJ =25°C TYP 18.0 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw MIN 17.28 MAX 15.60 UNIT V 15.75 V 2.0 150 75 150 150 8.0 1.0 0.5 90 -1.8 70 1.8 17.10 MAX 18.72 UNIT V 18.90 V 180 90 180 V mV mV mV 180 mV 8.0 1.0 0.5 mA mA mA μV mV/°C dB A 2.0 53 110 -2.2 69 1.8 V mV mV mV mV mA mA mA μV mV/C dB A 8 of 13 QW-R101-006.U LM78XX  LINEAR INTEGRATED CIRCUIT ELECTRICAL CHARACTERISTICS(Cont.) For UTC LM7824 (VIN =33V) PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT 23.04 24.0 24.96 V TJ =25°C, IOUT=5mA ~ 1.0A Output Voltage VOUT VIN =27V ~ 38V, 22.80 25.20 V IOUT=5mA ~ 1.0A, ,PD≤15W Dropout Voltage VD TJ =25°C 2.0 V 240 mV TJ =25°C,IOUT=5mA ~ 1.0A Load Regulation VOUT TJ =25C,IOUT=0.25A ~ 0.75A 120 mV 240 mV VIN =27V ~ 38V, TJ =25°C Line regulation VOUT VIN =27V ~ 38V, TJ =25°C,I OUT=1.0A 240 mV Quiescent Current IQ TJ =25°C, IOUT≤1.0A 8.0 mA VIN =28V ~ 38V 1.0 mA Quiescent Current Change IQ IOUT=5mA ~ 1.0A 0.5 mA Output Noise Voltage eN 10Hz≤f≤100kHz 170 μV Temperature Coefficient of Vo Vo/T IOUT=5mA -2.8 mV/°C Ripple Rejection RR VIN =28V ~ 38V, f=120Hz, TJ =25°C 50 66 dB Peak Output Current IPEAK TJ =25°C 1.8 A Notes: 1.The Maximum steady state usable output current are dependent on input voltage, heat sinking, lead length of the package and copper pattern of PCB. The data above represents pulse test conditions with junction temperatures specified at the initiation of test. 2. Power dissipation
