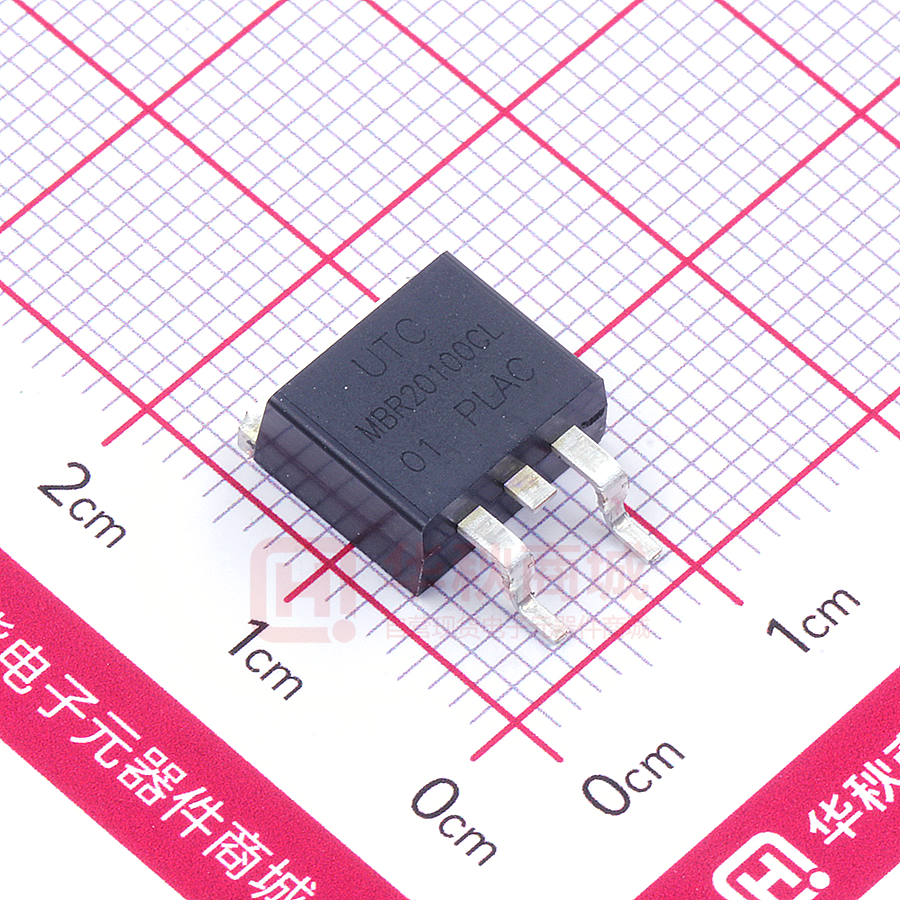

MBR20100CL-TQ2-R

UNISONIC TECHNOLOGIES CO., LTD MBR20100C DIODE SCHOTTKY BARRIER RECTIFIER  FEATURES * 20 Amps Total (10 Amps Per Diode Leg) * Guard Ring for Transient Protection * Low Forward Voltage Drop * High Surge Capability * Low Power Loss/High Efficiency  SYMBOL  ORDERING INFORMATION Ordering Number Lead Free Halogen Free MBR20100CL-TA3-T MBR20100CG-TA3-T MBR20100CL-TF3-T MBR20100CG-TF3-T MBR20100CL-TF1-T MBR20100CG-TF1-T MBR20100CL-TF2-T MBR20100CG-TF2-T MBR20100CL-TQ2-T MBR20100CG-TQ2-T MBR20100CL-TQ2-R MBR20100CG-TQ2-R Note: Pin Assignment: A: Anode K: Cathode MBR20100CL-TA3-T TO-220 TO-220F TO-220F1 TO-220F2 TO-263 TO-263 Pin Assignment 1 2 3 A K A A K A A K A A K A A K A A K A Packing Tube Tube Tube Tube Tube Tape Reel (1) T: Tube, R: Tape Reel (1)Packing Type (2)Package Type (3)Green Package  Package (2) TA3: TO-220, TF3: TO-220F, TF1: TO-220F1 TF2: TO-220F2, TQ2: TO-263 (3) L: Lead Free, G: Halogen Free and Lead Free MARKING www.unisonic.com.tw Copyright © 2015 Unisonic Technologies Co., Ltd 1 of 4 QW-R601-016.H MBR20100C  DIODE ABSOLUTE MAXIMUM RATINGS (TA=25°C, unless otherwise specified) PARAMETER Maximum Repetitive Peak Reverse Voltage Maximum DC Blocking Voltage Working Peak Reverse Voltage Maximum PMS Reverse Voltage Average Forward Rectified Per Leg Output Current Total Non-Repetitive Peak Forward Surge Current 8.3ms Single Half-Sine-Wave Junction Capacitance (Note 4) Operating Temperature Storage Temperature  SYMBOL VRRM VR VRWM VR(RMS) UNIT V V V V A A IFSM 150 A CJ TJ TSTG 1000 -55 ~ +150 -55 ~ +150 pF °C °C SYMBOL θJA RATINGS 55 2 UNIT °С/W °С/W 2.5 °С/W IO THERMAL DATA (Pre Diode) PARAMETER Junction to Ambient Junction to Case  RATINGS 100 100 100 70 10 20 TO-220/TO-263 TO-220F/TO-220F1 TO-220F2 θJC ELECTRICAL CHARACTERISTICS PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT IF=10A, TC=25°C 0.85 Instantaneous Forward Voltage Drop (Note 3) VF V IF=10A, TC=125°C 0.75 Rated DC Voltage, TC=25°C 0.15 Instantaneous Reverse Current (Note 3) IR mA Rated DC Voltage, TC=125°C 0.5 10 Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied. 2. 2.0μs Pulse Width, f = 1.0KHz. 3. Pulse Test: Pulse Width=300µs, Duty Cycle ≤ 2.0%. 4. Applied VR = 4.0V and f = 1.0MHz. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 4 QW-R601-016.H MBR20100C  DIODE TYPICAL CHARACTERISTICS Typical Reverse Characteristics 1E-2 150°C 1E-3 1E-4 125°C 1E-5 1E-6 1E-7 1E-8 25°C 0 20 60 80 100 40 Reverse Voltage, VR(V) UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 4 QW-R601-016.H MBR20100C DIODE UTC assum es no responsibility for equipm ent failures that result from using products at v alues that exceed, ev en m om entarily, rated v alues (such as m axim um ratings, operating condition ranges, or other param eters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or system s where m alfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The inform ation presented in this docum ent does not form part of any quotation or contract, is believ ed to be accurate and reliable and m ay be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 4 of 4 QW-R601-016.H
