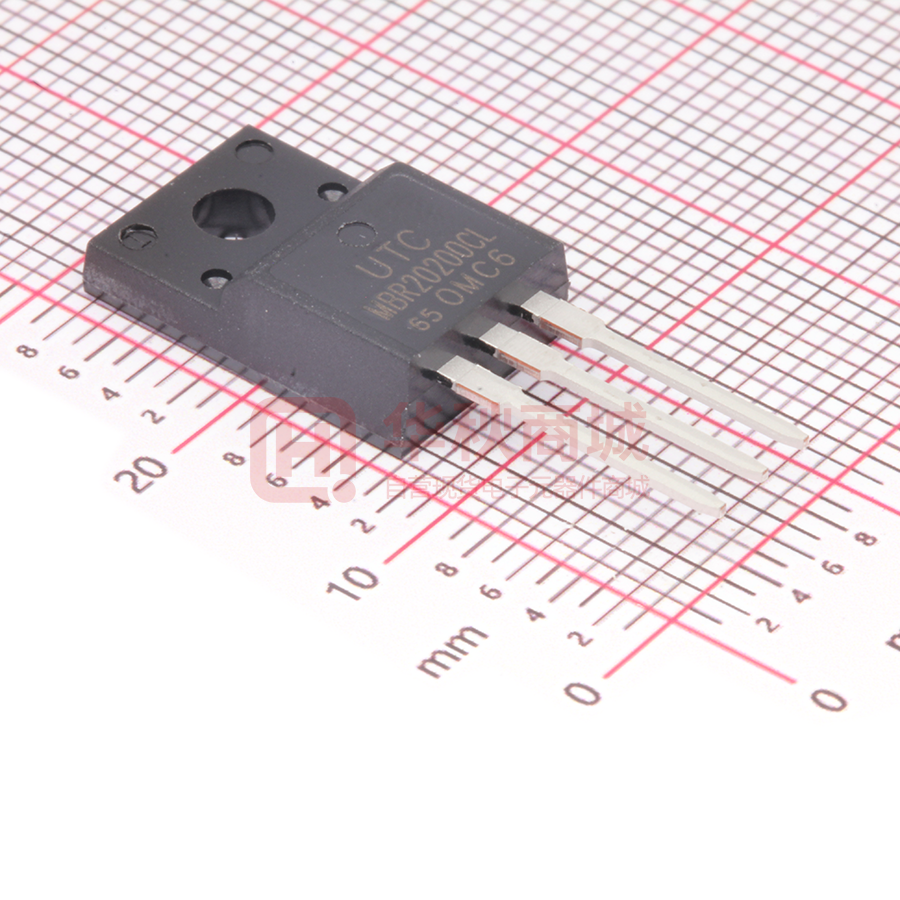

MBR20200CL-TF1-T

UNISONIC TECHNOLOGIES CO., LTD MBR20200C DIODE SCHOTTKY BARRIER RECTIFIERS  DESCRIPTION The UTC MBR20200C is a Schottky Barrier Rectifier with high efficiency, low power dissipation and high current capacity. It can be applied in low voltage, high frequency inverters, polarity protection and free wheeling applications.  FEATURES * High surge capability * High efficiency, low power dissipation, high current capability, low forward voltage drop  SYMBOL 1 2 (CASE) 3  ORDERING INFORMATION Ordering Number Lead Free Halogen Free MBR20200CL-TA3-T MBR20200CG-TA3-T MBR20200CL-TF3-T MBR20200CG-TF3-T MBR20200CL-TF1-T MBR20200CG-TF1-T MBR20200CL-TN3-R MBR20200CG-TN3-R MBR20200CL-T3P-T MBR20200CG-T3P-T MBR20200CL-TQ2-T MBR20200CG-TQ2-T MBR20200CL-TQ2-R MBR20200CG-TQ2-R Note: Pin Assignment: A: Anode K: Cathode  Package TO-220 TO-220F TO-220F1 TO-252 TO-3P TO-263 TO-263 1 A A A A A A A Pin Assignment 2 K K K K K K K 3 A A A A A A A Packing Tube Tube Tube Tape Reel Tube Tube Tape Reel MARKING www.unisonic.com.tw Copyright © 2016 Unisonic Technologies Co., Ltd 1 of 3 QW-R601-031.H MBR20200C  DIODE ABSOLUTE MAXIMUM RATINGS (TA=25°C, unless otherwise specified) PARAMETER Recurrent Peak Reverse Voltage RMS Voltage DC Blocking Voltage Average Forward Rectified Output Current Per Leg (TC=105°C) Total DC Reverse Current (TC=25°C) Peak Repetitive Forward Current (Rated VR, Square Wave, 20 kHz) (TC=135°C) Non-Repetitive Peak Forward Surge Current 8.3ms Single Half-Sine-Wave Peak Repetitive Reverse Surge Current (Note 3) Voltage Rate of Change (Rated VR) Junction Capacitance (Note 4) Operating Junction Temperature Storage Temperature  UNIT V V V IR RATINGS 200 140 200 10 20 1.0 IFRM 20 A IFSM 150 A IRRM dv/dt CJ TJ TSTG 1.0 10000 320 +150 -55 ~ +150 A V/µs pF °C °C SYMBOL RATINGS 2 4 6 3 1.5 UNIT °C/W °C/W °C/W °C/W °C/W IO A mA THERMAL CHARACTERISTICS (PER LEG) PARAMETER Typical Thermal Resistance  SYMBOL VRRM VR(RMS) VR TO-220 TO-220F/TO-220F1 TO-252 TO-263 TO-3P θJC ELECTRICAL CHARACTERISTICS (Note 3) PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT IF=10A, TC=25°C 0.99 IF=10A, TC=125°C 0.87 V Instantaneous Forward Voltage Drop VF IF=20A, TC=25°C 1.23 1.10 IF=20A, TC=125°C Rated DC Voltage, TC=25°C 1.0 mA Instantaneous Reverse Current IR 50 Rated DC Voltage, TC=125°C Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied. 2. 2.0μs Pulse Width, f = 1.0KHz. 3. Pulse Test: Pulse Width=300µs, Duty Cycle ≤　 2.0%. 4. Applied VR = 4.0V and f = 1.0MHz. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 3 QW-R601-031.H MBR20200C  DIODE TYPICAL CHARACTERISTICS Peak Repetitive Reverse Voltage Reverse Current, IR (mA) 12 10 8 6 4 2 0 0 140 280 70 210 Peak Repetitive Reverse Voltage, VRRM (V) UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 3 QW-R601-031.H
