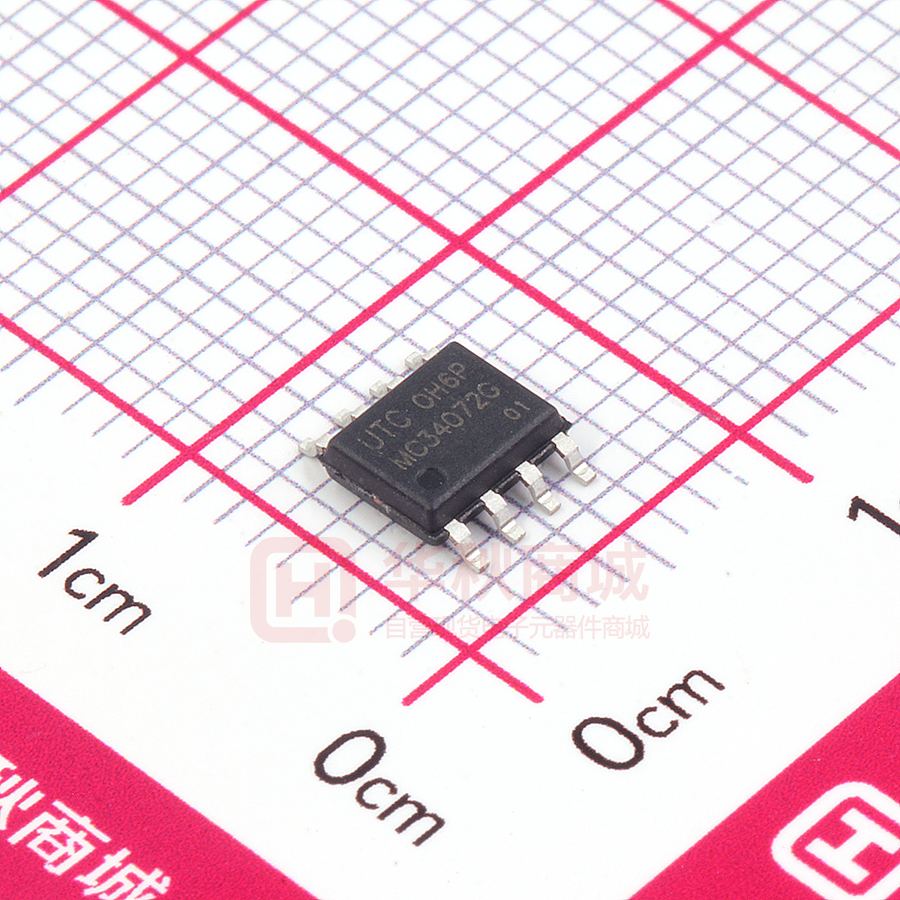

MC34072G-S08-R

UNISONIC TECHNOLOGIES CO., LTD MC34072 LINEAR INTEGRATED CIRCUIT HIGH SLEW RATE, WIDE BANDWIDTH , SINGLE SUPPLY OPERATIONAL AMPLIFIER  DIP-8 DESCRIPTION The UTC MC34072 offer 4.5MHz of gain bandwidth product, 13V/s slew rate and fast setting time without the use of JFET device technology. Although it can be operated from split supplies, it is particularly suited for single supply operation, since the common mode input voltage range includes ground potential (VEE). With A Darlington input stage, it exhibits high input resistance, low input offset voltage and high gain. The all NPN output stage, characterized by no deadband crossover distortion and large output voltage swing, provides high capacitance drive capability, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source/sink AC frequency response.  SOP-8 TSSOP-8 FEATURES * Wide bandwidth: 4.5 MHz * High slew rate: 13V/μs * Fast settling time:1.1μs to 0.1% * Wide single supply operation: 3.0V to 44V * Wide input common mode voltage range: Includes ground (VEE) * Low input offset voltage: 3.0mV maximum * Large output voltage swing: -14.7V to +14V (with +-15V supplies) * Large capacitance drive Capability: 0pF to 10,000 pF * Low total harmonic distortion: 0.02% * Excellent phase margin: 60 * Excellent gain margin: 12dB * Output short circuit protection  ORDERING INFORMATION Ordering Number Lead Free Plating MC34072L-D08-T MC34072L-S08-R MC34072L-P08-R Halogen Free MC34072G-D08-T MC34072G-S08-R MC34072G-P08-R www.unisonic.com.tw Copyright © 2014 Unisonic Technologies Co., Ltd Package Packing DIP-8 SOP-8 TSSOP-8 Tube Tape Reel Tape Reel 1 of 11 QW-R105-007.F MC34072  LINEAR INTEGRATED CIRCUIT MARKING INFORMATION PACKAGE MARKING SOP-8 DIP-8 TSSOP-8  PIN DESCRIPTION UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 11 QW-R105-007.F MC34072  LINEAR INTEGRATED CIRCUIT REPRESENTATIVE SCHEMATIC DIAGRAM UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 11 QW-R105-007.F MC34072  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS (TA = 25°C, unless otherwise specified) PARAMETER SYMBOL RATINGS UNIT Supply Voltage (from VEE to VCC) VS +44 or ±22 V Differential Input Voltage VI(DIFF) Note 1 V Input Voltage VIN Note 1 V Output Short Circuit Duration (Note 2) tSC Indefinite sec Junction Temperature TJ +150 °C Operating Temperature TOPR -20 ~ +85 °C Storage Temperature Range TSTG -40~ +150 °C Note: 1. Either or both input voltages should not exceed the magnitude of VCC or VEE. 2. Power dissipation must be considered to ensure maximum junction temperature (TJ) is not exceeded. 3. Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  ELECTRICAL CHARACTERISTICS (VCC=+15V, VEE=-15V, RL=connected to ground, unless otherwise specified) PARAMETER SYMBOL TEST CONDITIONS VCC=+15V,VEE=-15V,TA=+25C RS=100Ω, VCC=+5V,VEE=0V, TA=+25C Input Offset Voltage VI(OFF) VCM=0V, VCC=+15V,VEE=-15V,TA=0C to VOUT=0V 70C Average Temperature RS=10Ω,VCM=0V, VOUT =0V, Coefficient of Input Offset VIO/T Ta=0C to 70C Voltage TA=+25C Input Bias Current II(BIAS) VCM=0V, VOUT =0V TA=0C to 70C TA=+25C Input Offset Current II(OFF) VCM=0V, VOUT =0V TA=0C to 70C TA=+25C Input Common Mode Voltage VICR TA=0C to 70C TA=+25C Large Signal Voltage Gain GV VOUT =10V, RL=2.0kΩ TA=0C to 70C VCC=+5.0V,VEE=0V,RL=2.0kΩ, TA=+25C VCC=+15.0V,VEE=-15V, Output Voltage Swing VOH RL=10kΩ, Ta=+25C (VID=+-1.0V) VCC=+15.0V,VEE=-15V, RL=2.0kΩ, Ta=0C to 70C VCC=+5.0V,VEE=0V,RL=2.0kΩ, TA=+25C VCC=+15.0V,VEE=-15V, Output Voltage Swing VOL RL=10kΩ,TA=+25C (VID=+-1.0V) VCC=+15.0V,VEE=-15V, RL=2.0kΩ, TA=0C to 70C Source Output Short Circuit current ISC VI(DIFF)=1.0V,VOUT=0V, TA=25C Sink Common Mode Rejection CMR RS
