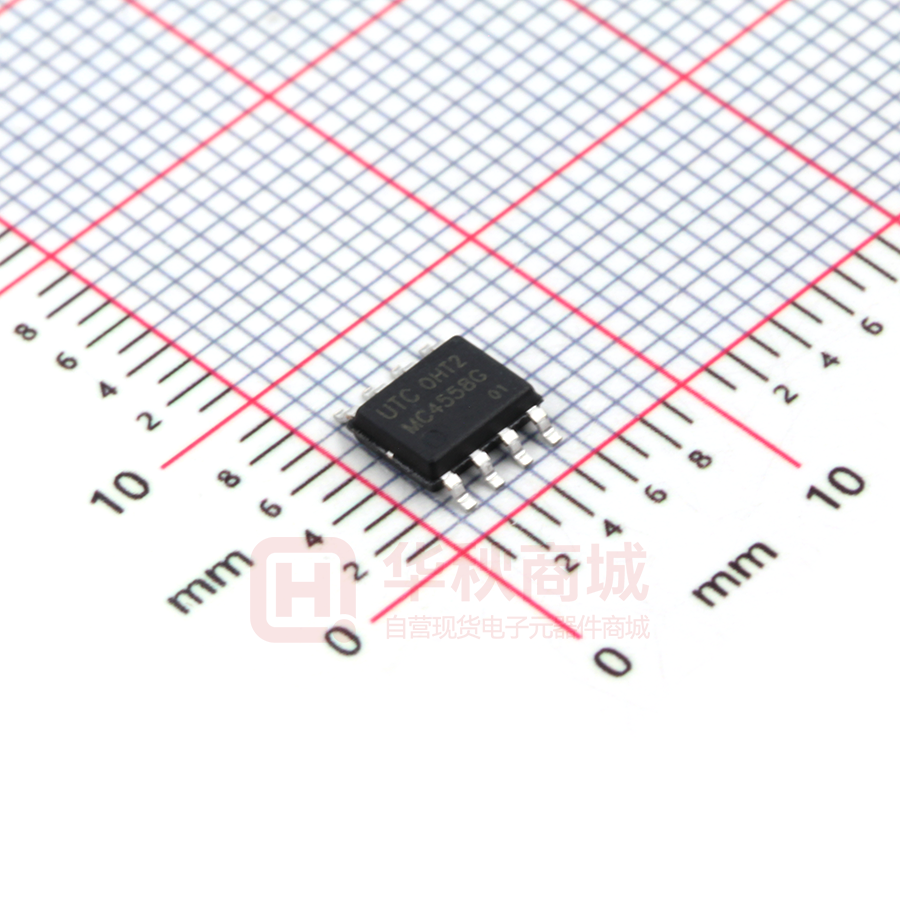

MC4558G-S08-R

UNISONIC TECHNOLOGIES CO., LTD MC4558 LINEAR INTEGRATED CIRCUIT DUAL OPERATIONAL AMPLIFIER MSOP-8  TSSOP-8 DESCRIPTION The UTC MC4558 is a monolithic integrated circuit designed for dual operational amplifier.  FEATURES SOP-8 * No frequency compensation required * No latch-up * Large common mode and differential voltage range * Parameter tracking over temperature range * Gain and phase match between amplifiers * Internally frequency compensated * Low noise input transistors  SIP-9 ORDERING INFORMATION Ordering Number Lead Free Halogen Free MC4558L-D08-T MC4558G-D08-T MC4558G-G09-T MC4558G-P08-R MC4558G-S08-R MC4558G-SM1-R  DIP-8 Package Packing DIP-8 SIP-9 TSSOP-8 SOP-8 MSOP-8 Tube Tube Tape Reel Tape Reel Tape Reel MARKING DIP-8 SOP-8/MSOP-8 TSSOP-8 SIP-9 www.unisonic.com.tw Copyright © 2015 Unisonic Technologies Co., Ltd 1 of 6 QW-R105-002.J MC4558  LINEAR INTEGRATED CIRCUIT PIN CONFIGURATIONS SOP-8/DIP-8/MSOP-8/TSSOP-8 SIP-9 1 2 3 4 5 6 7 8 9 VCC OUT1 IN1(-) IN1(+) GND IN2(+) IN2(-) OUT2 VCC UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 6 QW-R105-002.J MC4558  LINEAR INTEGRATED CIRCUIT BLOCK DIAGRAM Vcc+ IN(-) IN(+) OUTPUT Vcc- UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 6 QW-R105-002.J MC4558  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS PARAMETER Supply Voltage Differential input voltage RATING UNIT ±22 V ±18 V DIP-8 600 mW SOP-8 400 mW Power Dissipation TSSOP-8 PD 300 mW SIP-9 750 mW MSOP-8 250 mW Input Voltage VIN ±15 V Junction Temperature TJ +125 °C Operating Temperature TOPR -20 ~ +85 C Storage Temperature TSTG -40 ~ +150 C Note 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied. 2. The device is guaranteed to meet performance specification within 0C ~ +70C operating temperature range and assured by design from -20C ~ +85C.  SYMBOL VCC VI(DIFF) ELECTRICAL CHARACTERISTICS (TA=25C, VCC=15V, VEE=-15V) PARAMETER Supply Current, all Amp, no load Input offset voltage Input offset current Input bias current Large signal voltage gain Common Mode Input Voltage Range SYMBOL TEST CONDITIONS ICC VI(OFF) RS=10kΩ 70 Slew Rate SR VIN=±10V, RL≧ 2kΩ, CL≦ 100pF Rise Time TRIS VIN=±20mV, RL≧ 2kΩ, CL≦ 100pF Overshoot OS VIN=±20mV, RL≧ 2kΩ, CL≦ 100pF Input Resistance Output Resistance RIN ROUT Total Harmonic Distortion THD Channel Separation FREQUENCY CHARACTERISTIC Unity Gain Bandwidth 0.3 f=1kHz, Av=20dB, RL=2kΩ, VOUT=2Vpp, CL=100pF VO1/VO2 BW UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 1.2 2.0 170 mV 2.2 V/μs 0.3 μs 15 % 2 75 MΩ Ω 0.008 % 120 dB 2.8 MHz 4 of 6 QW-R105-002.J MC4558 TYPICAL CHARACTERISTICS RMS Noise vs Rs Burst Noise vs Rs 10 10 3 2 Input Noise(RMS) (mV) Input Noise(peak) (mV) 10 BW=1.0Hz To 1.0KHz 10 2 10 1 0.1 1 10 10 2 10 3 Rs () 10 4 10 5 10 10 6 10 2 Output Noise vs Rs 10 3 Rs () 10 4 10 5 10 6 Spectral Noise Density 140 10 Gv=1000 100 Input Noise(nV/Hz) Output Noise(RMS) (mV) 120 1 Gv=100 Gv=10 -1 10 Gv=10 Rs=100k 80 60 40 20 Gv=1 -2 0 10 10 10 2 10 3 10 4 10 5 10 6 10 100 10 3 10 4 10 5 10 6 Frequency (Hz) Rs () Open loop frequency response Phase Margin vs Frequency 140 180 120 160 140 100 120 Phase Margin 80 Avd ( dB)  LINEAR INTEGRATED CIRCUIT 60 40 20 100 80 60 40 0 20 -20 1 10 100 10 3 10 4 10 5 10 6 10 7 Frequency (Hz) UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 0 1 10 100 10 3 10 4 10 5 10 6 10 7 Frequency (Hz) 5 of 6 QW-R105-002.J MC4558  LINEAR INTEGRATED CIRCUIT TYPICAL CHARACTERISTICS(Cont.) Positive output voltage swing vs Load resistance 15.0 Power Bandwith( Large Signal ) 32.0 +15V 28.0 24.0 +12V 11.0 9.0 Output Voltage (V) Output Voltage (peak) (V) 13.0 +9V 7.0 +6V 5.0 16.0 12.0 8.0 3.0 4.0 +3V 1.0 0 10 2 10 3 10 4 10 5 10 10 2 10 3 10 4 10 5 10 6 Frequency (Hz) Load resistance (Ω) Negative output voltage swing vs Load resistance 15.0 +15V 13.0 Output Voltage (peak) (V) 20.0 11.0 +12V 9.0 +9V 7.0 5.0 +6V 3.0 +3V 1.0 10 2 10 3 10 4 10 5 Load resistance (Ω) UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 6 of 6 QW-R105-002.J
