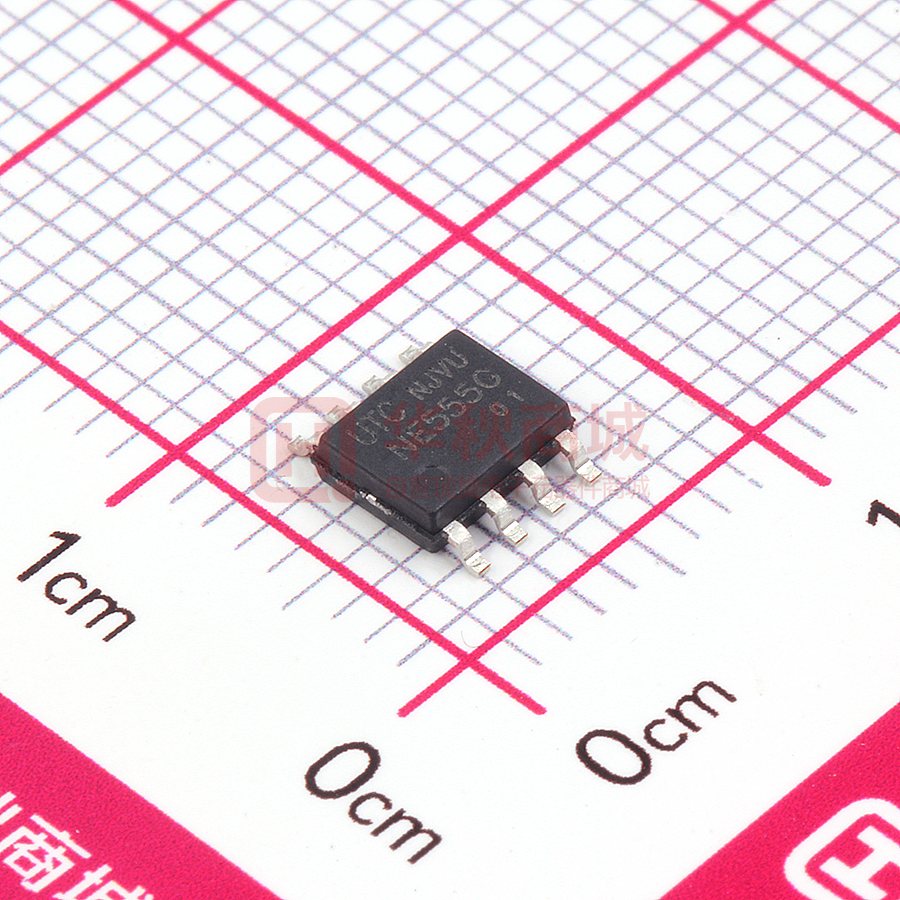

NE555G-S08-R

NE555G-S08-R

  • 厂商:

    UTC(友顺)

  • 封装:

    SOP-8_4.9X3.9MM

  • 描述:

    NE555 单精度定时器

  • 详情介绍
  • 数据手册
  • 价格&库存
NE555G-S08-R 数据手册
UNISONIC TECHNOLOGIES CO., LTD NE555 LINEAR INTEGRATED CIRCUIT SINGLE TIMER  DESCRIPTION The UTC NE555 is a highly stable timer integrated circuit. It can be operated in both Astable and Monostable mode. With monostable operation, the time delay is precisely controlled by one external and one capacitor. With a stable operation as an oscillator the frequency and duty cycle are both accurately controlled with two external resistors and one capacitor.  FEATURES *High current driver capability (=200mA). *Adjustable duty cycle. *Timing from s to hours. *Turn off time less than 2s. *Operates in both astable and monostable modes. ■ ORDERING INFORMATION Ordering Number Lead Free NE555L-D08-T -  Halogen Free NE555G-D08-T NE555G-S08-R Package Packing DIP-8 SOP-8 Tube Tape Reel MARKING DIP-8 www.unisonic.com.tw Copyright © 2016 Unisonic Technologies Co., Ltd SOP-8 1 of 7 QW-R106-001.G NE555 LINEAR INTEGRATED CIRCUIT  PIN CONFIGURATION  BLOCK DIAGRAM UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 7 QW-R106-001.G NE555  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL RATINGS UNIT Supply Voltage VCC 16 V Power Dissipation PD 600 mW Junction Temperature TJ +125 °C Operating Temperature TOPR -20 ~ +85 °C Storage Temperature TSTG -40 ~ +150 °C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  ELECTRICAL CHARACTERISTICS (VCC=5 ~ 15V, TA=25°C, unless otherwise specified.) PARAMETER Supply Voltage SYMBOL VCC Supply Current (Note 1) Initial Accurary (Note 2) Drift with Temperature Drift with Supply Voltage Monostable Astable Monostable Astable Monostable Astable ICC VCC=5V, RL= VCC=15V, RL= ACCUR RA=1k ~ 100kΩ t/T C=0.1F VC Threshold Voltage VTH Threshold Current (Note 3) ITH Trigger Voltage VTR Trigger Current Reset Voltage Reset Current ITR VRST IRST High Output Voltage MIN 4.5 t/VCC Control Voltage Low Output Voltage TEST CONDITIONS VOL VOH VCC=15V VCC=5V VCC=15V VCC=5V 9.0 2.6 VCC=5V VCC=15V VTR=0 1.1 4.5 0.4 VCC=15V ISINK=10mA ISINK=50mA VCC=5V ISINK=5mA VCC=15V ISOURCE=200mA ISOURCE=100mA VCC=5V, ISOURCE=100mA 12.75 2.75 TYP 3 7.5 1.0 2.25 50 150 0.1 0.3 10.0 3.33 10.0 3.33 0.1 1.67 5 0.01 0.7 0.1 MAX 16 6 15 3.0 UNIT V mA mA % % ppm/C ppm/C 0.25 2.2 5.6 2.0 1.0 0.4 %/V %/V V V V V μA V V μA V mA 0.06 0.3 0.25 0.75 V V 0.05 0.35 V 12.5 13.3 3.3 100 100 20 0.5 11.0 4.0 V V V ns ns nA Rise Time of Output tR Fall Time of Output tF Discharge Leakage Current ILKG 100 Notes: 1.Supply current when output high typically 1mA less at VCC=5V. 2. Tested at VCC=5.0V and VCC=15V. 3. This will determine the maximum value of RA+RB for 15V operation, The maximum total is R=20MΩ, and for 5V operation the maximum total is R=6.7MΩ. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 7 QW-R106-001.G NE555  LINEAR INTEGRATED CIRCUIT TYPICAL APPLICATION CIRCUIT RB RA C1 Trigger 2 Threshold Discharge 6 5 7 Q1 Lower comparator 1 GND R3 Upper comparator R2 R1 FLIP-FLOP 8 VCC 4 Reset UTC NE555N UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 4 of 7 QW-R106-001.G NE555  LINEAR INTEGRATED CIRCUIT TYPICAL APPLICATION NOTES The application circuit shows astable mode configuration. Pin 6 (Threshold ) is tied to Pin 2 ( Trigger ) and Pin 4 ( reset ) is tied to VCC ( Pin 8 ). The external capacitor C1 of Pin 6 and Pin 2 charges through RA, RB and dischages through RB only. In the internal circuit of UTC NE555N , one input of the upper comparator is at voltage of 2/3VCC (R1=R2=R3),another input is connected to Pin 6.As soon as C1 is charging to higher than 2/3VCC, transistor Q1 is turned ON and discharge C1 to collector voltage of transistor Q1. Therefore, the flip-flop circuit is reset and output is low. One input of lower comparator is at voltage of 1/3Vcc, discharge transistor Q1 turn off and C1 charges through RA and RB. Therefore, the flip-flop circuit is set output high. That is, when C1 charges through RA and RB, output is high and when C1 discharge through RB ,output is low. The charge time(output is high) t1 is 0.693(RA+RB) C1 and the discharge time (output is low) T2 is 0.693 RB×C1. VCC In VCC - 1 3 2 3 VCC = 0.693 VCC T1=0.693×(RA+RB)×C1 Thus the total period time T is given by T=T1+T2=0.693(RA+2RB)×C1. T2=0.693×RB×C1 Then the frequency of astable mode is given by f= 1 T 1.44 = (RA + 2RB)×C1 The duty cycle is given by D.C.  T2 T UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw  RB RA  2RB . 5 of 7 QW-R106-001.G NE555 TYPICAL CHARACTERISTICS Supply Current,ICC (mA) Low-Level Output Voltage vs Low-Level Output Current 10 7 4 VCC=5V TA=-55℃ 2 1 0.7 0.4 TA=25℃ TA=125℃ 0.2 0.1 0.07 0.04 0.02 Low-Level Output Voltage vs Low-Level Output Current 10 7 4 VCC=10V 2 TA=25℃ 1 0.7 0.4 TA=-55℃ TA=125℃ 0.2 0.1 0.07 0.04 0.02 0.01 0.01 1 Low-Level Output Voltage,VOL (V) Low-Level Output Voltage,VOL (V) Low-Level Output Voltage,VOL (V) Voltage Drop,(VCC-VOH) (V)  LINEAR INTEGRATED CIRCUIT 4 20 40 70 100 7 10 2 Low-Level Output Current,IOL (mA) 1 2 4 20 7 10 40 70 100 Low-Level Output Current,IOL (mA) Low-Level Output Voltage vs Low-Level Output Current 10 7 4 VCC=15V TA=-55℃ 2 1 0.7 0.4 TA=25℃ 0.2 TA=125℃ 0.1 0.07 0.04 0.02 0.01 1 2 4 7 10 20 40 70 100 Low-Level Output Current,IOL (mA) UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 6 of 7 QW-R106-001.G NE555 LINEAR INTEGRATED CIRCUIT UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 7 of 7 QW-R106-001.G
NE555G-S08-R
物料型号: - NE555L-D08-T(DIP-8封装,管装) - NE555G-D08-T(DIP-8封装,管装) - NE555G-S08-R(SOP-8封装,卷带)

器件简介: UTC NE555 是一款高稳定性的计时器集成电路,能够在双稳态和单稳态模式下操作。单稳态模式下,时间延迟由一个外部电阻和一个电容精确控制。作为振荡器稳定操作时,频率和占空比通过两个外部电阻和一个电容精确控制。

引脚分配: - 1:GND - 2:触发/放电 - 3:输出 - 4:阈值 - 5:控制电压 - 6:复位 - 7:未用 - 8:Vcc

参数特性: - 供电电压:4.5V至16V - 功耗:600mW - 结温:+125°C - 工作温度:-20°C至+85°C - 存储温度:-40°C至+150°C

功能详解: - 具有高电流驱动能力(高达200mA) - 可调占空比 - 计时范围从微秒到小时 - 关断时间小于2微秒 - 可在双稳态和单稳态模式下操作

应用信息: 文档提供了典型的应用电路图和应用说明,展示了双稳态模式下的配置。外部电容C1通过RA、RB充电,并通过RB放电。内部电路中,上比较器的一个输入在2/3VCC电压,另一个输入连接到引脚6。当C1充电超过2/3VCC时,晶体管Q1导通并放电C1,导致触发器复位,输出为低。下比较器的一个输入在1/3VCC电压,放电晶体管Q1关闭,C1通过RA和RB充电,触发器设置,输出为高。

封装信息: - DIP-8封装:UTC00D NE555口 - SOP-8封装:NE555G
