TL431K-AB3-R

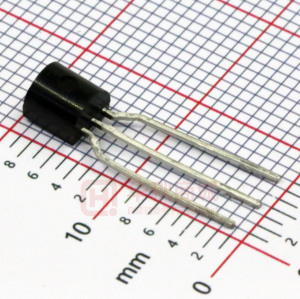

UNISONIC TECHNOLOGIES CO., LTD TL431 PROGRAMMABLE PRECISION REFERENCE DESCRIPTION The UTC TL431 is a three-terminal adjustable regulator with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between VREF (approximately 2.5V) and 36V with two external resistors. It provides very wide applications, including shunt regulator, series regulator, switching regulator, voltage reference and others. LINEAR INTEGRATED CIRCUIT FEATURES * * * * Programmable output Voltage to 36V. Low dynamic output impedance 0.2Ω. Sink current capability of 1.0 to 100mA. Equivalent full-range temperature coefficient of 50ppm/ °C typical for operation over full rated operating temperature range. ORDERING INFORMATION Ordering Number Normal Lead Free Halogen Free TL431-AB3-R TL431K-AB3-R TL431G-AB3-R TL431-AE2-R TL431K-AE2-R TL431G-AE2-R TL431-AE3-R TL431K-AE3-R TL431G-AE3-R TL431NS-AE3-R TL431NSL-AE3-R TL431NSG-AE3-R TL431NS-AE2-R TL431NSL-AE2-R TL431NSG-AE2-R TL431-AF5-R TL431K-AF5-R TL431G-AF5-R TL431-S08-R TL431K-S08-R TL431G-S08-R TL431-T92-B TL431K-T92-B TL431G-T92-B TL431-T92-K TL431K-T92-K TL431G-T92-G Note: Pin Code: K: Cathode A: Anode R: Reference Pin Assignment 12345678 RAK- - - - KRA- - - - KRA- - - - RKA- - - - RKA- - - - XXKRA- - KAAXXAAR RAK- - - - RAK- - - - X: No Connection Package SOT-89 SOT-23-3 SOT-23 SOT-23 SOT-23-3 SOT-25 SOP-8 TO-92 TO-92 Packing Tape Reel Tape Reel Tape Reel Tape Reel Tape Reel Tape Reel Tape Reel Tape Box Bulk www.unisonic.com.tw Copyright © 2011 Unisonic Technologies Co., Ltd 1 of 7 QW-R103-003,AC TL431 MARKING PACKAGE 3 SOT-23-3 SOT-23 2 3 SOT-23-3 SOT-23 (TL431NS) 431N 2 3 SOT-25 4 2 431 5 1 1 K: Lead Free G: Halogen Free L: Lead Free G: Halogen Free 431. 1 K: Lead Free G: Halogen Free MARKING LINEAR INTEGRATED CIRCUIT UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 7 QW-R103-003,AC TL431 BLOCK DIAGRAM LINEAR INTEGRATED CIRCUIT CATHODE REFERENCE CATHODE (K) REFERENCE (R) 2.5V VREF ANODE(A) ANODE UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 7 QW-R103-003,AC TL431 PARAMETER SYMBOL VKA IKA IREF LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies unless otherwise specified) RATINGS UNIT Cathode Voltage 37 V Cathode Current Range(Continuous) -100 ~ +150 mA Reference Input Current Range -0.05 ~ +10 mA TO-92 770 mW Power Dissipation PD SOT-89 800 mW SOT-23/SOT-23-3/SOT-25 300 mW Operating Junction TJ +150 °C Operating Ambient TOPR -40 ~ +85 °C Storage Temperature TSTG -65 ~ +150 °C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged Absolute maximum ratings are stress ratings only and functional device operation is not implied. RECOMMENDED OPERATING CONDITIONS PARAMETER Cathode Voltage Cathode Current SYMBOL VKA IKA MIN VREF 1 TYP MAX 36 100 UNIT V mA ELECTRICAL CHARACTERISTICS (TC= 25°C, unless otherwise specified.) PARAMETER Reference Input Voltage Deviation of reference Input Voltage Over temperature Ratio of Change in Reference Input Voltage to the Change in Cathode Voltage Reference Input Current Deviation of Reference Input Current Over Full Temperature Range Minimum Cathode Current for Regulation Off-State Cathode Current Dynamic Impedance SYMBOL VREF ΔVREF ΔT ΔVREF ΔVKA IREF ΔIREF ΔT IKA(MIN) IKA(OFF) ZKA TEST CONDITIONS TL431-A TL431-1 VKA=VREF,IKA=10mA TL431-2 TL431-3 VKA=VREF,IKA=10mA 0°C ≤Ta≤70°C ΔVKA=10V~VREF IKA=10mA ΔVKA=36V~10V IKA=10mA, R1=10kΩ, R2=∞ IKA=10mA, R1=10kΩ, R2=∞ Ta =full Temperature VKA=VREF VKA=36V, VREF=0 VKA=VREF, IKA=1 to 100mA f≤1.0kHz MIN TYP MAX UNIT 2.483 2.495 2.507 V 2.470 2.495 2.520 V 2.520 2.545 V 2.445 2.470 V 4.5 -1.0 -0.5 1.5 0.4 0.3 0.05 0.15 17 mV -2.7 mV/V -2.0 mV/V 4 µA 1.2 0.5 1.0 0.5 µA mA µA Ω UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 4 of 7 QW-R103-003,AC TL431 TEST CIRCUIT LINEAR INTEGRATED CIRCUIT INPUT VKA IKA(OFF) UTC TL431 VKA=VREF×(1+R1/R2)+IREF×R1 For VKA=VREF For VKA≥VREF For IKA(OFF) APPLICATION CIRCUIT VOUT=(1+R1/R2)×VREF Shutdown Regulator VOUT=(1+R1/R2)×VREF Minimum VOUT=VREF+5V Output Control of a Three -Terminal Fixed Regulator VOUT=(1+R1/R2)×VREF Higher-current Shunt Regulator IOUT=VREF/RS Constant-current Sink IOUT =VREF/RCL Current Limiting or Current Source UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 5 of 7 QW-R103-003,AC TL431 ■ TYPICAL CHARACTERISTICS Cathode Current vs. Cathode Voltage 150 125 V =V KA REF 800 LINEAR INTEGRATED CIRCUIT Cathode Current vs. Cathode Voltage Ta=25°C VKA=VREF Ta=25°C Cathode Current (mA) 100 75 50 25 0 -25 -50 -75 -100 -2 -1 0 1 2 3 600 Cathode Current (μA) 400 IKA(MIN) 200 0 -200 -2 -1 0 1 2 3 Cathode Voltage (V) Cathode Voltage (V) 0 Change in Reference Input Voltage vs. Cathode Voltage IKA=10mA Ta=25°C Input and Output Voltage (V) Pulse Response 7 Change In Reference Input Voltage (mV) Ta=25°C 6 5 4 3 2 1 0 -1 -1 0 1 2 3 4 5 6 7 -5 -10 -15 -20 -25 -30 -35 -40 0 5 10 15 20 25 30 35 40 Cathode Voltage (V) Time (µs) 3.0 2.4 Deviation of Reference Voltage over Temperature IKA=10mA Frequency Response 60 50 40 1.6 30 20 0.8 10 0 -40 -20 0 25 50 75 100 125 150 Temperature, ( ) 0 1K 10K 100K 1M 10M Frequency, f (Hz) UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 6 of 7 QW-R103-003,AC TL431 LINEAR INTEGRATED CIRCUIT UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 7 of 7 QW-R103-003,AC
