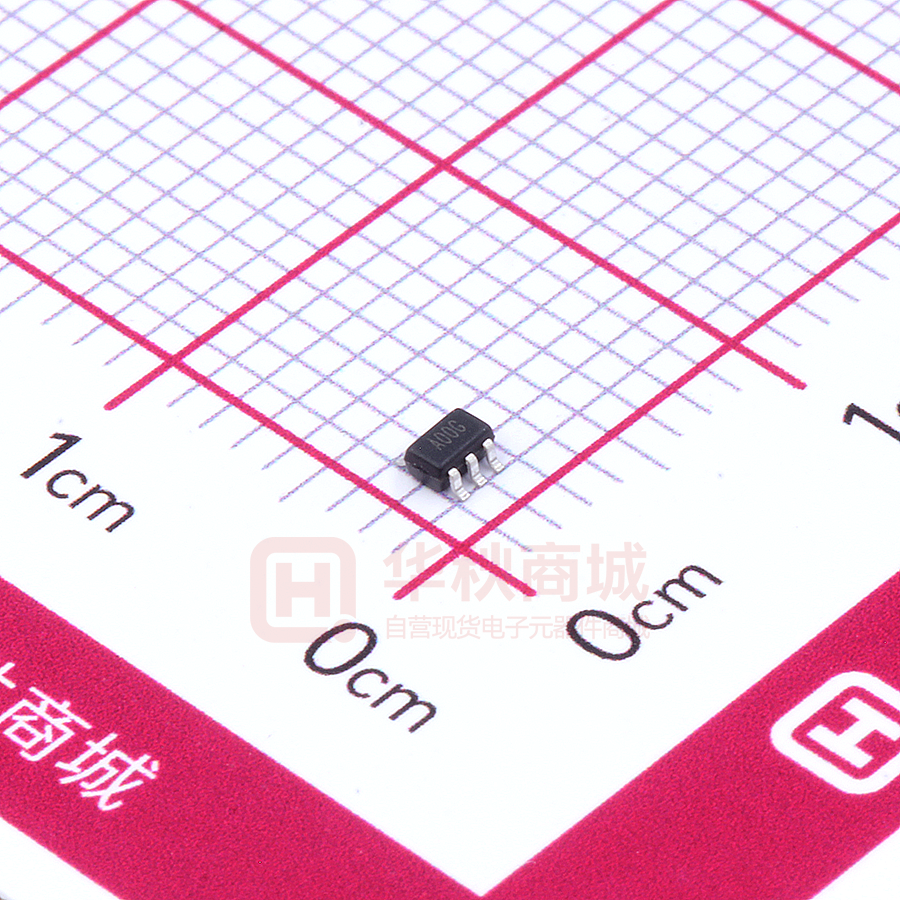

U74AHC1G00G-AL5-R

UNISONIC TECHNOLOGIES CO., LTD U74AHC1G00 CMOS IC 2-INPUT NAND GATE  DESCRIPTION The U74AHC1G00 is a 2-input NAND gate which provides the Function Y = Α × Β . FEATURES  * Operation Voltage Range: 2~5.5V * Low Power Dissipation: ICC=1.0μA (Max) * High Speed: tPD=4.3ns (Typ)  ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74AHC1G00L-AE5-R U74AHC1G00G-AE5-R U74AHC1G00L-AF5-R U74AHC1G00G-AF5-R U74AHC1G00L-AL5-R U74AHC1G00G-AL5-R Package Packing SOT-23-5 SOT-25 SOT-353 Tape Reel Tape Reel Tape Reel MARKING  5 4 L: Lead Free G: Halogen Free A00 1 2 3 www.unisonic.com.tw Copyright © 2015 Unisonic Technologies Co., Ltd 1 of 5 QW-R502-069.D U74AHC1G00 CMOS IC  PIN CONFIGURATION  FUNCTION TABLE (each gate) INPUT A L L H H  B L H L H OUTPUT Y H H H L LOGIC DIAGRAM (positive logic) UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 5 QW-R502-069.D U74AHC1G00  CMOS IC ABSOLUTE MAXIMUM RATING (Note 1) PARAMETER SYMBOL RATINGS UNIT Supply Voltage VCC -0.5~7 V Input Voltage VIN -0.5~7 V Output Voltage VOUT -0.5~VCC+0.5 V Input Clamp Current IIK -20 mA Output Clamp Current IOK ±20 mA Output Current IOUT ±25 mA VCC or GND Current ICC ±50 mA Storage Temperature TSTG -65 ~ +150 °C Notes: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed. 2. Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  RECOMMENDED OPERATING CONDITIONS PARAMETER Supply Voltage Input Voltage Output Voltage SYMBOL VCC VIN VOUT High-Level Output Current IOH Low-Level Output Current IOL Input Rise and Fall Times dt/dv Operating Temperature TOPR  CONDITIONS MIN 2 0 0 VCC=2V VCC=3.3±0.3V VCC=5±0.3V VCC=2V VCC=3.3±0.3V VCC=5±0.5V VCC=3.3+0.3V VCC=5.0+0.5V -40 TYP MAX 5.5 5.5 VCC -50 -4 -8 50 4 8 100 20 85 UNIT V V V μA mA mA μA mA mA ns/V °C STATIC CHARACTERISTICS PARAMETER SYMBOL High-Level Input Voltage VIH Low-Level Input Voltage VIL High-Level Output Voltage VOH Low-Level Output Voltage VOL Input Leakage Current Quiescent Supply Current Input Capacitance II(LEAK) ICC CIN TA=25°C TA=-40~85°C UNIT MIN TYP MAX MIN MAX VCC=2.0V 1.5 1.5 V VCC=3.0V 2.1 2.1 VCC=5.5V 3.85 3.85 VCC=2.0V 0.5 0.5 V VCC=3.0V 0.9 0.9 VCC=5.5V 1.65 1.65 VCC=2.0V, IOH=-50μA 1.9 2.0 1.9 VCC=3.0V, IOH=-50μA 2.9 3.0 2.9 V VCC=4.5V, IOH=-50μA 4.4 4.5 4.4 VCC=3.0V, IOH=-4mA 2.58 2.48 VCC=4.5V, IOH=-8mA 3.94 3.8 VCC=2.0V, IOL=50μA 0.1 0.1 VCC=3.0V, IOL=50μA 0.1 0.1 V VCC=4.5V, IOL=50μA 0.1 0.1 VCC=3.0V, IOL=4mA 0.36 0.44 VCC=4.5V, IOL=8mA 0.36 0.44 VCC=0~5.5V, VIN=VCC or GND ±0.1 ±1 μA VCC=5.5V, VIN=VCC or GND, IOUT=0 1 10 μA VCC=5V, VIN=VCC or GND 4 10 10 pF TEST CONDITIONS UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 5 QW-R502-069.D U74AHC1G00  CMOS IC DYNAMIC CHARACTERISTICS (Input: tR, tF≤3ns; PRR≤1MHz) PARAMETER SYMBOL tPLH tPHL tPLH tPHL tPLH tPHL tPLH tPHL Propagation Delay Time Input (A or B) to Output(Y) Propagation Delay Time Input (A or B) to Output(Y)  TEST CONDITIONS MIN VCC=3.3±0.3, CL=15pF VCC=3.3±0.3, CL=50pF VCC=5±0.5, CL=15pF VCC=5±0.5, CL=50pF TA=25°C TYP 5.5 5.5 8 8 3.7 3.7 5.2 5.2 MAX 7.9 7.9 11.4 11.4 5.5 5.5 7.5 7.5 TA=-40~85°C MIN MAX 1 9.5 1 9.5 1 13 1 13 1 6.5 1 6.5 1 8.5 1 8.5 UNIT ns ns OPERATING CHARACTERISTICS PARAMETER Power Dissipation Capacitance SYMBOL TEST CONDITIONS CPD No load, f=1MHz, VCC=5 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw MIN TYP 9.5 MAX UNIT pF 4 of 5 QW-R502-069.D U74AHC1G00  CMOS IC TEST CIRCUIT AND WAVEFORMS Note: CL includes probe and jig capacitance. UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. UTC reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 5 of 5 QW-R502-069.D
