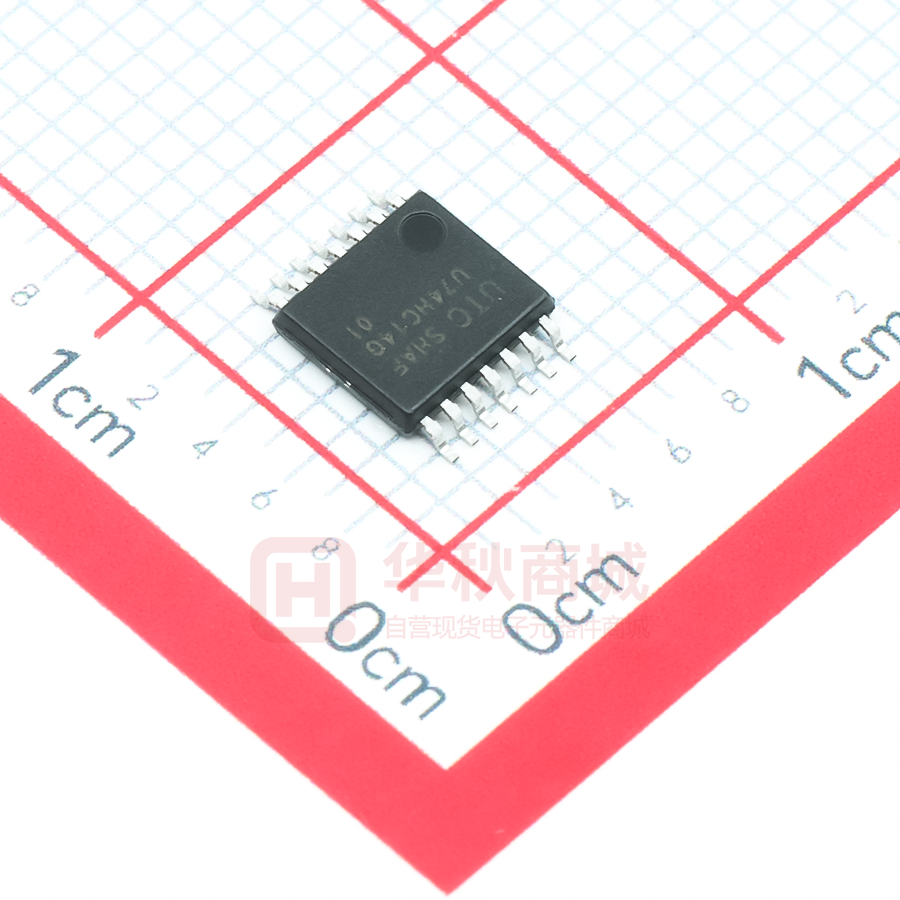

U74HC14G-P14-R

UNISONIC TECHNOLOGIES CO., LTD U74HC14 CMOS IC HIGH-SPEED CMOS LOGIC HEX INVERTING SCHMITT TRIGGER  DESCRIPTION The UTC U74HC14 each contain six inverting Schmitt triggers in one package. Each of them perform the Boolean function Y = A  FEATURES * Widely range of input rise and fall time * high noise immunity * Fan-out parameters(over temperature range) up to 10 LSTTL Loads * Low power consumption * Wide range operation 2V ~ 6V  ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74HC14L-D14-T U74HC14G-D14-T U74HC14G-S14-R U74HC14G-P14-R  Package Packing DIP-14 SOP-14 TSSOP-14 Tube Tape Reel Tape Reel MARKING DIP-14 www.unisonic.com.tw Copyright © 2015 Unisonic Technologies Co., Ltd SOP-14 / TSSOP-14 1 of 6 QW-R502-071.D U74HC14  CMOS IC PIN CONFIGURATION  FUNCTIONAL DIAGRAM  TRUTH TABLE INPUT(A) L H H=High level L=Low Level 1A 1 14 VCC 1Y 2 13 6A 2A 3 12 6Y 2Y 4 11 5A 3A 5 10 5Y 3Y 6 9 4A GND 7 8 4Y OUTPUT(Y) H L UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 6 QW-R502-071.D U74HC14  CMOS IC LOGIC DIAGRAM VOUT VH VCC GND VIL VIH VIH VIN VIL VCC VH VIN GND VCC VOUT GND Hysteresis Definition, Characteristic, And Test Setup UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 6 QW-R502-071.D U74HC14  CMOS IC ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL RATINGS Supply Voltage VCC -0.5V ~ 7V Input Clamp Current For VIN < 0 or VIN > VCC IIK ±20 Output Clamp Current For VOUT < 0 or VOUT > VCC IOK ±20 Continuous Output Current For VOUT = 0 to VCC IOUT ±25 VCC or Ground Current ICC ±50 Storage Temperature TSTG -65 ~ +150 Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  THERMAL DATA PARAMETER SYMBOL DIP-14 SOP-14 TSSOP-14 Thermal Resistance Junction Ambient  θJA RATINGS 80 76 113 UNIT °C/W °C/W °C/W RECOMMENDED OPERATING CONDITIONS PARAMETER Supply Voltage Range HC Types Input or Output Voltage Operating Temperature  UNIT V mA mA mA mA °C SYMBOL VCC VIN, VOUT TA CONDITIONS MIN 2 0 -40 TYP 5 MAX 6 VCC 85 UNIT V V °C TYP 1.2 2.5 3.3 0.6 1.6 2 0.6 0.9 1.3 MAX UNIT 1.5 3.15 4.2 1 V 2.45 V 3.2 V 1.2 V 2.1 V 2.5 V V V V V V 0.1 V 0.1 V 0.1 V 0.26 V 0.26 V ±0.1 µA 2 µA ELECTRICAL CHARACTERISTICS (TA = 25°C, unless otherwise specified) PARAMETER SYMBOL VIH Input Switch Points VIL VTH High Level Output Voltage CMOS Loads VOH High Level Output Voltage TTL Loads Low Level Output Voltage CMOS Loads VOL Low Level Output Voltage TTL Loads Input Leakage Current Quiescent Device Current IIN IQ TEST CONDITIONS VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V VCC=6V VIN=VIH or VIL, VCC=2V, IOH=-0.02mA VIN=VIH or VIL, VCC=4.5V, IOH=-0.02mA VIN=VIH or VIL, VCC=6V, IOH=-0.02mA VIN=VIH or VIL, VCC=4.5V, IOH=-4 mA VIN=VIH or VIL, VCC=6V, IOH=-5.2 mA VIN=VIH or VIL, VCC=2V, IOL=0.02 mA VIN=VIH or VIL, VCC=4.5V, IOL=0.02 mA VIN=VIH or VIL, VCC=6V, IOL=0.02 mA VIN=VIH or VIL, VCC=4.5V, IOL=4 mA VIN=VIH or VIL, VCC=6V, IOL=5.2 mA VIN=VCC and GND, VCC=6V VIN=VCC or GND, VCC=6V, IOUT=0 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw MIN 0.7 1.55 2.1 0.3 0.9 1.2 0.2 0.4 0.5 1.9 4.4 5.9 3.98 5.48 4 of 6 QW-R502-071.D U74HC14  CMOS IC SWITCHING SPECIFICATIONS (TA = 25°C, Input tR, tF = 6ns, unless otherwise specified) PARAMETER SYMBOL Propagation Delay, A to Y tPLH, tPHL Output Transition Times tTLH, tTHL Input Capacitance Power Dissipation Capacitance CIN CPD TEST CONDITIONS VCC=2V, CL=50pF VCC=4.5V, CL=50pF VCC=6V, CL=50pF VCC=2V, CL=50pF VCC=4.5V, CL=50pF VCC=6V, CL=50pF No load UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw MIN TYP 55 12 11 38 8 6 3 20 MAX UNIT 125 ns 25 ns 21 ns 75 ns 15 ns 13 ns 10 pF pF 5 of 6 QW-R502-071.D U74HC14  CMOS IC TEST CIRCUIT AND WAVEFORMS tR=6ns tF=6ns 90% 50% 10% INPUT tTLH tTHL 90% 50% 10% INVERTING OUTPUT tPHL tPLH Transition Times And Propagation Delay Times, Combination Logic UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 6 of 6 QW-R502-071.D
