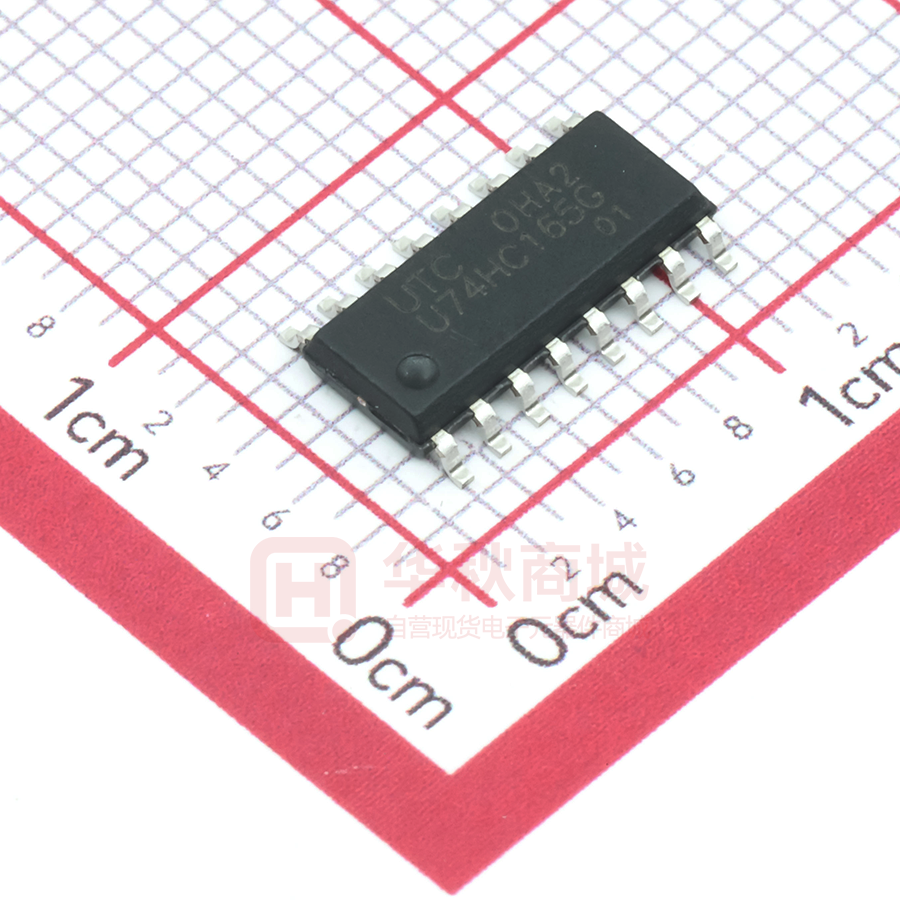

U74HC165G-S16-R

UNISONIC TECHNOLOGIES CO., LTD U74HC165 CMOS IC 8-BIT PARALLEL-LOAD SHIFT REGISTER  DESCRIPTION SOP-16 The U74HC165 is an 8-bit parallel-load shift register that, when clocked, shifts the data toward a serial (QH) output. Parallel-in access to each stage is provided by eight individual direct data (A-H) inputs that are enabled by a low level at shift/load (SH/ LD ) input. The U74HC165 also features a clock-inhibit (CLK INH) function and a complementary serial ( QH ) output. Clocking is accomplished by a low-to-high transition of the TSSOP-16 clock (CLK) input while SH/ LD is held high and CLK INH is held low. The functions of CLK and CLK INH are interchangeable. Since a low CLK and a low-to-high transition of CLK INH also accomplish clocking, CLK INH should be changed to the high level only while CLK is high. Parallel loading is inhibited when SH/ LD is held high. While SH/ LD is low, the parallel inputs to the register are enabled independently of the levels of the CLK, CLK INH, or serial (SER) inputs.  FEATURES * Complementary Outputs * Direct Overriding Load (Data) Inputs * Gated Clock Inputs * Parallel-to-Serial Data Conversion  ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74HC165L-S16-R U74HC165G-S16-R U74HC165L-P16-R U74HC165G-P16-R  Package Packing SOP-16 TSSOP-16 Tape Reel Tape Reel MARKING www.unisonic.com.tw Copyright © 2023 Unisonic Technologies Co., Ltd 1 of 9 QW-R502-A44.F U74HC165 CMOS IC  PIN CONFIGURATION  PIN DESCRIPTION PIN NO. 1 DESCRIPTION SH/ LD CLK Asynchronous parallel load input (active LOW) A to H Parallel data inputs (also referred to as Dn) 7 QH Complementary output from the last stage 8 9 10 15 16 GND QH SER CLK/INH VCC 2 3, 4, 5, 6 11. 12, 13, 14  PIN NAME Clock input (LOW-to-HIGH edge-triggered) Ground (0V) Serial output from the last stage Serial data input Clock enable input (active LOW) Positive supply voltage FUNCTION TABLE INPUTS FUNCTION CLK CLK INH SH/ LD L X X Parallel load H H X No change H X H No change H L ↑ Shift↑ H ↑ L Shift↑ ↑ Shift=content of each internal register shifts toward serial output QH. Data at SER is shifted into the first register. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 9 QW-R502-A44.F U74HC165  CMOS IC LOGIC SYMBOL UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 9 QW-R502-A44.F U74HC165  LOGIC DIAGRAM (positive logic)  TYPICAL SHIFT, LOAD, AND INHIBIT SEQUENCE UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw CMOS IC 4 of 9 QW-R502-A44.F U74HC165  CMOS IC ABSOLUTE MAXIMUM RATING (Unless otherwise specified) PARAMETER SYMBOL RATINGS UNIT Supply Voltage VCC -0.5 ~ 7 V VCC or GND Current ICC ±50 mA Output Current IOUT ±25 mA Input Clamp Current IIK ±20 mA Output Clamp Current IOK ±20 mA Storage Temperature TSTG -65 ~ + 150 °C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  RECOMMENDED OPERATING CONDITIONS PARAMETER Supply Voltage SYMBOL VCC High-level Input Voltage VIH Low-level Input Voltage VIL Input Voltage Output Voltage tt Operating Free-air Temperature TA VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V VCC=6V 0 0 VCC=2V VCC=4.5V VCC=6V -40 TYP 5 MAX UNIT 6 V V V V 0.5 V 1.35 V 1.8 V VCC V VCC V 1000 ns 500 ns 400 ns +125 °C THERMAL DATA PARAMETER Junction to Ambient  MIN 2 1.5 3.15 4.2 VIN VOUT Input Transition (Rise and Fall) Time  TEST CONDITIONS SYMBOL SOP-16 TSSOP-16 RATINGS 73 110 θJA UNIT °C/W °C/W ELECTRICAL CHARACTERISTICS (Unless otherwise specified) PARAMETER SYMBOL Output Voltage High-Level VOH Output Voltage Low-Level VOL Input Leakage Current Quiescent Supply Current II(LEAK) ICC TEST CONDITIONS VCC=2V, IOH=-20μA VCC=4.5V, IOH=-20μA VCC=6V, IOH=-20μA VCC=4.5V, IOH=-4mA VCC=6V, IOH=-5.2mA VCC=2V, IOL=20μA VCC=4.5V, IOL=20μA VCC=6V, IOL=20μA VCC=4.5V, IOL=4mA VCC=6V, IOL=5.2mA VCC=6V, VIN= VCC or GND VCC=6V, VIN=VCC or GND, IOUT=0 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw MIN 1.9 4.4 5.9 3.98 5.48 TA=25°С TA=-40~+125°С UNIT TYP MAX MIN TYP MAX 1.998 1.9 V 4.499 4.4 V 5.999 5.9 V 4.3 3.7 V 5.8 5.2 V 0.002 0.1 0.1 V 0.001 0.1 0.1 V 0.001 0.1 0.1 V 0.17 0.26 0.4 V 0.15 0.26 0.4 V ±0.1 ±1 ±1 μA 8 160 μA 5 of 9 QW-R502-A44.F U74HC165  CMOS IC TIMING REQUIREMENTS PARAMETER Clock frequency SYMBOL fclock SH/ LD low Pulse duration tw CLK high or low SH/ LD high before CLK↑ SER before CLK↑ Setup time CLK INH low before CLK↑ tSU CLK INH high before CLK↑ Data before SH/ LD ↓ SER data after CLK↑ Hold time PAR data after th SH/ LD ↓ TEST CONDITIONS VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V VCC=6V UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw MIN 0 0 0 80 16 14 80 16 14 80 16 14 40 8 7 100 20 17 40 8 7 100 20 17 5 5 5 5 5 5 TA=-40~+125°С TA=25°С TYP MAX MIN TYP MAX 6 4.2 31 21 36 25 120 24 20 120 24 20 120 24 20 60 12 10 150 30 25 60 12 10 150 30 25 5 5 5 5 5 5 UNIT MHz MHz MHz ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns 6 of 9 QW-R502-A44.F U74HC165  CMOS IC SWITCHING CHARACTERISTICS (tr = tf = 6ns, CL=50Pf, unless otherwise specified) PARAMETER SYMBOL TEST CONDITIONS MIN 6 31 36 TA=-40~+125°С TA=25°С TYP MAX MIN TYP MAX 13 4 50 20 62 24 80 150 250 20 30 50 UNIT input (SH/ LD ) to output VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V (QH or QH ) VCC=6V 16 26 43 ns Propagation delay from input (CLK) to output (QH VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V VCC=6V VCC=2V VCC=4.5V VCC=6V 75 15 13 75 15 13 38 8 6 150 30 26 150 30 26 75 15 13 250 50 43 180 36 31 110 22 19 ns ns ns ns ns ns ns ns ns Minimum Frequency Response fmax Propagation delay from tPD or QH ) Propagation delay from input (H) to output (QH or QH ) To Output (Any)  tt MHz MHz MHz ns ns OPERATING CHARACTERISTICS (Unless otherwise specified) PARAMETER Input Capacitance Power Dissipation Capacitance SYMBOL TEST CONDITIONS CI VCC=2V to 6V CPD No load UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw MIN TYP 3 75 MAX UNIT 10 pF pF 7 of 9 QW-R502-A44.F U74HC165  CMOS IC TEST CIRCUIT AND WAVEFORMS UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 8 of 9 QW-R502-A44.F U74HC165  CMOS IC TEST CIRCUIT AND WAVEFORMS (Cont.) UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. UTC reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 9 of 9 QW-R502-A44.F
