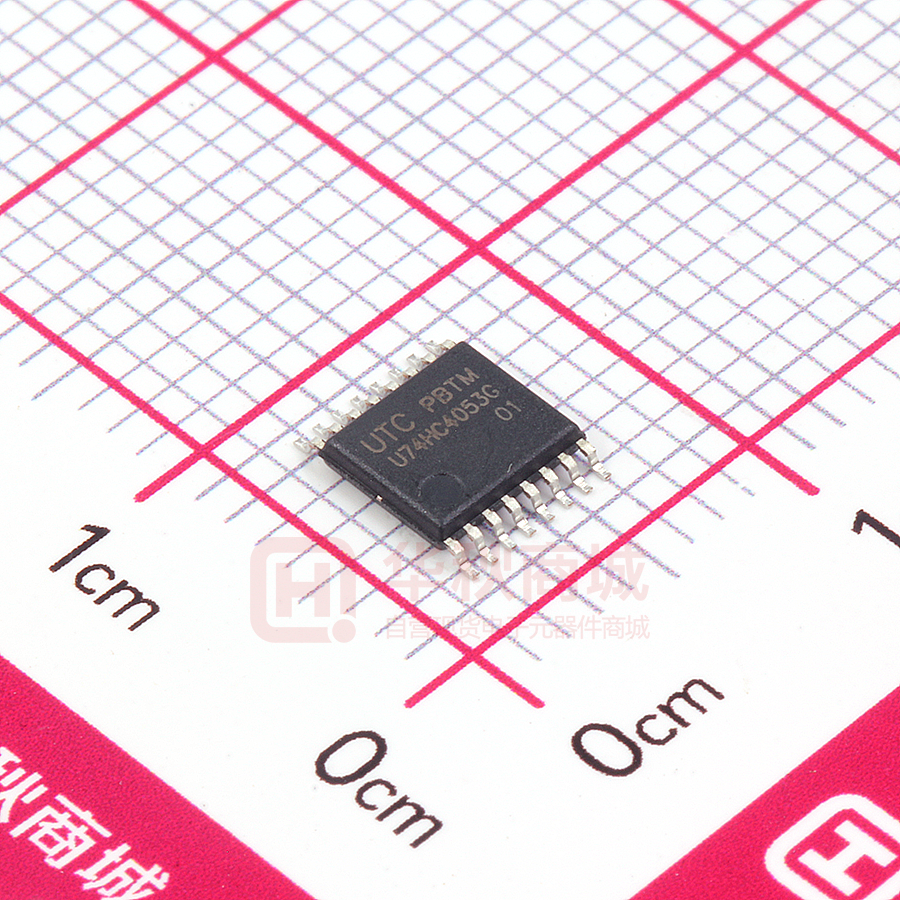

U74HC4053G-P16-R

U74HC4053G-P16-R

  • 厂商:

    UTC(友顺)

  • 封装:

    TSSOP16

  • 描述:

    三路2通道模拟多路复用器/解复用器

  • 数据手册
  • 价格&库存
U74HC4053G-P16-R 数据手册
UNISONIC TECHNOLOGIES CO., LTD U74HC4053 CMOS IC TRIPLE 2-CHANNEL ANALOG MULTIPLEXER/ DEMULTIPLEXER  DESCRIPTION The UTC U74HC4053 is a high-performance, triple 2-channel analog multiplexer/de-multiplexer.  FEATURES * Wide analog input voltage range from -5V to +5V * Low ON-state resistance * Logic level translation: to enable 5V logic to communicate with ±5V analog signals * Typical “break before make” built in  ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74HC4053L-D16-T U74HC4053G-D16-T U74HC4053L-S16-R U74HC4053G-S16-R U74HC4053L-P16-R U74HC4053G-P16-R  Package Packing DIP-16 SOP-16 TSSOP-16 Tube Tape Reel Tape Reel MARKING www.unisonic.com.tw Copyright © 2015 Unisonic Technologies Co., Ltd 1 of 9 QW-R502-373.B U74HC4053 PIN CONFIGURATION 2Y1 1 16 VCC 2Y0 2 15 2Z 3Y1 3 14 1Z 3Z 4 13 1Y1 3Y0 5 12 1Y0 E 6 11 S1 VEE 7 10 S2 8  CMOS IC 9 S3 GND  FUNCTION TABLE INPUT(Sn) CHANNEL ON INPUT( E ) L L nY0 to nZ L H nY1 to nZ H X none Note: H=High voltage level; L=Low voltage level; X=don’t care  SCHEMATIC DIAGRAM(one switch) Y VCC VCC VCC From logic UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw VCC VEE VEE VEE Z 2 of 9 QW-R502-373.B U74HC4053  CMOS IC FUNCTION DIAGRAM UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 9 QW-R502-373.B U74HC4053  CMOS IC ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL RATINGS UNIT Supply Voltage VCC -0.5 ~ +11.0 V Input Clamping Current IIK ±20 mA (VINVCC+0.5V) Switch Clamping Current ISK ±20 mA (VSVCC+0.5V) Switch Current (VS=-0.5V to VCC+0.5V) IS ±25 mA Negative Supply Current IEE -20 mA Ground Supply Current IGND -50 mA Quiescent Supply Current ICC 50 mA DIP-16 750 mW Power Dissipation SOP-16/TSSOP-16 500 mW PD DIP-16 12 mW/K Derate above Ta>70°C SOP-16/TSSOP-16 8 mW/K Operating Temperature TOPR -40~+125 °C Storage Temperature TSTG -65 ~ + 150 °C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  RECOMMENDED OPERATING CONDITIONS PARAMETER SYMBOL Supply Voltage Difference ∆VCC Input Voltage Switch Voltage VIN VSW Input Rise and Fall Times  tR, tF CONDITIONS MAX 10.0 10.0 VCC VCC 1000 500 400 250 UNIT V v V V ns ns ns ns MAX 0.5 1.35 1.8 2.7 UNIT V V V V V V V V Per Channel ±0.1 μA All Channels ±0.1 μA ±0.1 μA ±0.1 ±0.2 μA μA VCC=6V, VEE=0V 8 μA VCC=10V,VEE=0V 16 μA VCC-GND VCC-VEE MIN 2.0 2.0 GND VEE VCC=2.0V VCC=4.5V VCC=6.0V VCC=10.0V TYP 5.0 5.0 6.0 6.0 6.0 6.0 STATIC CHARACTERISTICS (Ta=25°C) PARAMETER High-Level Input Voltage SYMBOL VIH Low-Level Input Voltage VIL Analog Switch OFF-state Current IS(OFF) Analog Switch ON-state Current IS(ON) Input Leakage Current II(LEAK) Quiescent Supply Current IQ TEST CONDITIONS VCC=2.0V VCC=4.5V VCC=6.0V VCC=9.0V VCC=2.0V VCC=4.5V VCC=6.0V VCC=9.0V VCC=10V, VEE=0V, VI=VIH or VIL |VS |=VCC - VEE VCC=10V, VEE=0V, VI=VIH or VIL |VS |=VCC - VEE VEE=0V VCC=6V VI=VCC or GND VCC=10V VI=VCC or GND VIS=VEE or VCC VOS=VCC or VEE UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw MIN 1.5 3.15 4.2 6.3 TYP 1.2 2.4 3.2 4.7 0.8 2.1 2.8 4.3 4 of 9 QW-R502-373.B U74HC4053  CMOS IC STATIC CHARACTERISTICS (Cont.) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT VEE=0V , IS=0.1mA (Note) VCC=2.0V Ω VIS=VCC to VEE VEE=0V, IS=1mA VCC=4.5V 100 180 Ω PEAK RON(PEAK) VIN=VIH or VIL VEE=0V, IS=1mA VCC=6.0V 90 160 Ω VEE=-4.5V, IS=1mA VCC=4.5V 70 130 Ω VEE=0V , IS=0.1mA (Note) VCC=2.0V 150 Ω ON-state VIS= VEE VEE=0V, IS=1mA VCC=4.5V 80 140 Ω Resistance VIN=VIH or VIL VEE=0V, IS=1mA VCC=6.0V 70 120 Ω VCC=4.5V 60 105 Ω VEE=-4.5V, IS=1mA RAIL RON(RAIL) VEE=0V , IS=0.1mA (Note) VCC=2.0V 150 Ω VIS= VCC VEE=0V, IS=1mA VCC=4.5V 90 160 Ω VIN=VIH or VIL VEE=0V, IS=1mA VCC=6.0V 80 140 Ω VEE=-4.5V, IS=1mA VCC=4.5V 65 120 Ω V =0V , I =0.1mA (Note) V =2.0V Ω Maximum ON-state EE S CC Resistance Variation VIS=VCC to VEE VEE=0V, IS=1mA VCC=4.5V 9 Ω ∆RON(MAX) Between Any Two VIN=VIH or VIL VEE=0V, IS=1mA VCC=6.0V 8 Ω Channels VEE=-4.5V, IS=1mA VCC=4.5V 6 Ω Note: At supply voltages (VCC - VEE) approaching 2.0 V the analog switch ON-resistance becomes extremely non-linear. Therefore it is recommended that these devices be used to transmit digital signals only, when using these supply voltages.  SYMBOL DYNAMIC CHARACTERISTICS (Ta=25°C, GND=0V, tR=tF=6ns, unless otherwise specified) PARAMETER SYMBOL TEST CONDITIONS MIN VCC=2.0V VEE=0V Propagation Delay Form VCC=4.5V tPHL/tPLH RL=∞ CL=50pF VIS to VOS VCC=6.0V VEE=-4.5V VCC=4.5V VCC=2.0V VEE=0V VCC=4.5V RL=1kΩ, CL=50pF VCC=6.0V E to Vos VEE=-4.5V VCC=4.5V RL=1kΩ, CL=15pF VEE=0V VCC=5.0V tPZH/tPZL Turn-ON Time VCC=2.0V VEE=0V VCC=4.5V RL=1kΩ, CL=50pF Sn to VOS VCC=6.0V VEE=-4.5V VCC=4.5V RL=1kΩ, CL=15pF VEE=0V VCC=5.0V VCC=2.0V VEE=0V VCC=4.5V RL=1kΩ, CL=50pF VCC=6.0V E to Vos VEE=-4.5V VCC=4.5V RL=1kΩ, CL=15pF VEE=0V VCC=5.0V Turn-OFF Time tPHZ/tPLZ VCC=2.0V VEE=0V VCC=4.5V RL=1kΩ, CL=50pF Sn to VOS VCC=6.0V VEE=-4.5V VCC=4.5V VCC=5.0V RL=1kΩ, CL=15pF VEE=0V Note: VIS is the input voltage at a nYn or nZ terminal, whichever is assigned as an input. VOS is the output voltage at a nYn or nZ terminal, whichever is assigned as an output. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw TYP MAX UNIT 15 60 ns 5 2 ns 4 10 ns 4 8 ns 60 220 ns 20 44 ns 16 37 ns 15 31 ns 17 ns 75 220 ns 25 44 ns 20 37 ns 15 31 ns 21 ns 63 210 ns 21 42 ns 17 36 ns 15 29 ns 18 ns 60 210 ns 20 42 ns 16 36 ns 15 29 ns 17 ns 5 of 9 QW-R502-373.B U74HC4053  CMOS IC TEST CIRCUITS AND WAVEFORMS For OFF-state current LOW From select input Yn A VIN=VCC or VEE nZ A VOUT=VEE or VCC VEE For ON-state current For RON UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 6 of 9 QW-R502-373.B U74HC4053  CMOS IC TEST CIRCUITS AND WAVEFORMS (Cont.) For AC performance VCC switch open VCC VIS VI RL VOS PULSE GENERATOR D.U.T CL RT GND VEE TEST SWITCH INPUT VIS VCC VEE VCC VEE pulse pulse tR,tF tPZH VEE 6ns tPZL VCC 6ns tPHZ VEE 6ns tPLZ VCC 6ns tPLH open 6ns tPHL open 6ns Note: Definitions for test circuit: RL = load resistance CL = load capacitance including jig and probe capacitance. RT = termination resistance should be equal to the output impedance ZO of the pulse generator. tR=tF=6 ns; when measuring fMAX, there is no constraint to tr and tf with 50% duty factor(
