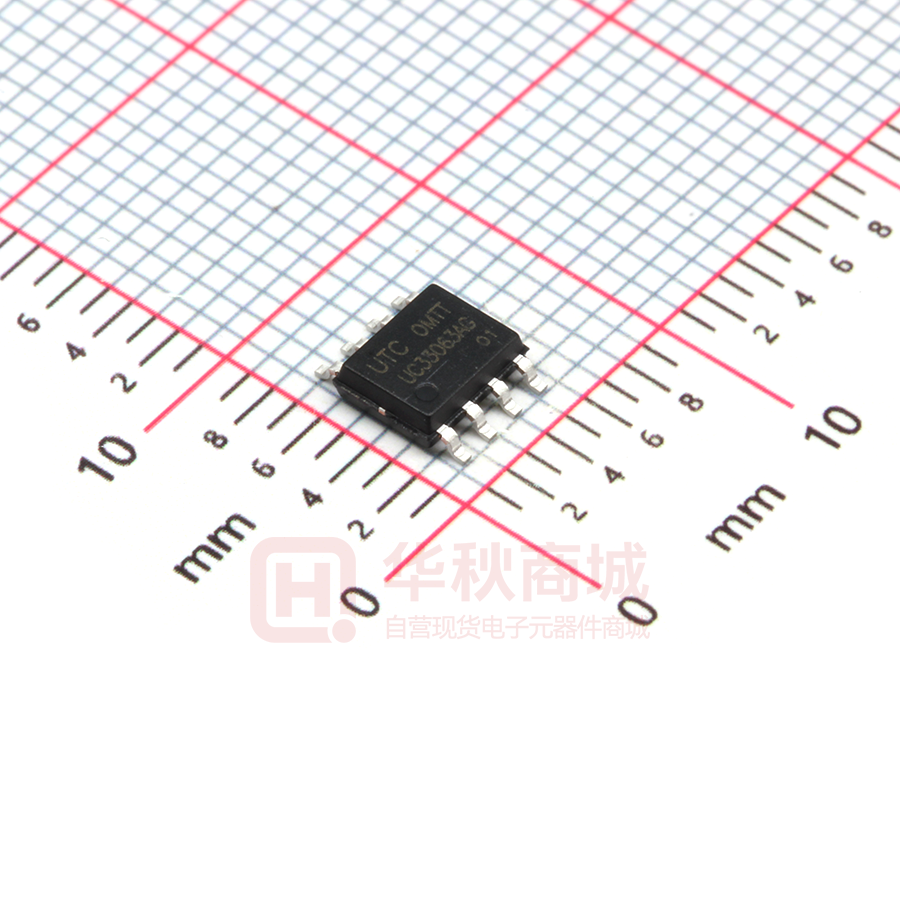

UC33063AG-S08-R

UNISONIC TECHNOLOGIES CO., LTD UC33063A LINEAR INTEGRATED CIRCUIT DC TO DC CONVERTER CONTROLLER  DESCRIPTION The UTC UC33063A is a monolithic regulator subsystem, intended for use as DC to DC converter. This device contains a temperature compensated band gap reference, a duty-cycle control oscillator, driver and high current output switch. It can be used for step down, step-up or inverting switching regulators as well as for series pass regulators.  FEATURES * Operation from 3.0V to 40V. * Short Circuit Current Limiting. * Low Standby Current. * Output Switch Current of 1.5A without External Transistors. * Frequency of Operation from 100Hz to 100kHz. * Step-up, Step-down or Inverting Switch Regulators.  ORDERING INFORMATION Ordering Number Lead Free Halogen Free UC33063AL-D08-T UC33063AG-D08-T UC33063AG-S08-R  Package Packing DIP-8 SOP-8 Tube Tape Reel MARKING DIP-8 www.unisonic.com.tw Copyright © 2014 Unisonic Technologies Co., Ltd SOP-8 1 of 9 QW-R103-044.C UC33063A LINEAR INTEGRATED CIRCUIT  PIN CONFIGURATION  PIN DESCRIPTION PIN NO 1 2 3 4 I/O I O 6 PIN NAME Switch Collector Switch Emitter Timing Capacitor GND Comparator Inverting Input VCC 7 IPEAK Sense I 8 Driver Collector I 5  DESCRIPTION Internal Darlington pairs TI collector Internal Darlington pairs TI emitter The value of selected capacitor controls the internal oscillator run rate Inverting input of comparator which can set & initiate the Darlington pairs output switch I Current sense input to monitor the voltage drop across an external resistor placed in series with VCC Internal Darlington pairs TI collector BLOCK DIAGRAM E Switch Collector T2 1 S Q R T1 Switch Emitter 8 Drive Collector 7 IPEAK Sense 6 Vcc 5 Comparator Inverting Input D C 2 A Is CT OSCILLATOR Timing Capacitor 3 COMP. GND 4 1.25VREF UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw B 2 of 9 QW-R103-044.C UC33063A  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS (TA=25C, unless otherwise specified) PARAMETER Supply Voltage Comparator Input Voltage Range Switch Collector Voltage Switch Emitter Voltage Switch Collector to Emitter Voltage Driver Collector Voltage Switch Current RATINGS UNIT 40 V -0.3 ~ +40 V 40 V 40 V 40 V 40 V 1.5 A DIP-8 1250 Power Dissipation (Ta=25C) PD mW SOP-8 800 Junction Temperature TJ +150 C Operating Temperature TOPR -40~ +90 C Storage Temperature TSTG -65 ~ +150 C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  SYMBOL VCC VIN(COMP) VC(SW) VE(SW) VCE(SW) VC(DR) ISW THERMAL DATA PARAMETER Junction to Ambient  SYMBOL DIP-8 SOP-8 RATINGS 100 150 θJA UNIT C/W ELECTRICAL CHARACTERISTICS (VCC=5.0V, TA=-40~+90C, unless otherwise specified) PARAMETER Oscillator Charging Current Discharging Current Oscillator Amplitude Discharge to Charge Current Ratio Current limit Sense Voltage Output Switch Saturation Voltage 1(Note) Saturation Voltage 2(Note) DC Current Gain(Note) Collector Off State Current(Note) Comparator Threshold Voltage Threshold Voltage Line Regulation Input Bias Current Total Device SYMBOL ICHG IDISCHG VOSC K VSENSE VCE(SAT)1 VCE(SAT)2 GI (DC) IC(OFF) VTHD VTHD II(BIAS) TEST CONDITIONS VCC=5 to 40V, Ta=25C VCC=5 to 40V, Ta=25C Ta=25C V7=VCC, Ta=25C ICHG=IDISCHG, Ta=25C ISW=1.0A, VC(DRIVER)=VC(SW) ISW=1.0A, VC(DRIVER)=50mA ISW=1.0A, VCE=5.0V, Ta=25C VCE=40.0V, Ta=25C VCC=3 ~ 40V VIN=0V MIN TYP MAX UNIT 22 140 31 190 0.5 6.1 300 42 260 7.5 350 mV 0.95 0.45 180 0.01 1.3 0.7 V V 100 A 1.21 1.24 1.29 2.0 5.0 50 400 V mV nA 5.2 250 50 VCC=5~40V, CT=0.001 V7=VCC, VC>VTHD, Pin2=GND Note: Output switch tests are performed under pulsed conditions to minimize power dissipation. Supply Current ICC UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2.7 4.0 A A V mA 3 of 9 QW-R103-044.C UC33063A  LINEAR INTEGRATED CIRCUIT STEP-UP CONVERTER 170μH L 8 1 180 S Q Q2 Q1 R 7 2 1N5819 IPK RSC 0.22 VIN12V OSC 6 + 100 CT 3 CT VCC + - Comp. 1.25V REF REG 5 1500pF 4 1.0μH R2 R1 2.2k 47k 330 + CO VOUT 28V/175mA VOUT + 100 Optional Filter Test Line Regulation Load Regulation Output Ripple Efficiency Output Ripple With Optional Filter Conditions VIN = 8.0V ~ 16V, IOUT = 175mA VIN = 12V, IOUT = 75mA ~ 175mA VIN = 12V, IOUT = 175mA VIN = 12V, IOUT = 175mA VIN = 12V, IOUT = 175mA UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw Results 30mV = ±0.05% 10mV = ±0.017% 400mVp-p 87.7% 40mVp-p 4 of 9 QW-R103-044.C UC33063A  LINEAR INTEGRATED CIRCUIT STEP-DOWN CONVERTER(Cont.) Test Line Regulation Load Regulation Output Ripple Short Circuit Current Efficiency Output Ripple With Optional Filter Conditions VIN = 15V ~ 25V, IOUT = 500mA VIN = 25V, IOUT = 50mA ~ 500mA VIN = 25V, IOUT = 500mA VIN = 25V, RL = 0.1Ω VIN = 25V, IOUT = 500mA VIN = 25V, IOUT = 500mA UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw Results 12mV = ±0.12% 3.0mV = ±0.03% 120mVp-p 1.1A 83.7% 40mVp-p 5 of 9 QW-R103-044.C UC33063A  LINEAR INTEGRATED CIRCUIT VOLTAGE INVERTING CONVERTER Test Line Regulation Load Regulation Output Ripple Short Circuit Current Efficiency Output Ripple With Optional Filter Conditions VIN = 4.5V ~ 6.0V, IOUT = 100mA VIN = 5.0V, IOUT = 10mA ~ 100mA VIN = 5.0V, IOUT = 100mA VIN = 5.0V, RL = 0.1Ω VIN = 5.0V, IOUT = 100mA VIN = 5.0V, IOUT = 100mA UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw Results 3.0mV = ±0.012% 0.022V = ±0.09% 500mVp-p 910mA 62.2% 70mVp-p 6 of 9 QW-R103-044.C UC33063A  LINEAR INTEGRATED CIRCUIT EXTERNAL CURRENT BOOST CONNECTIONS FOR IC PEAK GREATER THAN 1.5A UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 7 of 9 QW-R103-044.C UC33063A  LINEAR INTEGRATED CIRCUIT TYPICAL CHARACTERISTICS Emitter Follower Configuration Output Saturation Voltage versus Emitter Current 1.7 Common Emitter Configuration Output Switch Saturation Voltage versus Coilector Current 1.4 Darlington Connection 1.2 1.6 1.0 1.8 1.5 0.8 VCC = 5.0V 0.6 Pin 7 = VCC Pin 2,3,5 = GND 0.4 TA = 25°С 1.4 1.3 VCC = 5.0V Pin 1,7,8 = VCC Pin 3,5 = GND TA = 25°С 1.2 1.1 1.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 Emitter Current, IE (A) 0 0.2 0 380 360 0.2 0.4 0.6 0.8 1.0 1.2 1.4 Emitter Current, IE (A) 1.5 Standby Supply Current versus Supply Voltage 3.6 3.2 VCC = 5.0V ICHG = dischg 340 0.1 1.6 Current Limit Sense Voltage versus Temperature 400 Forced β = 20 2.8 2.4 320 2.0 300 1.6 280 1.2 260 CT = 1.0nF Pin 7 = VCC Pin 2 = GND 0.8 240 0.4 220 200 -55 0 0 -25 25 50 75 100 Ambient Temperaurent, TA (°С) 125 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 0 5 10 15 20 25 30 Supply Voltage, VCC (V) 35 40 8 of 9 QW-R103-044.C UC33063A  LINEAR INTEGRATED CIRCUIT DESIGN FORMULA TABLE CALCULATION tON tOFF STEP-DOWN STEP-UP VOLTAGE-INVERTING VOUT + VF VIN - VCE(SAT) (tON+tOFF)MAX 1 FMIN CT 4x10-5 tON ISW 2IOUT(MAX) RS 0.3/ISW 1 FMIN 4x10-5 tON 4x10-5 tON 0.3/ISW 0.3/ISW L(MIN) CO IOUT tON VRIPPLE(P-P) VCE(SAT) - Saturation voltage of the output switch. VF - Forward voltage drop of the ringback rectifier. The following power supply characteristics must be chosen: - Nominal input voltage. VIN VOUT - Desired output voltage, VOUT =1.25(1+R2/R1) IOUT - Desired output current. FMIN - Minimum desired output switching frequency at the selected values for VIN and IOUT. VRIPPLE(P-P) - Desired peak-to-peak output ripple voltage. In practice, the calculated value will need to be increased due to the capacitor equivalent series resistance and board layout. The ripple voltage should be kept to a low value since it will directly effect the line and load regulation. UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 9 of 9 QW-R103-044.C
