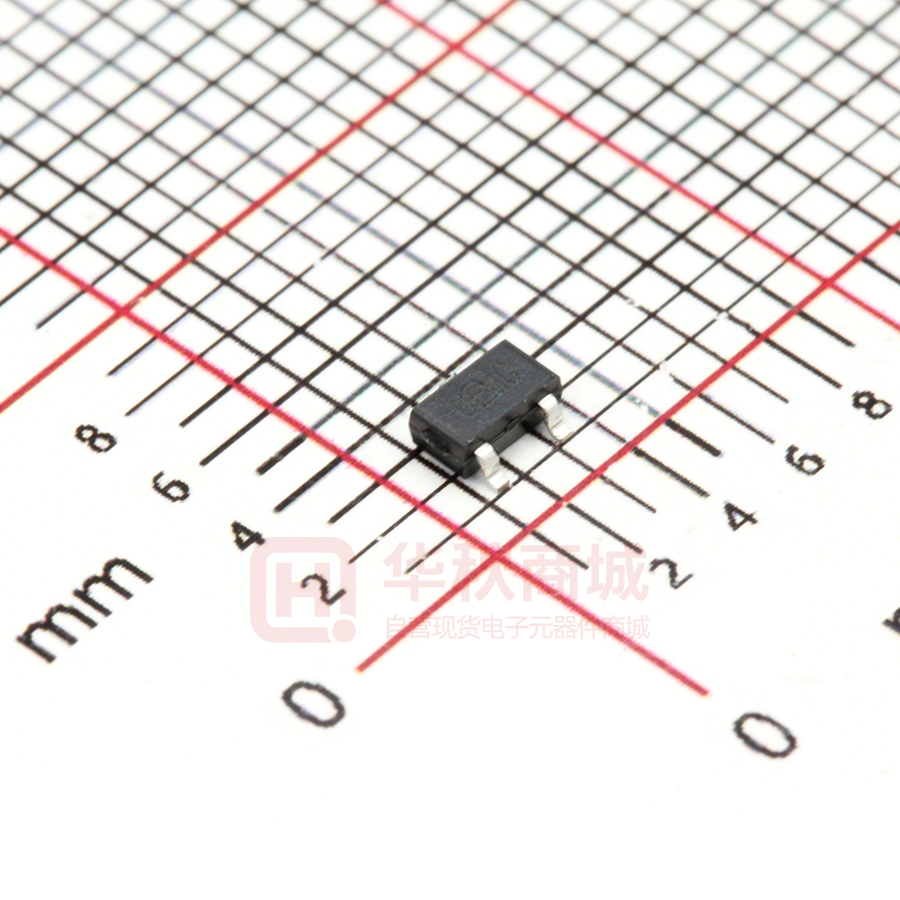

UHE4913G-AE3-R

UNISONIC TECHNOLOGIES CO., LTD UHE4913 CMOS IC LOW POWER HALL EFFECT SWITCH  DESCRIPTION UHE4913 is a low-power integrated Hall switch designed to sense the applied magnetic flux density and give a digital output, which indicates the present condition of the magnitude sensed. It is mainly designed for battery-powered system and hand-held equipment, such as cellular flip-phones and PDA’s, in which power consumption is one major concern. The typical power consumption of UHE4913 is down to 10μW in 2.7V supply. The output will be at the “High” level when no magnetic field is applied. When the applied magnetic flux density is stronger than the switching threshold, the output would be at the “Low” level.  FEATURES * Micropower Operation * 2.4V to 5.5V Battery Operation * Switching for both poles of magnet * Offset Canceling Technology * Superior Temperature Stability * Extremely Low Switch-Point Drift * Insensitive to Physical Stress  ORDERING INFORMATION Ordering Number UHE4913G-AE3-R Note: Pin Assignment: O: Output I: VDD  Package SOT-23 Pin Assignment 1 2 3 O I G Packing Tape Reel G: GND MARKING 3 UEMG 2 1 www.unisonic.com.tw Copyright © 2015Unisonic Technologies Co., Ltd 1 of 4 QW-R502-608.C UHE4913 CMOS IC  PIN CONFIGURATION  PIN DESCRIPTION PIN NAME PIN TYPE VOUT O Digital Output VDD I Power Supply GND G Ground Note: O=Output, I=Power Supply, G=Ground  PIN DESCRIPTION BLOCK DIAGRAM www.unisonic.com.tw Logic Control AMP Offset cancelling UNISONIC TECHNOLOGIES CO., LTD 2 of 4 QW-R502-608.C UHE4913  CMOS IC ABSOLUTE MAXIMUM RATING PARAMETER SYMBOL RATINGS UNIT Supply Voltage VDD 5.5 V Supply current IQ -1 ~ +2.5 mA Magnetic Flux Density B Unlimited mT Junction Temperature TJ 150 °C Operation Temperature TOPR -40 ~ +85 °C Storage Temperature TSTG -40 ~ +150 °C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  RECOMMENDED OPERATING CONDITIONS (TA=25°C) PARAMETER Supply Voltage Output Voltage Ambient Temperature  CONDITIONS Operating MIN 2.4 -0.3 -40 TYP 2.7 2.7 25 MAX 5.5 5.5 85 UNIT V V °C MIN TYP 0.1 0.01 1.1 2.5 3 50 130 0.04 0.5 0.1 MAX UNIT V μA mA μA μA μs ms % μs μs ELECTRICAL CHARACTERISTICS (TA=25°C) PARAMETER Output Saturation Voltage Output Leakage Current Supply Current Operating Time Standby Time Duty Cycle Output Rise Time Output Fall Time  SYMBOL VDD VOUT TA SYMBOL VSAT IOFF IDD(EN) IDD(DIS) IDD(AVG) TOP TSD D.C. tR tF CONDITIONS VDD=2.7V VDD=2.7V VDD=2.7V RL=2.7KΩ,CL=10PF RL=2.7KΩ,CL=10PF 20 1 1 MAGNETIC CHARACTERISTICS ( TA=25°C,VDD=2.7V) PARAMETER Operation Points Release Points Hysteresis SYMBOL |BOP| |BRP| |BOP–BRP| MIN 20 12 2 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw TYP 35 27 8 MAX 50 42 16 UNIT Gauss 3 of 4 QW-R502-608.C UHE4913  TYPICAL APPLICATION CIRCUIT  MAGNETIC FLUX CMOS IC UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 4 of 4 QW-R502-608.C
