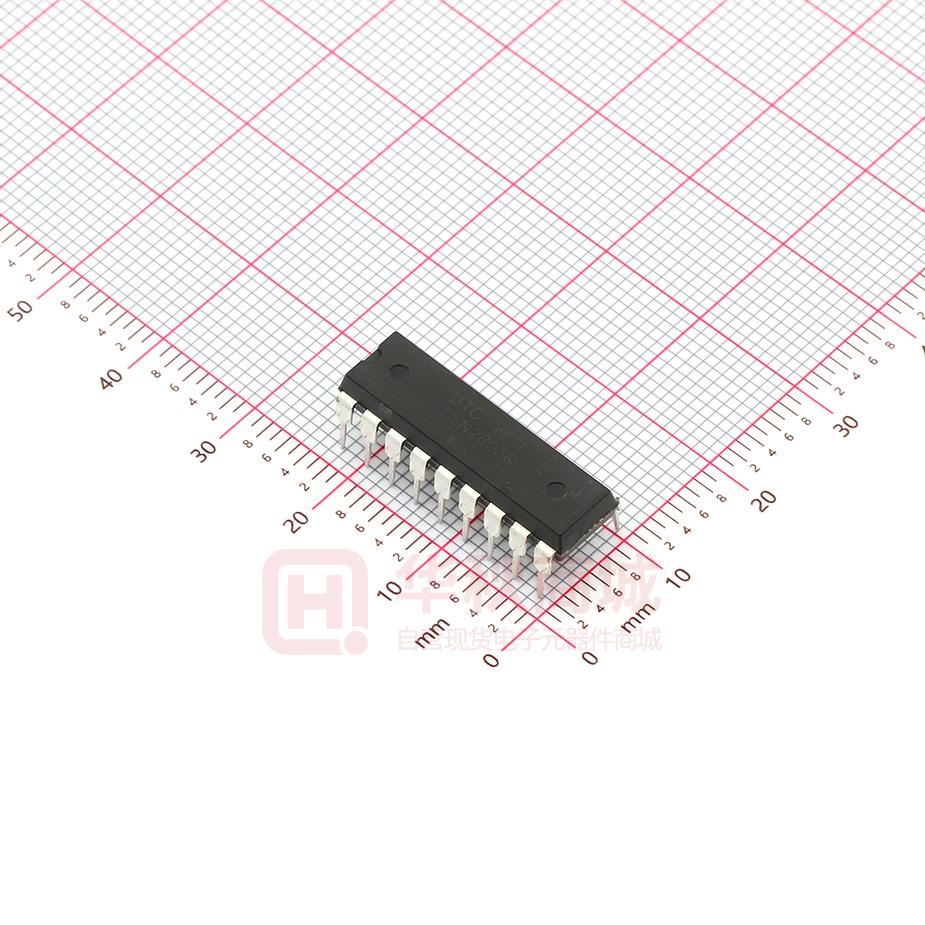

ULN2803G-D18-T

UNISONIC TECHNOLOGIES CO., LTD ULN2803 LINEAR INTEGRATED CIRCUIT EIGHT DARLINGTON ARRAYS  DESCRIPTION DIP-18 The UTC ULN2803 is high-voltage, high-current Darlington drivers comprised of eight NPN Darlington pairs.  FEATURES *Output current (single output) 500mA MAX. *High sustaining voltage output 50V MIN. *Output clamp diodes *Inputs compatible with various types of logic SOP-18 TSSOP-20  ORDERING INFORMATION Ordering Number ULN2803G-D18-T ULN2803G-S18-R ULN2803G-P20-R  Package DIP-18 SOP-18 TSSOP-20 Packing Tube Tape Reel Tape Reel MARKING DIP-18 SOP-18 TSSOP-20 www.unisonic.com.tw Copyright © 2015 Unisonic Technologies Co., Ltd 1 of 6 QW-R113-004.I ULN2803  LINEAR INTEGRATED CIRCUIT PIN CONFIGURATIONS NC 1 20 NC IN 1 18 OUT IN 2 19 OUT IN 2 17 OUT IN 3 18 OUT IN 3 16 OUT IN 4 17 OUT IN 4 15 OUT IN 5 16 OUT IN 5 14 OUT IN 6 15 OUT IN 6 13 OUT IN 7 14 OUT IN 7 12 OUT IN 8 13 OUT IN 8 11 OUT IN 9 12 OUT 11 COMMON FREE WHEELING DIODES GND 9 10 COMMON FREE WHEELING DIODES GND 10 TSSOP-20 DIP-18/SOP-18  SCHEMATICS (EACH DRIVER) COMMON INPUT OUTPUT 2.7kΩ 7.2kΩ 3kΩ GND Note: The input and output parasitic diodes cannot be used as clamp diodes. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 6 QW-R113-004.I ULN2803  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS PARAMETER Input Voltage Output Sustaining Voltage Output Current Clamp Diode Reverse Voltage Clamp Diode Forward Current SYMBOL VIN VCE (SUS) IOUT VR IF DIP-18 SOP-18 TSSOP-20 Power Dissipation PD RATINGS -0.5~30 -0.5~50 500 50 500 1.47 0.54/0.625(Note) 0.52 -40 ~ +85 -40 ~ +150 UNIT V V mA/ch V mA W Operating Temperature TOPR C Storage Temperature TSTG C Notes: 1. On glass epoxy PCB (30x30x1.6mm Cu 50%) 2. Absolute maximum ratings are stress ratings only and functional device operation is not implied. The device could be damaged beyond Absolute maximum ratings.  ELECTRICAL CHARACTERISTICS (TA=25°C, unless otherwise specified) SYMBOL TEST CIRCUIT ICEX 1 VCE(SAT) 2 IIN(ON) IIN(OFF) 3 4 VIN(ON) 5 Clamp Diode Reverse Current IR 6 Clamp Diode Forward Voltage Input Capacitance Turn-On Delay Turn-Off Delay VF CIN tON tOFF 7 PARAMETER Output Leakage Current Collector-Emitter Saturation Voltage Input Current ON OFF Input Voltage (output on) 8 8 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw TEST CONDITIONS VCE=50V,TA=25C VCE=50V,TA=85C IOUT=350mA,IIN=500A IOUT=200mA,IIN=350A IOUT=100mA,IIN=250A VIN =3.85V,IOUT=350mA IOUT=500A, TA=85C VCE=2.0V IOUT=200mA IOUT=250mA IOUT=300mA VR=50V, TA=25C VR=50V, TA=85C IF=350mA VOUT=50V,RL=125,CL=15pF VOUT=50V,RL=125,CL=15pF MIN 50 TYP MAX UNIT 1.3 1.1 0.9 0.93 65 15 0.1 0.2 50 100 1.6 1.3 1.1 1.35 2.4 2.7 3.0 50 100 2.0 25 1 1 μA V mA μA V μA V pF μS μS 3 of 6 QW-R113-004.I ULN2803  LINEAR INTEGRATED CIRCUIT TEST CIRCUIT 1. ICEX 2. VCE (sat), hFE 3. IIN (ON) OPEN OPEN ICEX OPEN IIN IIN (ON) IOUT OPEN VCE VIN OPEN VCE, VCE (sat) VIN hFE = 4. IIN (OFF) IOUT IIN 5. VIN (ON) 6. IR OPEN OPEN IOUT IIN (OFF) IR IIN IOUT VIN (ON) VR OPEN VCE OPEN 7. VF VF IF OPEN OPEN 8. tON, tOFF PULSE GENERATOR (Note 1) RL OUTPUT (Note 2) CL = 15pF (Note 3) tr INPUT VOUT OPEN INPUT tf 90% 50% 10% 50μs tON VIH 90% 50% 10% 0 tOFF VOH OUTPUT 50% 50% VOL Notes: 1. Pulse width 50s, duty cycle 10% Output impedance 50, tr
