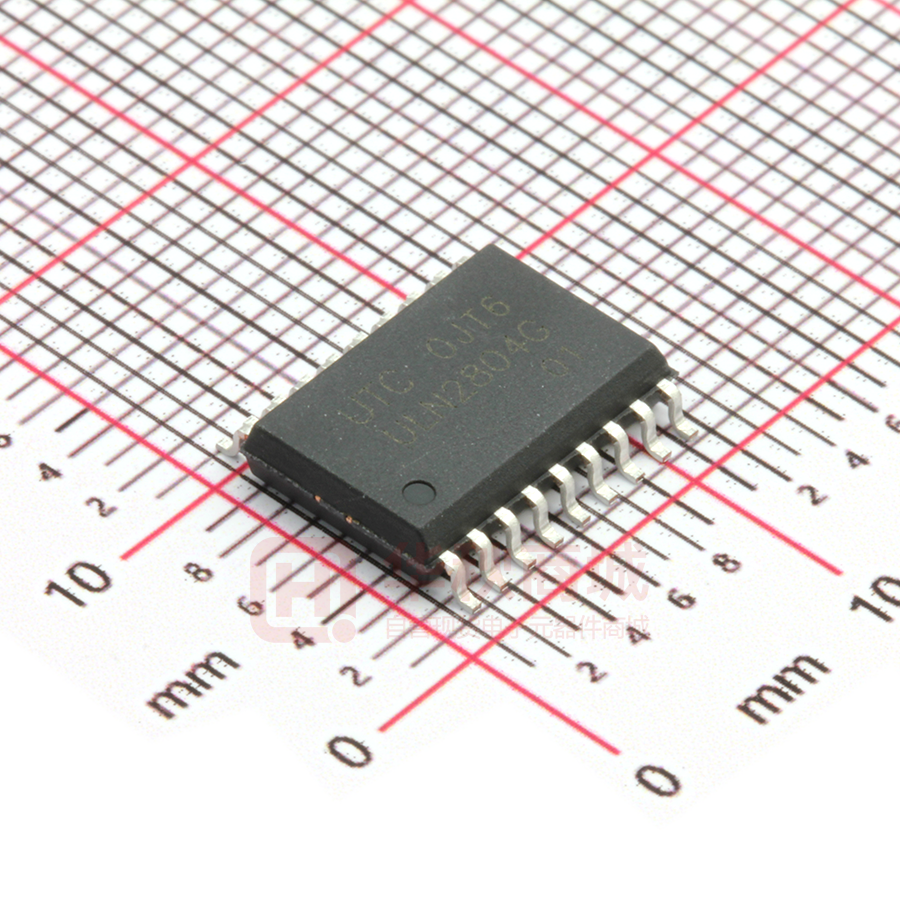

ULN2804G-S18-R

UNISONIC TECHNOLOGIES CO., LTD ULN2804 LINEAR INTEGRATED CIRCUIT EIGHT HIGH VOLTAGE, HIGH CURRENT DARLINGTON ARRAYS SOP-18  DESCRIPTION The ULN2804 is a high voltage, high current Darlington array comprised of eight NPN Darlington pairs. The device features open-collector outputs with suppression diodes for inductive loads and is ideally suited for interfacing between low-level logic circuitry and high power loads. Typical loads including relays DC motors, filament lamps, LED displays, printer hammers and high power buffers.  DIP-18 FEATURE * Eight Darlingtons with common emitters * TTL, PMOS or CMOS Compatible inputs * Peak output current to 500mA * Output voltage to 50V * Clamp diodes for transient suppression * DIP-28 and SOP-18 packages  ORDERING INFORMATION Order Number ULN2804G-D18-T ULN2804G-S18-R ULN2804G-S18-T  Package DIP-18 SOP-18 SOP-18 Packing Tube Tape Reel Tube MARKING DIP-18 www.unisonic.com.tw Copyright © 2014 Unisonic Technologies Co., Ltd SOP-18 1 of 5 QW-R113-002.B ULN2804   LINEAR INTEGRATED CIRCUIT PIN CONFIGURATIONS IN1 1 18 OUT1 IN2 2 17 OUT2 IN3 3 16 OUT3 IN4 4 15 OUT4 IN5 5 14 OUT5 IN6 6 13 OUT6 IN7 7 12 OUT7 IN8 8 11 OUT8 GND 9 10 COM SCHEMATICS UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 5 QW-R113-002.B ULN2804  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS PARAMETER Input Voltage Output Voltage Collector Current – Continuous Base Current – Continuous RATINGS UNIT 30 V 50 V 500 mA 25 mA DIP-18 1.5 W Power Dissipation PD SOP-18 0.95 W Junction Temperature TJ +120 C Operating Ambient Temperature TOPR 0 ~ +70 C Storage Temperature TSTG -55 ~ +150 C Note Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied  SYMBOL VIN VOUT IC IB THERMAL DATA PARAMETER SYMBOL Thermal resistance from junction to Ambient  DIP-18 SOP-18 θJA RATING 60 80 UNIT C /W C /W ELECTRICAL CHARACTERISTICS (Ta = 25C, unless otherwise specified.) SYMBOL TEST FIGURE Collector-Emitter Saturation Voltage VCE(SAT) 1 Input Voltage VIN(ON) 2 Clamp Diode Forward Voltage VF Output Leakage Current ICEX 3 4a 4b PARAMETER Input Current ON IIN(ON) 5 OFF IIN(OFF) 6 IR 7 hFE CIN tON tOFF 8 8 Clamp Diode Reverse Current DC Current Gain Input Capacitance Turn-On Delay Turn-Off Delay UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw TEST CONDITIONS MIN TYP MAX UNIT IOUT=350mA, IIN=500A IOUT=200mA, IIN=350A IOUT=100mA,IIN=250A IOUT=125mA IOUT=200mA VCE=2.0V IOUT=275mA IOUT=350mA IF=350mA VOUT=50V,Ta=70C VOUT=50V,Ta=70C,VIN =1.0V VIN =5V VIN =12V IOUT=500A, Ta=70C 50 VR=50V, Ta=25C VR=50V, Ta=70C VOUT=2V, IOUT=350mA 1000 1.3 1.1 0.9 1.6 1.3 1.1 5.0 6.0 7.0 8.0 2.0 100 500 0.5 1.45 1.5 0.35 1.0 100 15 0.25 0.25 V V V V V V V V A 50 100 mA mA A A A 25 1 1 pF S S 3 of 5 QW-R113-002.B ULN2804 LINEAR INTEGRATED CIRCUIT TEST FIGURES Figure 1. Figure 2. Figure 3. OPEN OPEN IF IC IB hFE = V VF OPEN ↑ IB VCE V ↑ IC V VCE V IC ↑ Figure 4b. Figure 4a. Figure 5. VCE OPEN OPEN OPEN VCE A A ICEX OPEN IIN ICEX OPEN Figure 7. OPEN VR VCE A IIN A VIN VIN Figure 6. ↑  A IC IR A OPEN Figure 8. PULSE GENERATOR (Note 1) RL OUTPUT CL = 15pF (Note 3) (Note 2) tR INPUT VOUT OPEN INPUT tF 90% 50% 10% 50μs VIH 90% 50% 10% tON 0 tOFF VOH OUTPUT 50% 50% VOL Note1: Pulse width 50s, duty cycle 10% Output impedance 50, tR≤5ns, tF≤10ns Note2: R1: 0, VIH: 3V Note3: CL includes probe and jig capacitance. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 4 of 5 QW-R113-002.B ULN2804 LINEAR INTEGRATED CIRCUIT TYPICAL CHARACTERISTICS  Output Current vs. Saturation Voltage Output Current vs. Input Current 4.0 Collector Current, IC (mA) Collector Current, IC (mA) 4.5 3.5 3.0 IB=250μA 2.5 IB=350μA 2.0 IB=500μA 1.5 600 400 200 1.0 0.5 0 0 0.2 0.4 0.6 1.0 0.8 1.2 1.6 1.4 0 1.8 2.0 0 200 400 600 800 Saturation Voltage, VCE(SAT) (V) Input Current, IIN (mA) Input Current vs. Input Voltage Power Dissipation vs. Ambient Temperature 2.0 Power Dissipation, PD (W) Input Current, IIN (mA) 2.0 1.5 1.0 1.5 DIP-18 1.0 0.5 SOP-18 0.5 0 0 2 4 6 8 10 12 14 16 18 Input Voltage, VIN (V) 0 0 50 100 150 Ambient Temperature, Ta (°C) UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 5 of 5 QW-R113-002.B
