70TPS12

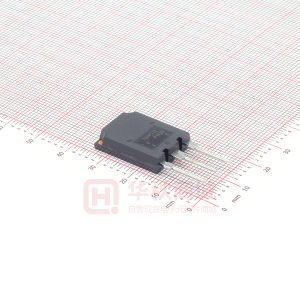

70TPS.. High Voltage Series Vishay High Power Products Phase Control SCR, 70 A DESCRIPTION/FEATURES 2 (A) The 70TPS.. High Voltage Series of silicon controlled rectifiers are specifically designed for high and medium power switching and phase control applications. Typical applications are in input rectification (soft start) or AC-switches or high current crow-bar as well as others phase-control circuits. Super-247 1 (K) (G) 3 PRODUCT SUMMARY VT at 100 A ITSM VRRM < 1.4 V 1400 A 1200/1600 V These products are designed to be used with Vishay HPP input diodes, switches and output rectifiers which are available in identical package outlines. This product has been designed and qualified for industrial level. MAJOR RATINGS AND CHARACTERISTICS PARAMETER IT(AV) IRMS VRRM/VDRM ITSM VT dV/dt dI/dt TJ 100 A, TJ = 25 °C TEST CONDITIONS Sinusoidal waveform Lead current limitation Range VALUES 70 A 75 1200/1600 1400 1.4 500 150 - 40 to 125 V A V V/µs A/µs °C UNITS VOLTAGE RATINGS PART NUMBER VRRM/VDRM, MAXIMUM REPETITIVE PEAK AND OFF-STATE VOLTAGE V 1200 1600 VRSM, MAXIMUM NON-REPETITIVE PEAK REVERSE VOLTAGE V 1300 15 70TPS16 1700 IRRM/IDRM AT 125 °C mA 70TPS12 Document Number: 93712 Revision: 02-Jun-08 For technical questions, contact: diodes-tech@vishay.com www.vishay.com 1 70TPS.. High Voltage Series Vishay High Power Products Phase Control SCR, 70 A ABSOLUTE MAXIMUM RATINGS PARAMETER Maximum average on-state current Maximum continuous RMS on-state current as AC switch Maximum peak, one-cycle non-repetitive surge current Maximum I2t for fusing Maximum I2√t for fusing Low level value of threshold voltage High level value of threshold voltage Low level value of on-state slope resistance High level value of on-state slope resistance Maximum peak on-state voltage Maximum rate of rise of turned-on current Maximum holding current Maximum latching current Maximum reverse and direct leakage current Maximum rate of rise of off-state voltage SYMBOL IT(AV) IT(RMS) ITSM I2 t I2√t VT(TO)1 VT(TO)2 rt1 rt2 VTM dI/dt IH IL IRRM/IDRM dV/dt 100 A, TJ = 25 °C TJ = 25 °C TJ = 25 °C TJ = 25 °C TJ = 125 °C TJ = 125 °C VR = Rated VRRM/VDRM TJ = 125 °C TEST CONDITIONS TC = 82 °C, 180° conduction half sine wave Lead current limitation 10 ms sine pulse, rated VRRM applied 10 ms sine pulse, no voltage reapplied 10 ms sine pulse, rated VRRM applied 10 ms sine pulse, no voltage reapplied t = 0.1 to 10 ms, no voltage reapplied Initial TJ = TJ maximum VALUES 70 75 1200 1400 7200 10 200 102 000 0.916 1.21 4.138 3.43 1.4 150 200 400 1.0 15 500 V/µs mA A2 s A2√s V mΩ V A/µs A UNITS TRIGGERING PARAMETER Maximum peak gate power Maximum average gate power Maximum peak gate current Maximum peak negative gate voltage Maximum required DC gate voltage to trigger SYMBOL PGM PG(AV) IGM - VGM TJ = - 40 °C VGT TJ = 25 °C TJ = 125 °C TJ = - 40 °C Maximum required DC gate current to trigger IGT TJ = 25 °C TJ = 125 °C Maximum DC gate voltage not to trigger Maximum DC gate current not to trigger VGD IGD TJ = 120 °C, VDRM = Rated value Anode supply = 6 V resistive load T = 30 µs TEST CONDITIONS VALUES 10 2.5 2.5 10 4.0 1.5 1.1 270 100 80 0.25 6 V mA mA V UNITS W A www.vishay.com 2 For technical questions, contact: diodes-tech@vishay.com Document Number: 93712 Revision: 02-Jun-08 70TPS.. High Voltage Series Phase Control SCR, 70 A Vishay High Power Products THERMAL AND MECHANICAL SPECIFICATIONS PARAMETER Maximum junction temperature range Maximum storage temperature range Maximum thermal resistance, junction to case Maximum thermal resistance, junction to ambient Typical thermal resistance, case to heatsink Approximate weight minimum maximum Case style Super-247 SYMBOL TJ TStg RthJC RthJA RthCS Mounting surface, smooth and greased DC operation TEST CONDITIONS VALUES - 40 to 125 - 40 to 150 0.27 40 0.2 6 0.21 6 (5) 12 (10) g oz. kgf · cm (lbf · in) °C/W UNITS °C Mounting torque Marking device 70TPS12 70TPS16 ΔRthJ-hs CONDUCTION PER JUNCTION DEVICE 70TPS SINE HALF WAVE CONDUCTION 180° 0.078 120° 0.092 90° 0.117 60° 0.172 30° 0.302 RECTANGULAR WAVE CONDUCTION 180° 0.053 120° 0.092 90° 0.125 60° 0.180 30° 0.306 UNITS °C/W Note • The table above shows the increment of thermal resistance RthJ-hs when devices operate at different conduction angles than DC Document Number: 93712 Revision: 02-Jun-08 For technical questions, contact: diodes-tech@vishay.com www.vishay.com 3 70TPS.. High Voltage Series Vishay High Power Products Phase Control SCR, 70 A Maximum Allowable Case Temperature (°C) Maximum Average On-state Power Loss (W) 130 120 110 70TPS.. Series RthJC (DC) = 0.27 ˚C/W 150 120 90 60 30 0 0 15 30 45 60 75 Average On-state Current (A) Conduction Angle 180˚ 120˚ 90˚ 60˚ 30˚ RMS Limit 100 90 80 70 0 30˚ 60˚ 90˚ 120˚ 180˚ DC Conduction Period 70TPS.. Series Tj = 125˚C 10 20 30 40 50 60 70 80 Average On-state Current (A) Fig. 1 - Current Rating Characteristics Maximum Allowable Case Temperature (°C) Peak Half Sine Wave On-state Current (A) Fig. 4 - On-State Power Loss Characteristics 130 120 110 70TPS.. Series RthJC (DC) = 0.27 ˚C/W DC Conduction Period 1300 1200 1100 1000 900 800 700 600 500 1 At Any Rated Load Condition And With Rated Vrrm Applied Following Surge. Initial Tj = 125˚C @ 60 Hz 0.0083 s @ 50 Hz 0.0100 s 100 180˚ 90 80 30˚ 60˚ 70 60 0 90˚ 120˚ 70TPS.. Series 10 20 30 40 50 60 70 80 90 Average On-state Current (A) 10 100 Number Of Equal Amplitude Half Cycle Current Pulses (N) Fig. 2 - Current Rating Characteristics Maximum Average On-state Power Loss (W) Peak Half Sine Wave On-state Current (A) Fig. 5 - Maximum Non-Repetitive Surge Current 140 120 100 80 60 40 20 0 0 180˚ 120˚ 90˚ 60˚ 30˚ RMS Limit 1500 1400 Maximum Non Repetitive Surge Current Versus Pulse Train Duration. Control Of Conduction May Not Be Maintained. 1300 Initial Tj = 125˚C No Voltage Reapplied 1200 Rated Vrrm Reapplied 1100 1000 900 800 700 600 70TPS.. Series Conduction Angle 70TPS.. Series Tj = 125˚C 10 20 30 40 50 60 70 500 0.01 0.1 Pulse Train Duration (s) 1 Average On-state Current (A) Fig. 3 - On-State Power Loss Characteristics Fig. 6 - Maximum Non-Repetitive Surge Current www.vishay.com 4 For technical questions, contact: diodes-tech@vishay.com Document Number: 93712 Revision: 02-Jun-08 70TPS.. High Voltage Series Phase Control SCR, 70 A Vishay High Power Products 1000 Instantaneous On-state Current (A) Tj = 125˚C 100 10 Tj = 25˚C 70TPS.. Series 1 0.5 1 1.5 2 2.5 3 3.5 Instantaneous On-state Voltage (A) Fig. 7 - On-State Voltage Drop Characteristics 100 Instantaneous Gate Voltage (V) 10 Rectangular gate pulse a)Recommended load line for rated di/dt: 20 V, 30 ohms tr = 0.5 µs, tp >= 6 µs b)Recommended load line for = 6 µs (1) PGM = 100 W, tp = 500 µs (2) PGM = 50 W, tp = 1 ms (3) PGM = 20 W, tp = 25 ms (4) PGM = 10 W, tp = 5 ms (a) (b) TJ = -40 ˚C TJ = 25 ˚C TJ = 125 ˚C 1 VGD IGD (4) (3) (2) (1) 0.1 0.001 70TPS.. Series Frequency Limited by PG(AV) 0.01 0.1 1 10 Instantaneous Gate Current (A) 100 1000 Fig. 8 - Gate Characteristics Transient Thermal Impedance ZthJC (°C/W) 1 Steady State Value (DC Operation) 0.1 D = 0.50 D = 0.33 D = 0.25 D = 0.17 D = 0.08 Single Pulse 70TPS.. Series 0.01 0.0001 0.001 0.01 0.1 Square Wave Pulse Duration (s) 1 10 Fig. 9 - Thermal Impedance ZthJC Characteristics Document Number: 93712 Revision: 02-Jun-08 For technical questions, contact: diodes-tech@vishay.com www.vishay.com 5 70TPS.. High Voltage Series Vishay High Power Products Phase Control SCR, 70 A ORDERING INFORMATION TABLE Device code 70 1 1 2 3 4 5 6 T 2 - P 3 S 4 16 5 6 Current rating (70 = 70 A) Circuit configuration: T = Thyristor Package: P = Super-247 Type of silicon: S = Standard recovery rectifier Voltage code x 100 = VRRM None = Standard production PbF = Lead (Pb)-free 12 = 1200 V 16 = 1600 V LINKS TO RELATED DOCUMENTS Dimensions Part marking information http://www.vishay.com/doc?95073 http://www.vishay.com/doc?95070 www.vishay.com 6 For technical questions, contact: diodes-tech@vishay.com Document Number: 93712 Revision: 02-Jun-08 Legal Disclaimer Notice Vishay Disclaimer All product specifications and data are subject to change without notice. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in any other disclosure relating to any product. Vishay disclaims any and all liability arising out of the use or application of any product described herein or of any information provided herein to the maximum extent permitted by law. The product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein, which apply to these products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless otherwise expressly indicated. Customers using or selling Vishay products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Vishay for any damages arising or resulting from such use or sale. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. Product names and markings noted herein may be trademarks of their respective owners. Document Number: 91000 Revision: 18-Jul-08 www.vishay.com 1
