BAT54W-V_10

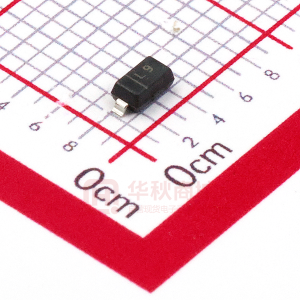

BAT54W-V Vishay Semiconductors Small Signal Schottky Diode Features • These diodes feature very low turn-on voltage and fast switching • These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges • AEC-Q101 qualified • Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC 17431 Mechanical Data Case: SOD-123 Weight: approx. 10.3 mg Packaging codes/options: GS18/10k per 13" reel (8 mm tape), 10k/box GS08/3k per 7" reel (8 mm tape), 15k/box Parts Table Part BAT54W-V Ordering code BAT54W-V-GS18 or BAT54W-V-GS08 Type marking L4 Remarks Tape and reel Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified Parameter Repetitive peak reverse voltage Forward continuous current Repetitive peak forward current Surge forward current Power dissipation1) Note 1) Valid provided that electrodes are kept at ambient temperature tp < 1 s, δ < 0.5 tp < 10 ms Test condition Symbol VRRM IF IFRM IFSM Ptot Value 30 200 1) Unit V mA mA mA mW 300 1) 600 1) 150 1) Thermal Characteristics Tamb = 25 °C, unless otherwise specified Parameter Thermal resistance junction to ambient air Maximum junction temperature Storage temperature range Note 1) Valid provided that electrodes are kept at ambient temperature Document Number 85666 Rev. 1.3, 05-Aug-10 For technical questions within your region, please contact one of the following: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com www.vishay.com 1 Test condition Symbol RthJA Tj Tstg Value 650 1) 125 - 65 to + 150 Unit K/W °C °C BAT54W-V Vishay Semiconductors Electrical Characteristics Tamb = 25 °C, unless otherwise specified Parameter Reverse breakdown voltage Leakage current 1) Test condition tested with 100 µA pulses V R = 25 V IF = 0.1 mA IF = 1 m A Forward voltage 1) Symbol V(BR) IR VF VF VF VF VF CD trr Min. 30 Typ. Max. 2 240 320 400 500 800 10 5 Unit V µA mV mV mV mV mV pF ns IF = 10 mA IF = 30 mA IF = 100 mA Diode capacitance Reverse recovery time Note 1) Pulse test: tp < 300 µs, θ < 2 % VR = 1 V, f = 1 MHz IF = IR = 10 mA; IR = 1 mA; RL = 100 Ω Typical Characteristics Tamb = 25 °C, unless otherwise specified 1000 I R - Reverse Current (µA) T j = 125 °C - 40 °C T j = 125 °C 100 10 1 25 °C 0.1 0.01 0.2 1.2 0.4 0.6 0.8 1 VF - Forward Voltage (V) 1.4 18869 1000 I F - Forward Current (mA) 100 10 1 0.1 0.01 0 18867 100 °C 75 °C 50 °C 25 °C 0 5 10 15 20 25 VR - Reverse Voltage (V) 30 Figure 1. Typical Forward Current vs. Forward Voltage vs. Various Temperatures Figure 3. Typical Reverse Current vs. Reverse Voltage vs. Various Temperatures 14 C D - Typical Capacitance (pF) 12 10 8 6 4 2 0 0 18868 4 12 16 20 24 8 VR - Reverse Voltage (V) 28 Figure 2. Typical Capacitance vs. Reverse Applied Voltage www.vishay.com 2 For technical questions within your region, please contact one of the following: Document Number 85666 DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com Rev. 1.3, 05-Aug-10 BAT54W-V Vishay Semiconductors Package Dimensions in millimeters (inches): SOD-123 0.1 (0.004) max. 1.35 (0.053) 8° 0.45 (0.018) 0.25 (0.010) 0.5 (0.020) ref. Cathode bar 2.85 (0.112) 2.55 (0.100) 0.15 (0.006) 0.10 (0.004) 1 (0.039) 0.2 (0.008) 0° to Mounting Pad Layout 0.85 (0.033) 0.85 (0.033) 0.65 (0.026) 0.45 (0.018) 3.85 (0.152) 3.55 (0.140) 1.40 (0.055) 1.7 (0.067) 2.5 (0.098) Rev. 4 - Date: 24. Sep. 2009 Document no.: S8-V-3910.01-001 (4) 17432 Document Number 85666 Rev. 1.3, 05-Aug-10 For technical questions within your region, please contact one of the following: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com www.vishay.com 3 0.85 (0.033) Legal Disclaimer Notice Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. Document Number: 91000 Revision: 11-Mar-11 www.vishay.com 1
