BYS10-25

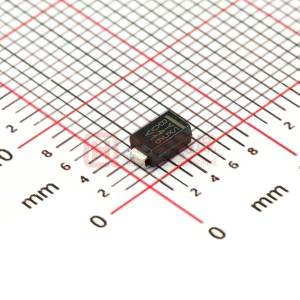

BYS10-25 thru BYS10-45 Vishay General Semiconductor Surface Mount Schottky Barrier Rectifier FEATURES • Low profile package • Ideal for automated placement • Guardring for overvoltage protection • Low power losses, high efficiency • Very low switching losses • High surge capability • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C DO-214AC (SMA) • AEC-Q101 qualified • Compliant to RoHS directive 2002/95/EC accordance to WEEE 2002/96/EC and in • Find out more about Vishay’s Automotive Grade Product requirements at: www.vishay.com/applications TYPICAL APPLICATIONS PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. 1.5 A 25 V to 45 V 40 A 0.50 V 150 °C For use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications. MECHANICAL DATA Case: DO-214AC (SMA) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS compliant, commercial grade Base P/NHE3 - RoHS compliant, automotive grade Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix meets JESD 201 class 2 whisker test Polarity: Color band denotes the cathode end MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) PARAMETER Device marking code Maximum repetitive peak reverse voltage Maximum average forward rectified current Peak forward surge current single half sine-wave superimposed on rated load Junction and storage temperature range 8.3 ms 10 ms IFSM TJ, TSTG VRRM IF(AV) SYMBOL BYS10-25 BYS 025 25 BYS10-35 BYS 035 35 1.5 40 A 30 - 65 to + 150 °C BYS10-45 BYS 045 45 V A UNIT Document Number: 86013 Revision: 19-May-10 For technical questions within your region, please contact one of the following: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com www.vishay.com 1 BYS10-25 thru BYS10-45 Vishay General Semiconductor ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER Maximum instantaneous forward voltage (1) Maximum DC reverse current (1) TEST CONDITIONS 1.0 A VRRM TJ = 25 °C TJ = 100 °C SYMBOL VF IR BYS10-25 BYS10-35 500 500 10 BYS10-45 UNIT mV μA mA Note (1) Pulse test: 300 μs pulse width, 1 % duty cycle THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER Maximum thermal resistance, junction to lead SYMBOL RθJL RθJA (1) Maximum thermal resistance, junction to ambient RθJA (2) RθJA (3) Notes (1) Mounted on epoxy-glass hard tissue (2) Mounted on epoxy-glass hard tissue, 50 mm2 35 μm Cu (3) Mounted on Al-oxide-ceramic (Al O ), 50 mm2 35 μm Cu 23 BYS10-25 BYS10-35 25 150 125 100 °C/W BYS10-45 UNIT °C/W ORDERING INFORMATION (Example) PREFERRED P/N BYS10-45-E3/TR BYS10-45-E3/TR3 BYS10-45HE3/TR BYS10-45HE3/TR3 Note (1) Automotive grade (1) (1) UNIT WEIGHT (g) 0.064 0.064 0.064 0.064 PREFERRED PACKAGE CODE TR TR3 TR TR3 BASE QUANTITY 1800 7500 1800 7500 DELIVERY MODE 7" diameter plastic tape and reel 13" diameter plastic tape and reel 7" diameter plastic tape and reel 13" diameter plastic tape and reel RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted) PR - Max. Reverse Power Dissipation (W) 7 BYS10-45 6 1000 Reverse Current (mA) 5 BYS10-35 4 3 2 1 RthJA = 100 K/W 0 0 40 80 120 160 200 RthJA = 25 K/W BYS10-25 100 10 VR = VRRM 1 0.1 0 40 80 120 160 200 Junction Temperature (°C) Junction Temperature (°C) Fig. 1 - Max. Reverse Power Dissipation vs. Junction Temperature www.vishay.com 2 Fig. 2 - Max. Reverse Current vs. Junction Temperature For technical questions within your region, please contact one of the following: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com Document Number: 86013 Revision: 19-May-10 BYS10-25 thru BYS10-45 Vishay General Semiconductor 2.0 VR = VRRM, Half Sine-Wave, RthJA = 25 K/W 100 Average Forward Current (A) 1.6 TJ = 150 °C 1.2 BYS10-25 0.8 BYS10-35 0.4 BYS10-45 0 0 40 80 120 160 200 Forward Current (A) 10 1 TJ = 25 °C 0.1 0.01 0 0.4 0.8 1.2 1.6 2.0 Ambient Temperature (°C) Forward Voltage (V) Fig. 3 - Max. Average Forward Current vs. Ambient Temperature Fig. 5 - Max. Forward Current vs. Forward Voltage 2.0 100 VR = 0 V, Half Sine-Wave 1.6 Transient Thermal Impedance (°C/W) 200 Average Forward Current (A) 10 1.2 100 K/W 0.8 125 K/W RthJA = 25 K/W 1 0.4 150 K/W 0 0 40 80 120 160 0.1 0.01 0.1 1 10 100 Ambient Temperature (°C) t - Heating Time (s) Fig. 4 - Max. Average Forward Current vs. Ambient Temperature Fig. 6 - Typical Transient Thermal Impedance PACKAGE OUTLINE DIMENSIONS in inches (millimeters) DO-214AC (SMA) Cathode Band Mounting Pad Layout 0.066 (1.68) MIN. 0.074 (1.88) MAX. 0.065 (1.65) 0.049 (1.25) 0.110 (2.79) 0.100 (2.54) 0.177 (4.50) 0.157 (3.99) 0.012 (0.305) 0.006 (0.152) 0.060 (1.52) MIN. 0.208 (5.28) REF. 0.090 (2.29) 0.078 (1.98) 0.060 (1.52) 0.030 (0.76) 0.008 (0.203) 0 (0) 0.208 (5.28) 0.194 (4.93) Document Number: 86013 Revision: 19-May-10 For technical questions within your region, please contact one of the following: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com www.vishay.com 3 Legal Disclaimer Notice Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. Document Number: 91000 Revision: 11-Mar-11 www.vishay.com 1
