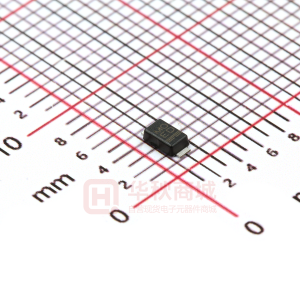

ES07B / ES07D
Vishay Semiconductors
Small Surface Mount Ultrafast Diodes
Features
For surface mounted applications Low profile package e3 Ideal for automated placement Glass passivated High temperature soldering: 260 °C/ 10 seconds at terminals • Lead (Pb)-free component • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC • • • • •
17249
Mechanical Data
Case: JEDEC DO-219AB Plastic case Polarity: Band denotes cathode end Weight: approx. 15 mg (SMF®)
Packaging codes-options: GS18 / 10 K per 13" reel (8 mm tape), 50 k/box GS08 / 3 K per 7" reel (8 mm tape), 30 k/box
Parts Table
Part ES07B ES07D Ordering code ES07B-GS18 or ES07B-GS08 ES07D-GS18 or ES07D-GS08 EB ED Marking Remarks Tape and Reel Tape and Reel
Absolute Maximum Ratings
Tamb = 25 °C, unless otherwise specified Parameter Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current Ttp = 105 °C TA = 65 °C Peak forward surge current 8.3 ms single half sine-wave TL = 25 °C
1)
Test condition
Part ES07B ES07D ES07B ES07D ES07B ES07D
Symbol VRRM VRRM VRMS VRMS VDC VDC IF(AV) IF(AV) IFSM
Value 100 200 70 140 100 200 1.2 0.5 30
Unit V V V V V V A A A
1) Mounted on epoxy glass PCB with 3 x 3 mm, Cu pads (≥ 40 µm thick)
Thermal Characteristics
Tamb = 25 °C, unless otherwise specified Parameter Thermal resistance junction to ambient Operating junction and storage temperature range 1) Mounted on epoxy glass PCB with 3 x 3 mm, Cu pads (≥ 40 µm thick) Document Number 85737 Rev. 1.7, 13-Apr-05 www.vishay.com 1 air1) Test condition Symbol RthJA TJ, TSTG Value 180 - 55 to + 150 Unit K/W °C
ES07B / ES07D
Vishay Semiconductors Electrical Characteristics
Tamb = 25 °C, unless otherwise specified Parameter Maximum instantaneous forward voltage 1.0 A3) Test condition Symbol VF IR IR trr Cj 4 Min Typ. Max 0.98 10 50 25 Unit V µA µA ns pF
Maximum DC reverse current at TA = 25°C rated DC blocking voltage TA = 100°C Reverse recovery time Typical capacitance
3)
IF = 0.5 A, IR = 1 A, Irr = 0.25 A 4 V, 1 MHz
Pulse test, 300 µs pulse with 1 % duty cycle
Typical Characteristics (Tamb = 25 °C unless otherwise specified)
10 7,00
f = 1MHz
6,00 1
IF [A]
5,00
CD [pF]
4,00 3,00 2,00 1,00
0,1
typical @ 25°C typical @ 150°C typical @ 100°C
0,01
0,001 0,00
18242
0,20
0,40
0,60 0,80 VF [V]
1,00
1,20
1,40
0,00 0,1
18244
1 VR [V]
10
100
Figure 1. Typical Forward Characteristics
Figure 3. Typ. Diode Capacitance vs. Reverse Voltage
1,4
ambient temperature tie point temperature
1000
Average Forward Current [A]
1,2 1,0
IR [µA]
100
TJ=25°C TJ=50°C TJ=75°C TJ=100°C TJ=125°C TJ=150°C TJ=0°C TJ=-50°C
10
0,8 0,6 0,4
1
0,1
0,2 0,0 0
0,01 0 20 40 60 80 100 VR [V] 120 140 160 180 200
25
18243
100 50 75 Temperature (Ambient or Tie) [°C]
125
150
18245
Figure 4. Typical Reverse Characteristics Figure 2. Forward Current Derating Curve
www.vishay.com 2
Document Number 85737 Rev. 1.7, 13-Apr-05
ES07B / ES07D
Vishay Semiconductors Package Dimensions in mm (Inches)
0.85 (0.033) 0.35 (0.014)
3.9 (0.152) 3.5 (0.137) 5
0.99 (0.039) 0.97 (0.038)
0.16 (0.006)
5
Z
Detail Z enlarged
Cathode Band Top View
1.9 (0.074) 1.7 (0.066) 0.10 max
1.2 (0.047) 0.8 (0.031)
2.9 (0.113) 2.7 (0.105) ISO Method E
Mounting Pad Layout
1.6 (0.062) 1.3 (0.051)
1.4 (0.055)
17247
Document Number 85737 Rev. 1.7, 13-Apr-05
www.vishay.com 3
ES07B / ES07D
Vishay Semiconductors Blistertape for SMF
PS
18513
www.vishay.com 4
Document Number 85737 Rev. 1.7, 13-Apr-05
