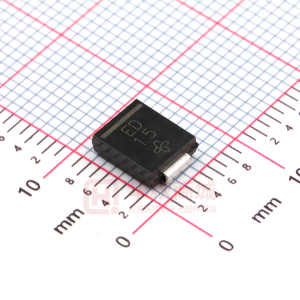

ES3D

ES3A thru ES3D Vishay General Semiconductor Surface Mount Ultrafast Plastic Rectifier FEATURES • Glass passivated chip junction • Ideal for automated placement • Ultrafast recovery times for high efficiency • Low forward voltage, low power losses • High forward surge capability • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C DO-214AB (SMC) • Solder dip 260 °C, 40 s • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC TYPICAL APPLICATIONS For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication. MECHANICAL DATA Case: DO-214AB (SMC) Epoxy meets UL 94V-0 flammability rating Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102 E3 suffix for consumer grade, meets JESD 201 class 1A whisker test, HE3 suffix for high reliability grade (AEC Q101 qualified), meets JESD 201 class 2 whisker test Polarity: Color band denotes cathode end PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM trr VF TJ max. 3.0 A 50 V to 200 V 100 A 20 ns 0.90 V 150 °C MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) PARAMETER Device marking code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL = 100 °C Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load Operating junction and storage temperature range VRRM VRMS VDC IF(AV) IFSM TJ, TSTG SYMBOL ES3A EA 50 35 50 ES3B EB 100 70 100 3.0 100 - 55 to + 150 ES3C EC 150 105 150 ES3D ED 200 140 200 V V V A A °C UNIT Document Number: 88589 Revision: 27-Aug-07 For technical questions within your region, please contact one of the following: PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com www.vishay.com 1 ES3A thru ES3D Vishay General Semiconductor ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER Maximum instantaneous forward voltage (1) Maximum DC reverse current at rated DC blocking voltage Maximum reverse recovery time Maximum reverse recovery time Maximum stored charge Typical junction capacitance IF = 0.5 A, IR = 1.0 A, Irr = 0.25 A IF = 3.0 A, VR = 30 V, dI/dt = 50 A/µs, Irr = 10 % IRM IF = 3.0 A, VR = 30 V, dI/dt = 50 A/µs, Irr = 10 % IRM 4.0 V, 1 MHz TJ = 25 °C TJ = 100 °C TJ = 25 °C TJ = 100 °C 3.0 A TA = 25 °C TA = 100 °C TEST CONDITIONS SYMBOL VF IR trr trr Qrr CJ ES3A ES3B ES3C ES3D UNIT V µA ns ns nC pF 0.90 10 500 20 30 50 15 35 45 Note: (1) Pulse test: 300 µs pulse width, 1 % duty cycle THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER Typical thermal resistance (1) SYMBOL RθJA RθJL ES3A ES3B 47 12 ES3C ES3D UNIT °C/W Note: (1) Units mounted on P.C.B. with 0.31 x 0.31" (8.0 x 8.0 mm) copper pad areas ORDERING INFORMATION (Example) PREFERRED P/N ES3D-E3/57T ES3D-E3/9AT ES3DHE3/57T (1) ES3DHE3/9AT (1) UNIT WEIGHT (g) 0.211 0.211 0.211 0.211 PREFERRED PACKAGE CODE 57T 9AT 57T 9AT BASE QUANTITY 850 3500 850 3500 DELIVERY MODE 7" diameter plastic tape and reel 13" diameter plastic tape and reel 7" diameter plastic tape and reel 13" diameter plastic tape and reel Note: (1) Automotive grade AEC Q101 qualified RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted) 3.0 150 Average Forward Rectified Current (A) Peak Forward Surge Current (A) 125 8.3 ms Single Half Sine-Wave at TL = 100 °C 2.0 100 75 1.0 Resistive or Inductive Load P.C.B. Mounted on 0.31 x 0.31" (8.0 x 8.0 mm) Copper Pad Areas 0 80 90 100 110 120 130 140 150 50 25 0 1 10 100 Lead Temperature (°C) Number of Cycles at 60 Hz Figure 1. Maximum Forward Current Derating Curve Figure 2. Maximum Non-Repetitive Peak Forward Surge Current www.vishay.com 2 For technical questions within your region, please contact one of the following: PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com Document Number: 88589 Revision: 27-Aug-07 ES3A thru ES3D Vishay General Semiconductor 100 50 TJ = 150 °C TJ = 25 °C f = 1.0 MHz Vsig = 50 mVp-p Instantaneous Forward Current (A) Junction Capacitance (pF) 40 10 TJ = 125 °C 30 1 TJ = 100 °C 20 0.1 TJ = 25 °C 10 0.01 0.1 0 0.3 0.5 0.7 0.9 1.1 1.3 0.1 1 10 100 Instantaneous Forward Voltage (V) Reverse Voltage (V) Figure 3. Typical Instantaneous Forward Characteristics Figure 5. Typical Junction Capacitance 10 000 Instantaneous Reverse Leakage Current (µA) TJ = 150 °C 1000 TJ = 125 °C TJ = 100 °C 100 10 1 TJ = 25 °C 0.1 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Figure 4. Typical Reverse Leakage Characteristics PACKAGE OUTLINE DIMENSIONS in inches (millimeters) DO-214AB (SMC) Cathode Band Mounting Pad Layout 0.185 (4.69) MAX. 0.126 (3.20) 0.114 (2.90) 0.246 (6.22) 0.220 (5.59) 0.126 (3.20) MIN. 0.280 (7.11) 0.260 (6.60) 0.012 (0.305) 0.006 (0.152) 0.103 (2.62) 0.079 (2.06) 0.060 (1.52) 0.030 (0.76) 0.008 (0.2) 0 (0) 0.320 (8.13) 0.305 (7.75) 0.060 (1.52) MIN. 0.320 REF. Document Number: 88589 Revision: 27-Aug-07 For technical questions within your region, please contact one of the following: PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com www.vishay.com 3 Legal Disclaimer Notice Vishay Disclaimer All product specifications and data are subject to change without notice. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in any other disclosure relating to any product. Vishay disclaims any and all liability arising out of the use or application of any product described herein or of any information provided herein to the maximum extent permitted by law. The product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein, which apply to these products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless otherwise expressly indicated. Customers using or selling Vishay products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Vishay for any damages arising or resulting from such use or sale. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. Product names and markings noted herein may be trademarks of their respective owners. Document Number: 91000 Revision: 18-Jul-08 www.vishay.com 1
