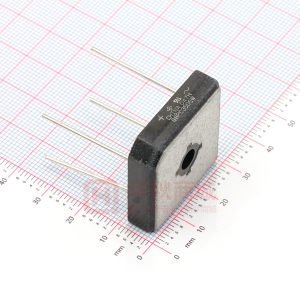

GBPC12, GBPC15, GBPC25, GBPC35 Vishay General Semiconductor Glass Passivated Single-Phase Bridge Rectifier GBPC-W GBPC FEATURES • UL recognition file number E54214 • Universal 3-way terminals: snap-on, wire wrap-around, or PCB mounting • Typical IR less than 0.3 μA • High surge current capability • Low thermal resistance • Solder dip 260 °C, 40 s • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC ~ ~ ~ ~ ~ TYPICAL APPLICATIONS ~ General purpose use in AC/DC bridge full wave rectification for power supply, home appliances, office equipment, industrial automation applications. 12 A, 15 A, 25 A, 35 A 50 V to 1000 V 200 A, 300 A, 300 A, 400 A 5 μA 1.1 V 150 °C PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM IR VF TJ max. MECHANICAL DATA Case: GBPC, GBPC-W Epoxy meets UL 94 V-0 flammability rating Terminals: Nickel plated on faston lugs or silver plated on wire leads, solderable per J-STD-002 and JESD22-B102. E4 suffix for consumer grade. Suffix letter “W” added to indicate wire leads (e.g. GBPC12005W). Polarity: As marked, positive lead by belevled corner Mounting Torque: 20 inches-lbs. max. MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) PARAMETER Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage GBPC12 Maximum average forward rectified output current (Fig. 1) GBPC15 GBPC25 GBPC35 GBPC12 Peak forward surge current single sine-wave superimposed on rated load GBPC15 GBPC25 GBPC35 GBPC12 Rating (non-repetitive, for t greater than 1 ms and less than 8.3 ms) for fusing GBPC15 GBPC25 GBPC35 RMS isolation voltage from case to leads Operating junction storage temperature range VISO TJ, TSTG I2t IFSM IF (AV) SYMBOL VRRM VRMS VDC GBPC12, 15, 25, 35 005 50 35 50 01 100 70 100 02 200 140 200 04 400 280 400 12 15 25 35 200 300 300 400 160 375 375 660 2500 - 55 to + 150 V °C A2s A A 06 600 420 600 08 800 560 800 10 1000 700 1000 UNIT V V V Document Number: 88612 Revision: 28-Mar-11 For technical questions within your region, please contact one of the following: www.vishay.com DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com 1 This document is subject to change without notice. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 GBPC12, GBPC15, GBPC25, GBPC35 Vishay General Semiconductor ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER GBPC12 Maximum instantaneous forward drop per diode GBPC15 GBPC25 GBPC35 Maximum reverse DC current at rated DC blocking voltage per diode Typical junction capacitance per diode TEST CONDITIONS IF = 6.0 A IF = 7.5 A IF = 12.5 A IF = 17.5 A TA = 25 °C TA = 125 °C 4 V, 1 MHz 5.0 IR CJ μA 500 300 pF VF 1.1 V GBPC12, 15, 25, 35 SYMBOL 005 01 02 04 06 08 10 UNIT THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) GBPC12, 15, 25, 35 PARAMETER GBPC12 to GBPC25 Typical thermal resistance GBPC35 SYMBOL 005 RJC (1) 01 02 04 1.9 °C/W 1.4 06 08 10 UNIT Notes (1) With heatsink (2) Bolt down on heatsink with silicone thermal compound between bridge and mounting surface for maximum heat transfer with #10 screw ORDERING INFORMATION (Example) PREFERRED P/N GBPC1206-E4/51 GBPC1506-E4/51 GBPC2506-E4/51 GBPC3506-E4/51 GBPC1206W-E4/51 GBPC1506W-E4/51 GBPC2506W-E4/51 GBPC3506W-E4/51 UNIT WEIGHT (g) 15.79 15.79 15.79 15.79 13.8 13.8 13.8 13.8 PREFERRED PACKAGE CODE 51 51 51 51 51 51 51 51 BASE QUANTITY 100 100 100 100 100 100 100 100 DELIVERY MODE Paper box Paper box Paper box Paper box Paper box Paper box Paper box Paper box www.vishay.com 2 For technical questions within your region, please contact one of the following: Document Number: 88612 DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com Revision: 28-Mar-11 This document is subject to change without notice. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 GBPC12, GBPC15, GBPC25, GBPC35 Vishay General Semiconductor RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted) 40 35 30 25 20 15 10 5 0 0 25 50 75 100 125 150 175 200 60 Hz Resistive or Inductive Load 6 x 2.2 x 2.2" AL, Finned Plate 1000 Peak Forward Surge Current (A) Average Forward Current (A) Bridges Mounted on 9.5 x 3.5 x 4.6" (22.9 x 8.9 x 11.7 cm) AL, Finned Plate 5 x 6 x 4.9" AL, Finned Plate 5 x 4 x 3" AL, Finned Plate TJ = TJ Max. 0.5 ms Single Sine-Wave GBPC35 100 GBPC12 GBPC15 GBPC25 1.0 Cycle 10 1 10 100 Case Temperature (°C) Number of Cycles at 60 Hz Fig. 1 - Maximum Output Rectified Current Fig. 4 - Maximum Non-Repetitive Peak Forward Surge Current Per Diode 40 35 100 Instantaneous Forward Current (A) GBPC35 RthSA = 0.5 °C/W Average Forward Current (A) 60 Hz Resistive or Inductive Load TA = 150 °C TA = 125 °C 10 30 25 20 15 10 5 0 0 GBPC25 RthSA = 0.5 °C/W GBPC15 RthSA = 1.0 °C/W TA = 100 °C TA = 25 °C 1 GBPC12 RthSA = 1.0 °C/W 10 20 30 40 50 60 70 80 90 100 0.1 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 Ambient Temperature (°C) Instantaneous Forward Voltage (V) Fig. 2 - Maximum Output Rectified Current Fig. 5 - Typical Instantaneous Forward Characteristics Per Diode Average Power Dissipation of Bridge (W) 80 70 60 50 40 30 20 10 0 0 10 20 30 40 Resistive or Inductive Load TJ = TJ Max. Capacitive Load 1000 Instantaneous Reverse Leakage Current (µA) TA = 150 °C TA = 125 °C TA = 100 °C 10 100 1 TA = 25 °C 0.1 0 10 20 30 40 50 60 70 80 90 100 Average Output Current (A) Percent of Rated Peak Reverse Voltage (%) Fig. 3 - Maximum Power Dissipation Fig. 6 - Typical Reverse Leakage Characteristics Per Diode Document Number: 88612 Revision: 28-Mar-11 For technical questions within your region, please contact one of the following: www.vishay.com DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com 3 This document is subject to change without notice. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 GBPC12, GBPC15, GBPC25, GBPC35 Vishay General Semiconductor 1000 TJ = 25 °C f = 1.0 MHz Vsig = 50 mVp-p 1000 Transient Thermal Impedance (°C/W) Junction Capacitance (pF) TJ = 25 °C f = 1.0 MHz Vsig = 50 mVp-p 100 100 10 10 1 10 100 1 0.01 0.1 1 10 100 Reverse Voltage (V) t - Heating Time (s) Fig. 7 - Typical Junction Capacitance Per Diode Fig. 8 - Typical Transient Thermal Impedance Per Diode PACKAGE OUTLINE DIMENSIONS in inches (millimeters) GBPC-W Hole for #10 Screw 0.220 (5.59) DIA. 0.200 (5.08) 1.135 (28.8) 1.115 (28.3) 0.732 (18.6) 0.692 (17.6) 0.24 (6.0) 0.18 (4.6) Hole for #10 Screw 0.220 (5.59) DIA. 0.200 (5.08) GBPC 1.135 (28.8) 1.115 (28.3) 0.672 (17.1) 0.632 (16.1) AC 1.135 (28.8) 1.115 (28.3) 0.732 (18.6) 0.692 (17.6) 0.672 (17.1) 0.632 (16.1) 1.135 (28.8) 1.115 (28.3) 0.034 (0.86) 0.030 (0.76) 0.732 (18.6) 0.692 (17.6) 0.094 (2.4) DIA. 0.25 (6.35) 0.582 (14.8) 0.542 (13.8) 0.24 (6.0) 0.18 (4.6) 0.042 (1.07) 0.038 (0.97) DIA. 0.470 (11.9) 0.430 (10.9) 0.50 (12.7) 0.44 (11.7) 1.25 (31.8) MIN. 0.034 (0.86) 0.030 (0.76) 0.310 (7.87) 0.290 (7.36) 0.310 (7.62) 0.290 (7.36) 0.840 (21.3) 0.740 (18.8) www.vishay.com 4 For technical questions within your region, please contact one of the following: Document Number: 88612 DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com Revision: 28-Mar-11 This document is subject to change without notice. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. Document Number: 91000 Revision: 11-Mar-11 www.vishay.com 1
