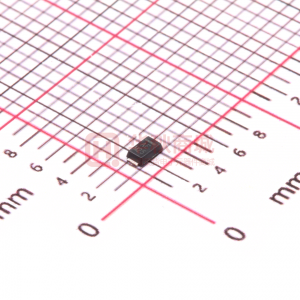

MSP5.0A

New Product MSP5.0A Vishay General Semiconductor Surface Mount TRANSZORB® Transient Voltage Suppressors FEATURES eSMP ® Series Very low profile - typical height of 0.65 mm Ideal for automated placement Oxide planar chip junction Uni-directional polarity only Peak pulse power: 100 W (10/1000 μs) ESD capability: 15 kV (air), 8 kV (contact) Meets MSL level 1, per J-STD-020C, LF maximum peak of 260 °C • AEC-Q101 qualified • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC • Halogen-free according to IEC 61249-2-21 definition • • • • • • • Top View Bottom View MicroSMP PRIMARY CHARACTERISTICS VWM PPPM IFSM TJ max. 5.0 V 100 W 25 A 150 °C MECHANICAL DATA Case: MicroSMP Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS compliant, and commercial grade Base P/NHM3 - halogen-free, RoHS compliant, and automotive grade Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 M3 suffix meets JESD 201 class 1A whisker test, HM3 suffix meets JESD 201 class 2 whisker test Polarity: Color band denotes the cathode end TYPICAL APPLICATIONS Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units specifically for protecting 5.0 V supplied sensitive equipment against transient overvoltages. MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) PARAMETER Peak pulse power dissipation Peak pulse current with a 10/1000 μs waveform (fig. 1) Non repetitive peak forward surge current 10 ms single half sine-wave Power dissipation TL = 120 °C Operating junction and storage temperature range Notes (1) Non-repetitive current pulse, per fig. 1 (2) Mounted on 6.0 mm x 6.0 mm copper pads to each terminal SYMBOL PPPM (1)(2) VALUE 100 10.9 25 1.0 - 55 to + 150 UNIT W A A W °C IPPM IFSM (2) PD (2) TJ, TSTG ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) DEVICE TYPE MSP5.0A (1) DEVICE MARKING CODE AE BREAKDOWN VOLTAGE VBR AT IT (V) (1) MIN. 6.40 MAX. 7.07 TEST CURRENT IT (mA) 10 STAND-OFF MAX. REVERSE VOLTAGE LEAKAGE VWM AT VWM (V) ID ( A) 5.0 100 MAX. CLAMPING VOLTAGE (2) VC (V) AT IPPM (A) 10/1000 s 9.2 10.9 MAX. CLAMPING VOLTAGE (2) VC (V) AT IPPM (A) 8/20 s 14.5 57 Notes Pulse test: tp  50 ms (2) Surge current waveform per fig. 1 and derate per fig. 2 Document Number: 88487 Revision: 19-Apr-11 For technical questions within your region, please contact one of the following: www.vishay.com DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com 23 This document is subject to change without notice. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 New Product MSP5.0A Vishay General Semiconductor THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER Typical thermal resistance SYMBOL RJA (1) RJL (1) VALUE 125 UNIT °C/W 30 Note (1) Thermal resistance from junction to ambient and junction to lead mounted on PCB with 6.0 mm x 6.0 mm copper pad areas. R JL is measured at the terminal of cathode band. IMMUNITY TO STATIC ELECTRICAL DISCHARGE TO THE FOLLOWING STANDARDS (TA = 25 °C unless otherwise noted) STANDARD AEC-Q101-001 IEC-61000-4-2 (2) TEST TYPE Human body model (contact mode) Human body model (air discharge mode) (1) TEST CONDITIONS C = 100 pF, R = 1.5 kW C = 150 pF, R = 150 W SYMBOL VC CLASS H3B 4 VALUE > 8 kV > 15 kV Notes (1) Immunity to IEC 61000-4-2 air discharge mode has a typical performance > 30 kV (2) System ESD standard ORDERING INFORMATION (Example) PREFERRED P/N MSP5.0A-M3/89A MSP5.0AHM3/89A Note (1) Automotive grade (1) UNIT WEIGHT (G) 0.006 0.006 PREFERRED PACKAGE CODE 89A 89A BASE QUANTITY 4500 4500 DELIVERY MODE 7" diameter plastic tape and reel 7" diameter plastic tape and reel RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted) 150 IPPM - Peak Pulse Current (% IRSM) Peak Value IPPM 100 Half Value - IPP IPPM 2 50 PPPM - Peak Pulse Power (kW) 4.0 tr = 10 μs tr = 8 μs TJ = 25 °C Pulse Width (td) is Defined as the Point Where the Peak Current Decays to 50 % of IPPM 100 10 1 td = 1000 μs td = 20 μs td 0 0 1.0 2.0 3.0 0.1 0.01 0.1 1 10 100 1000 10 000 t - Time (ms) td - Pulse Width (μs) Fig. 1 - Pulse Waveform Fig. 2 - Peak Pulse Power Rating Curve www.vishay.com 24 For technical questions within your region, please contact one of the following: Document Number: 88487 DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com Revision: 19-Apr-11 This document is subject to change without notice. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 New Product MSP5.0A Vishay General Semiconductor 40 800 CJ - Junction Capacitance (pF) 25 50 75 100 125 150 Reverse Leakage Current (μA) 700 600 30 20 500 400 300 200 0 1 2 3 4 10 0 TJ - Junction Temperature (°C) Reverse Voltage (V) Fig. 3 - Relative Variation of Leakage Current vs. Junction Temperature Fig. 5 - Typical Junction Capacitance 100 1000 10 Transient Thermal Impedance (°C/W) 1.4 1.6 Peak Forward Current (A) TJ = 150 °C TJ = 25 °C 100 1 10 0.1 0.4 0.6 0.8 1.0 1.2 1 0.01 0.1 1 10 100 1000 VF - Forward Voltage Drop (V) t - Pulse Duration (s) Fig. 4 - Typical Peak Forward Voltage Drop vs. Peak Forward Current Fig. 6 - Typical Transient Thermal Impedance PACKAGE OUTLINE DIMENSIONS in inches (millimeters) MicroSMP Cathode Band 0.059 (1.50) 0.043 (1.10) 0.030 (0.75) 0.022 (0.55) 0.055 (1.40) 0.047 (1.20) 0.039 (0.98) 0.031 (0.78) 0.030 (0.75) 0.022 (0.55) 0.091 (2.30) 0.083 (2.10) 0.106 (2.70) 0.091 (2.30) Mounting Pad Layout 0.079 (2.00) 0.032 (0.80) 0.029 (0.73) 0.025 (0.63) 0.011 (0.27) 0.005 (0.12) 0.043 (1.10) 0.032 (0.80) 0.020 (0.50) Document Number: 88487 Revision: 19-Apr-11 For technical questions within your region, please contact one of the following: www.vishay.com DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com 25 This document is subject to change without notice. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. Document Number: 91000 Revision: 11-Mar-11 www.vishay.com 1
