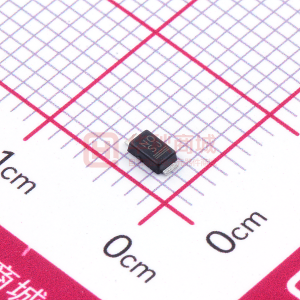

S07B-M, S07D-M, S07G-M, S07J-M, S07M-M
Vishay Semiconductors
Small Signal Switching Diode, High Voltage
Features
• • • • • • • • • For surface mounted applications Low profile package Ideal for automated placement Glass passivated High temperature soldering: 260 °C/10 s at terminals Wave and reflow solderable AEC-Q101 qualified Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC Halogen-free according to IEC 61249-2-21 definition
17249
Mechanical Data
Case: DO-219AB (SMF) Polarity: band denotes cathode end Weight: approx. 15 mg Packaging codes/options: 18/10K per 13" reel (8 mm tape) 08/3K per 7" reel (8 mm tape)
Parts Table
Part S07B-M S07D-M S07G-M S07J-M S07M-M Ordering code S07B-M-18 or S07B-M-08 S07D-M-18 or S07D-M-08 S07G-M-18 or S07G-M-08 S07J-M-18 or S07J-M-08 S07M-M-18 or S07M-M-08 Marking UB UD UG UJ UM Remarks Tape and reel Tape and reel Tape and reel Tape and reel Tape and reel
Document Number 85191 Rev. 1.1, 20-Aug-10
For technical questions within your region, please contact one of the following: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
www.vishay.com 1
S07B-M, S07D-M, S07G-M, S07J-M, S07M-M
Vishay Semiconductors Absolute Maximum Ratings
Tamb = 25 °C, unless otherwise specified
Parameter Test condition Part S07B-M S07D-M Maximum repetitive peak reverse voltage S07G-M S07J-M S07M-M S07B-M S07D-M Maximum RMS voltage S07G-M S07J-M S07M-M S07B-M S07D-M Maximum DC blocking voltage S07G-M S07J-M S07M-M Maximum average forward rectified current Peak forward surge current 8.3 ms single half sine-wave Note: 1) Averaged over any 20 ms period Ttp = 75 °C
1)
Symbol VRRM VRRM VRRM VRRM VRRM VRMS VRMS VRMS VRMS VRMS VDC VDC VDC VDC VDC IF(AV) IF(AV) IFSM
Value 100 200 400 600 1000 70 140 280 420 700 100 200 400 600 1000 1.5 0.7 25
Unit V V V V V V V V V V V V V V V A A A
TA = 65 °C 1) TL = 25 °C
Thermal Characteristics
Tamb = 25 °C, unless otherwise specified
Parameter Thermal resistance junction to ambient air 1) Operating junction and storage temperature range Test condition Symbol RthJA TJ, TSTG Value 180 - 55 to + 150 Unit K/W °C
Note: 1) Mounted on epoxy substrate with 3 mm x 3 mm CU pads (≥ 40 mm thick)
Electrical Characteristics
Tamb = 25 °C, unless otherwise specified
Parameter Maximum instantaneous forward voltage Maximum DC reverse current at rated DC blocking voltage Reverse recovery time Typical capacitance at 4 V, MHz Note: 1) Pulse test: 300 µ pulse width, 1 % duty cycle Test condition 1 A 1) TA = 25 °C TA = 125 °C IF = 0.5 A, IR = 1 A, Irr = 0.25 A Symbol VF IR IR trr Cj 4 Min. Typ. Max. 1.1 10 50 1.8 Unit V μA μA μs pF
www.vishay.com 2
For technical questions within your region, please contact one of the following: Document Number 85191 Rev. 1.1, 20-Aug-10 DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
S07B-M, S07D-M, S07G-M, S07J-M, S07M-M
Vishay Semiconductors Typical Characteristics
Tamb = 25 °C, unless otherwise specified
1.2 Resistive or inductive load 100
Instantaneous Reverse Current (µA)
Average Forward Current (A)
1.0
TJ = 150 °C 10 TJ = 125 °C TJ = 100 °C 1 TJ = 75 °C TJ = 50 °C
0.8
0.6 0.4
0.1
0.2 0
3.0 mm x 3.0 mm 40 µm thick copper pad areas 0 20 40 60 80 100 120 140 160
TJ = 25 °C 0.01 0 100 200 300 400 500 600 700 800 900
17375
Ambient Temperature (°C)
17377
Instantaneous Reverse Voltage (V)
Figure 1. Forward Current Derating Curve
Figure 3. Typical Instantaneous Reverse Characteristics
1000
10 9 8 TJ = 150 °C TJ = 25 °C 7
Instantaneous Forward Current (mA)
C (pF)
TJ = 100 °C 100 600
6 5 4 3 2 1
700
800
900
1000
1100
17378
0
0
5
10
15
20
25
30
35
40
17376
Instantaneous Forward Voltage (mV)
V R (V)
Figure 2. Typical Instantaneous Forward Characteristics
Figure 4. Capacitance vs. Reverse Voltage
Document Number 85191 Rev. 1.1, 20-Aug-10
For technical questions within your region, please contact one of the following: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
www.vishay.com 3
S07B-M, S07D-M, S07G-M, S07J-M, S07M-M
Vishay Semiconductors Package Dimensions in millimeters (inches): DO-219AB (SMF)
0.85 (0.033) 0.35 (0.014)
0.25 (0.010)
0.05 (0.002)
0.1 (0.004)
5
1.9 (0.075)
1.7 (0.067)
1.2 (0.047) 0.8 (0.031)
0 (0.000)
Detail Z enlarged
1.08 (0.043) 2.9 (0.114) 2.7 (0.106) 3.9 (0.154) 3.5 (0.138) 0.88 (0.035)
Foot print recommendation:
1.3 (0.051)
1.3 (0.051)
Created - Date: 15. February 2005 Rev. 3 - Date: 13. March 2007 Document no.:S8-V-3915.01-001 (4)
17247
1.4 (0.055)
2.9 (0.114)
www.vishay.com 4
For technical questions within your region, please contact one of the following: Document Number 85191 Rev. 1.1, 20-Aug-10 DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
5
S07B-M, S07D-M, S07G-M, S07J-M, S07M-M
Vishay Semiconductors Blistertape Dimensions for SMF in millimeters
PS
Document-No.: S8-V-3717.02-001 (3)
18513
Document Number 85191 Rev. 1.1, 20-Aug-10
For technical questions within your region, please contact one of the following: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
www.vishay.com 5
