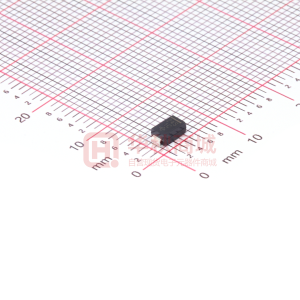

SS24S-M3-5AT

New Product SS22S, SS23S, SS24S Vishay General Semiconductor Surface Mount Schottky Barrier Rectifier FEATURES • Low profile package • Ideal for automated placement • Low forward voltage drop, low power losses • High efficiency • High surge capability • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC • Halogen-free according to IEC 61249-2-21 definition DO-214AC (SMA) TYPICAL APPLICATIONS PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 2.0 A TJ max. 2.0 A 20 V, 30 V, 40 V 40 A 0.517 V 150 °C For use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. MECHANICAL DATA Case: DO-214AC (SMA) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS compliant, and commercial grade Terminals: Matte tin plated leads, solderable J-STD-002 and JESD 22-B102 M3 suffix meets JESD 201 class 1A whisker test Polarity: Color band denotes the cathode end per MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) PARAMETER Device marking code Maximum repetitive peak reverse voltage Maximum average forward rectified current (fig. 1) Peak forward surge current 10 ms single half sine-wave superimposed on rated load Voltage rate of change (rated VR) Operating junction and storage temperature range VRRM IF(AV) IFSM dV/dt TJ, TSTG SYMBOL SS22S 22S 20 SS23S 23S 30 2.0 40 10 000 - 55 to + 150 SS24S 24S 40 V A A V/μs °C UNIT Document Number: 89407 Revision: 19-Apr-11 For technical questions within your region, please contact one of the following: www.vishay.com DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com 1 This document is subject to change without notice. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 New Product SS22S, SS23S, SS24S Vishay General Semiconductor ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER Instantaneous forward voltage TEST CONDITIONS IF = 1 A IF = 2 A Reverse current Typical junction capacitance Rated VR 4.0 V, 1 MHz TJ = 25 °C TJ = 25 °C TJ = 100 °C SYMBOL VF (1) TYP. 0.436 0.517 13 1.65 130 MAX. V 0.55 200 8 μA mA pF UNIT IR (2) CJ Notes (1) Pulse test: 300 μs pulse width, 1 % duty cycle (2) Pulse test: Pulse width  40 ms THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER Typical thermal resistance Note (1) PCB mounted with 0.4" x 0.4" (10 mm x 10 mm) copper pad areas SYMBOL RJA RJL (1) (1) SS22S SS23S 75 SS24S UNIT °C/W 25 ORDERING INFORMATION (Example) PREFERRED P/N SS24S-M3/61T SS24S-M3/5AT UNIT WEIGHT (g) 0.064 0.064 PREFERRED PACKAGE CODE 61T 5AT BASE QUANTITY 1800 7500 DELIVERY MODE 7" diameter plastic tape and reel 13" diameter plastic tape and reel RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted) 2.4 1.2 Resistive or Inductive Load D = 0.8 D = 0.3 D = 0.5 1.0 Average Forward Rectified Current (A) 2.0 Average Power Loss (W) D = 0.2 D = 0.1 D = 1.0 1.6 0.8 1.2 0.6 T 0.4 0.8 P.C.B. Mounted on 0.4" x 0.4" (10 mm x 10 mm) Copper Pad Areas 0 25 50 75 100 125 150 175 0.4 0.2 D = tp/T tp 0 0 0 0.5 1.0 1.5 2.0 2.5 Lead Temperature (°C) Average Forward Current (A) Fig. 1 - Forward Current Derating Curve Fig. 2 - Forward Power Loss Characteristics www.vishay.com 2 For technical questions within your region, please contact one of the following: Document Number: 89407 DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com Revision: 19-Apr-11 This document is subject to change without notice. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 New Product SS22S, SS23S, SS24S Vishay General Semiconductor 50 100 000 Instantaneous Reverse Current (μA) Peak Forward Surge Current (A) 8.3 ms Single Half Sine-Wave at Rated TL 40 TJ = 150 °C 10 000 TJ = 125 °C 1000 30 20 100 10 10 TJ = 25 °C 0 0 10 100 1 10 20 30 40 50 60 70 80 90 100 Number of Cycles at 60 Hz Percent of Rated Peak Reverse Voltage (%) Fig. 3 - Maximum Non-Repetitive Peak Forward Surge Current Fig. 5 - Typical Reverse Leakage Characteristics 100 1000 TJ = 25 °C f = 1.0 MHz Vsig = 50 mVp-p Instantaneous Forward Current (A) 10 TJ = 125 °C Junction Capacitance (pF) 0.9 1.1 1.3 TJ = 150 °C 100 1 TJ = 25 °C 0.1 0.1 10 0.3 0.5 0.7 0.1 1 10 100 Instantaneous Forward Voltage (V) Reverse Voltage (V) Fig. 4 - Typical Instantaneous Forward Characteristics Fig. 6 - Typical Junction Capacitance PACKAGE OUTLINE DIMENSIONS in inches (millimeters) DO-214AC (SMA) Cathode Band Mounting Pad Layout 0.066 (1.68) MIN. 0.074 (1.88) MAX. 0.065 (1.65) 0.049 (1.25) 0.110 (2.79) 0.100 (2.54) 0.177 (4.50) 0.157 (3.99) 0.012 (0.305) 0.006 (0.152) 0.060 (1.52) MIN. 0.208 (5.28) REF. 0.090 (2.29) 0.078 (1.98) 0.060 (1.52) 0.030 (0.76) 0.008 (0.203) 0 (0) 0.208 (5.28) 0.194 (4.93) Document Number: 89407 Revision: 19-Apr-11 For technical questions within your region, please contact one of the following: www.vishay.com DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com 3 This document is subject to change without notice. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. Document Number: 91000 Revision: 11-Mar-11 www.vishay.com 1
