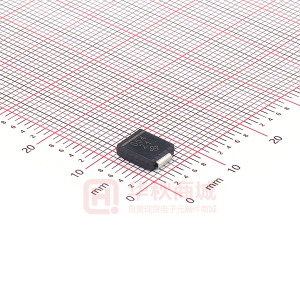

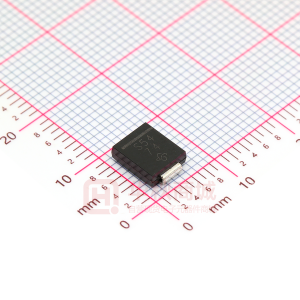

SSC54

New Product SSC53L & SSC54 Vishay General Semiconductor High-Current Density Surface Mount Schottky Rectifier FEATURES • Low profile package • Ideal for automated placement • Guardring for overvoltage protection • Low power losses, high efficiency • Very low forward voltage drop • High surge capability DO-214AB (SMC) • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C • Solder dip 260 °C, 40 s • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC TYPICAL APPLICATIONS For use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications. MECHANICAL DATA Case: DO-214AB (SMC) Epoxy meets UL 94V-0 flammability rating Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102 E3 suffix for consumer grade, meets JESD 201 class 1A whisker test, HE3 suffix for high reliability grade (AEC Q101 qualified), meets Polarity: Color band denotes the cathode end PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. 5.0 A 30 V, 40 V 175 A 0.38 V, 0.42 V 150 °C MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) PARAMETER Device marking code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL (Fig. 1) Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load Voltage rate of change (rated VR) Operating junction temperature range Storage temperature range VRRM VRMS VDC IF(AV) IFSM dV/dt TJ TSTG SYMBOL SSC53L 53L 30 21 30 5.0 175 10 000 - 65 to + 150 - 65 to + 150 SSC54 S54 40 28 40 V V V A A V/µs °C °C UNIT Document Number: 88885 Revision: 19-May-08 For technical questions within your region, please contact one of the following: PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com www.vishay.com 1 New Product SSC53L & SSC54 Vishay General Semiconductor ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER Maximum instantaneous forward voltage (1) Maximum reverse current at rated VR (2) Notes: (1) Pulse test: 300 µs pulse width, 1 % duty cycle (2) Pulse test: Pulse width ≤ 40 ms TEST CONDITIONS 5.0 A TJ = 25 °C TJ = 125 °C TJ = 25 °C TJ = 125 °C SYMBOL VF IR SSC53L TYP. 0.42 0.33 45 MAX. 0.45 0.38 0.7 65 TYP. 0.45 0.36 40 SSC54 MAX. 0.49 0.42 0.5 60 UNIT V mA THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER Typical thermal resistance (1) Note: (1) Aluminum substrate mounted SYMBOL RθJA RθJL SSC53L 60 20 SSC54 UNIT °C/W ORDERING INFORMATION (Example) PREFERRED P/N SSC53L-E3/57T SSC53L-E3/9AT SSC53LHE3/57T (1) SSC53LHE3/9AT (1) UNIT WEIGHT (g) 0.235 0.235 0.235 0.235 PREFERRED PACKAGE CODE 57T 9AT 57T 9AT BASE QUANTITY 850 3500 850 3500 DELIVERY MODE 7" diameter plastic tape and reel 13" diameter plastic tape and reel 7" diameter plastic tape and reel 13" diameter plastic tape and reel Note: (1) Automotive grade AEC Q101 qualified RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted) 6 200 5 Peak Forward Surge Current (A) 75 100 125 150 Average Forward Current (A) 150 4 3 100 2 50 1 SSC53L SSC54 0 0 25 50 0 1 10 100 Lead Temperature (°C) Number of Cycles at 60 Hz Figure 1. Forward Current Derating Curve Figure 2. Maximum Non-Repetitive Peak Forward Surge Current www.vishay.com 2 For technical questions within your region, please contact one of the following: PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com Document Number: 88885 Revision: 19-May-08 New Product SSC53L & SSC54 Vishay General Semiconductor 100 10 000 TJ = 25 °C f = 1.0 MHz Vsig = 50 mVp-p Instantaneous Forward Current (A) 10 TJ = 150 °C 1 TJ = 25 °C Junction Capacitance (pF) 1000 0.1 TJ = 125 °C 0.01 0 0.2 0.4 0.6 0.8 SSC53L SSC54 SSC53L SSC54 100 1 10 100 Instantaneous Forward Voltage (V) Reverse Voltage (V) Figure 3. Typical Instantaneous Forward Characteristics Figure 5. Typical Junction Capacitance 1000 Instantaneous Reverse Current (mA) 100 TJ = 150 °C 10 TJ = 125 °C 1 0.1 SSC53L SSC54 0.01 TJ = 25 °C 0.001 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Figure 4. Typical Reverse Characteristics PACKAGE OUTLINE DIMENSIONS in inches (millimeters) DO-214AB (SMC) Cathode Band 0.185 (4.69) MAX. Mounting Pad Layout 0.126 (3.20) 0.114 (2.90) 0.246 (6.22) 0.220 (5.59) 0.126 (3.20) MIN. 0.280 (7.11) 0.260 (6.60) 0.012 (0.305) 0.006 (0.152) 0.103 (2.62) 0.079 (2.06) 0.060 (1.52) MIN. 0.320 REF. 0.060 (1.52) 0.030 (0.76) 0.008 (0.2) 0 (0) 0.320 (8.13) 0.305 (7.75) Document Number: 88885 Revision: 19-May-08 For technical questions within your region, please contact one of the following: PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com www.vishay.com 3 Legal Disclaimer Notice Vishay Disclaimer All product specifications and data are subject to change without notice. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in any other disclosure relating to any product. Vishay disclaims any and all liability arising out of the use or application of any product described herein or of any information provided herein to the maximum extent permitted by law. The product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein, which apply to these products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless otherwise expressly indicated. Customers using or selling Vishay products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Vishay for any damages arising or resulting from such use or sale. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. Product names and markings noted herein may be trademarks of their respective owners. Document Number: 91000 Revision: 18-Jul-08 www.vishay.com 1
