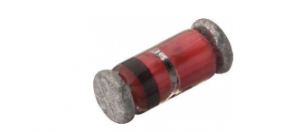

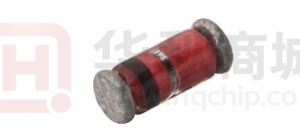

TZM5232B

TZM5221B to TZM5267B Vishay Semiconductors Small Signal Zener Diodes Features • Very sharp reverse characteristic • Very high stability e2 • Electrical data identical with the devices 1N5221B...1N5267B • Low reverse current level • VZ - tolerance ± 5 % • Lead (Pb)-free component • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC 17205 Applications • Voltage stabilization Mechanical Data Case: MiniMELF Glass case SOD80 Weight: approx. 31 mg Packaging codes/ options: GS18 / 10 k per 13" reel (8 mm tape), 10 k/box GS08 / 2.5 k per 7" reel (8 mm tape), 12.5 k/box Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified Parameter Power dissipation Z-current Junction temperature Storage temperature range Test condition RthJA < 300 K/W Symbol Ptot IZ Tj Tstg Value 500 Ptot/VZ 175 - 65 to + 175 Unit mW mA °C °C Thermal Characteristics Tamb = 25 °C, unless otherwise specified Parameter Test condition Symbol RthJA Value 500 Unit K/W Junction to ambient air on PC board 50 mm x 50 mm x 1.6 mm Electrical Characteristics Tamb = 25 °C, unless otherwise specified Parameter Forward voltage Test condition IF = 200 mA Symbol VF Min Typ. Max 1.1 Unit V Document Number 85609 Rev. 1.5, 21-Mar-06 www.vishay.com 1 TZM5221B to TZM5267B Vishay Semiconductors Electrical Characteristics Partnumber Zener Voltage Range1) VZ V typ TZM5221B TZM5222B TZM5223B TZM5224B TZM5225B TZM5226B TZM5227B TZM5228B TZM5229B TZM5230B TZM5231B TZM5232B TZM5233B TZM5234B TZM5235B TZM5236B TZM5237B TZM5238B TZM5239B TZM5240B TZM5241B TZM5242B TZM5243B TZM5244B TZM5245B TZM5246B TZM5247B TZM5248B TZM5249B TZM5250B TZM5251B TZM5252B TZM5253B TZM5254B TZM5255B TZM5256B TZM5257B TZM5258B TZM5259B TZM5260B TZM5261B TZM5262B TZM5263B TZM5264B 2.4 2.5 2.7 2.8 3 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6 6.2 6.8 7.5 8.2 8.7 9.1 10 11 12 13 14 15 16 17 18 19 20 22 24 25 27 28 30 33 36 39 43 47 51 56 60 rzjT at IZT Ω typ < 30 < 30 < 30 < 30 < 29 < 28 < 24 < 23 < 22 < 19 < 17 < 11
