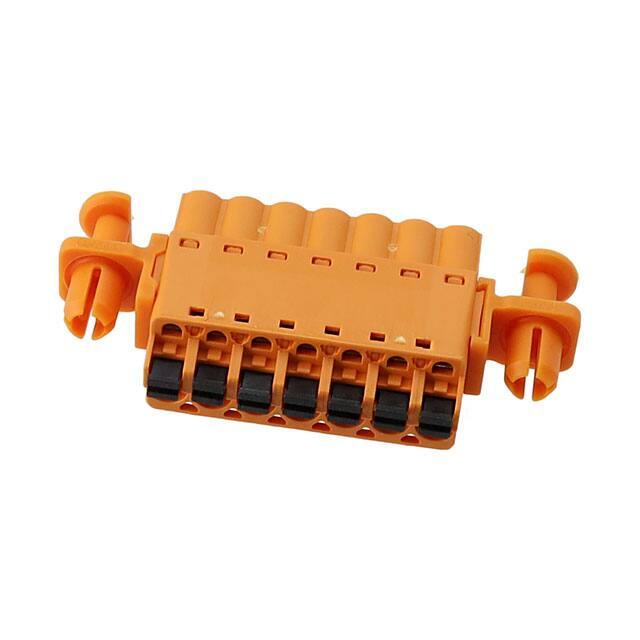

    Data sheet OMNIMATE Signal - series BL/SL 5.08 BLF 5.08HC/07/180DF SN OR BX Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com     Product image Similar to illustration Just as reliable as the millionfold proven original and featuring innovative details: The BLF 5.08HC PUSH IN version of the BLZP 5.08HC female connector is not only different in terms of connection system; it also has a more compact design. Weidmüller's innovative PUSH IN spring connection system stands for the future of easy and tool-free wire connection. HC = High Current. In terms of versatility, the BLF 5.08HC offers just as much as the version which served as a model: • 3 tested-and-proven wire outlet directions provide the usual flexibility for application-specific design • 4 flange variations and the patented release latch allow the locking concept to be based on the requirements of the user • Use the BLF 5.08HC and SL 5.08HC plug combination to reach the max. rated specifications General ordering data   Type Order No. Version GTIN (EAN) Qty. Product data Packaging   BLF 5.08HC/07/180DF SN OR BX 1353290000 PCB plug-in connector, female plug, 5.08 mm, No. of poles: 7, 180°, PUSH IN, Tension-clamp connection, Clamping range, max. : 3.31 mm², Box 4050118155839 30 pc(s). IEC: 400 V / 24 A / 0.2 - 2.5 mm² UL: 300 V / 18.5 A / AWG 26 - AWG 12 Box Creation date June 12, 2019 9:01:07 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 1     Data sheet OMNIMATE Signal - series BL/SL 5.08 BLF 5.08HC/07/180DF SN OR BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Dimensions and weights   Width Height Depth Net weight   59.76 mm 14.2 mm 27.7 mm 15.118 g         Width (inches) Height (inches) Depth (inches)   OMNIMATE Signal - series BL/SL 5.08 PUSH IN, Tension-clamp connection 0.2 inch 7 1.2 inch 1   Type of connection   Pitch in mm (P)                   Conductor outlet direction L1 in mm Number of rows Rated cross-section Touch-safe protection acc. to DIN VDE 0470 Can be coded Screwdriver blade Plugging cycles Pulling force/pole, max.       Colour Insulating material group Insulation strength 2.353 inch 0.559 inch 1.091 inch system parameters   Product family Wire connection method Pitch in inches (P) No. of poles L1 in inches Pin series quantity Touch-safe protection acc. to DIN VDE 57 106 Volume resistance Stripping length Screwdriver blade standard Plugging force/pole, max.   Safe from finger touch ≤ 2mΩ 10 mm DIN 5264 7N Field connection 5.08 mm 180° 30.48 mm 1 2.5 mm² IP 20 Yes 0.6 x 3.5 25 5.5 N Material data   Insulating material Colour chart (similar) CTI UL 94 flammability rating Contact material Layer structure of plug contact Storage temperature, max. Operating temperature, min. Temperature range, installation, min.   PBT RAL 2000 ≥ 200 V-0 CuSn 4-8 µm Sn hot-dip tinned 55 °C -50 °C -30 °C             GWFI Contact surface Storage temperature, min. Max. relative humidity during storage Operating temperature, max. Temperature range, installation, max. orange IIIa ≥ 108 Ω 960 °C tinned -25 °C 80 % 100 °C 100 °C Conductors suitable for connection   Clamping range, min. 0.13 mm² Clamping range, max. 3.31 mm² Wire connection cross section AWG, AWG 26 min. Wire connection cross section AWG, AWG 12 max. Solid, min. H05(07) V-U 0.2 mm² Solid, max. H05(07) V-U 2.5 mm² Flexible, min. H05(07) V-K 0.2 mm² Flexible, max. H05(07) V-K 2.5 mm² w. plastic collar ferrule, DIN 46228 pt 4, 0.25 mm² min. w. plastic collar ferrule, DIN 46228 pt 4, 2.5 mm² max. w. wire end ferrule, DIN 46228 pt 1, min0.25 mm² w. wire end ferrule, DIN 46228 pt 1, 2.5 mm² max. Plug gauge in accordance with EN 2.8 mm x 2.0 mm 60999 a x b; ø Creation date June 12, 2019 9:01:07 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 2     Data sheet OMNIMATE Signal - series BL/SL 5.08 BLF 5.08HC/07/180DF SN OR BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Clampable conductor Reference text Max. clamping range   fine-wired Type 0.5 mm² nominal Stripping length nominal AEH nominal Stripping length fine-wired Type Cross-section for conductor connection 0.75 mm² nominal Stripping length nominal AEH nominal Stripping length fine-wired Type Cross-section for conductor connection 1 mm² nominal Stripping length nominal AEH nominal Stripping length fine-wired Type Cross-section for conductor connection 1.5 mm² nominal Stripping length nominal AEH nominal Stripping length fine-wired Type Cross-section for conductor connection 2.5 mm² nominal Stripping length nominal AEH The outside diameter of the plastic collar should not be larger than the pitch (P). 3.31 mm² Cross-section for conductor connection 12 mm 10 mm 12 mm 10 mm 12 mm 10 mm 10 mm 12 mm 10 mm Rated data acc. to IEC   tested acc. to standard Rated current, max. no. of poles (Tu=20°C) Rated current, max. no. of poles (Tu=40°C) Rated voltage for surge voltage class / pollution degree III/2 Rated impulse voltage for surge voltage class/ pollution degree II/2 Rated impulse voltage for surge voltage class/ contamination degree III/3   IEC 60664-1, IEC 61984 19 A 16.5 A 320 V 4 kV 4 kV     Rated current, min. no. of poles (Tu=20°C) Rated current, min. no. of poles (Tu=40°C) Rated voltage for surge voltage class / pollution degree II/2 Rated voltage for surge voltage class / pollution degree III/3 Rated impulse voltage for surge voltage class/ pollution degree III/2 Short-time withstand current resistance   Certificate No. (CSA)       Rated voltage (Use group D / CSA) Wire cross-section, AWG, min. Reference to approval values         24 A 21 A 400 V 250 V 4 kV 3 x 1s with 120 A Rated data acc. to CSA   Institute (CSA) Rated voltage (Use group B / CSA) Rated current (Use group D / CSA) Wire cross-section, AWG, max.   300 V 10 A AWG 12 200039-1121690 300 V AWG 26 Specifications are maximum values, details see approval certificate. Creation date June 12, 2019 9:01:07 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 3     Data sheet OMNIMATE Signal - series BL/SL 5.08 BLF 5.08HC/07/180DF SN OR BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Rated data acc. to UL 1059   Institute (cURus) Rated voltage (Use group B / UL 1059) Rated current (Use group B / UL 1059) Wire cross-section, AWG, min. Reference to approval values     Certificate No. (cURus) 300 V 18.5 A AWG 26 Specifications are maximum values, details see approval certificate.         E60693 Rated voltage (Use group D / UL 1059) 300 V Rated current (Use group D / UL 1059) 10 A Wire cross-section, AWG, max. AWG 12   Box 0     VPE length VPE height 0 0 EC002637 EC002638 27-44-04-02 27-44-03-09         ETIM 5.0 eClass 6.2 eClass 8.1 eClass 9.1 EC002637 27-26-07-04 27-44-04-02 27-44-03-09 Packing   Packaging VPE width   Classifications   ETIM 4.0 ETIM 6.0 eClass 7.1 eClass 9.0   Notes   Notes • Additional colours on request • Gold-plated contact surfaces on request • Rated current related to rated cross-section & min. No. of poles. • Wire end ferrule without plastic collar to DIN 46228/1 • Wire end ferrule with plastic collar to DIN 46228/4 IPC conformity   • P on drawing = pitch Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. Approvals   Approvals ROHS   Conform Creation date June 12, 2019 9:01:07 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 4     Data sheet OMNIMATE Signal - series BL/SL 5.08 BLF 5.08HC/07/180DF SN OR BX   Technical data Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Downloads   Approval/Certificate/Document of Conformity Brochure/Catalogue Engineering Data White Paper wire connection   Declaration of the Manufacturer FL DRIVES EN MB DEVICE MANUF. EN FL DRIVES DE CAT 2 PORTFOLIOGUIDE EN FL BUILDING SAFETY EN FL APPL LED LIGHTING EN FL INDUSTR.CONTROLS EN FL MACHINE SAFETY EN FL HEATING ELECTR EN FL APPL_INVERTER EN FL_BASE_STATION_EN FL ELEVATOR EN FL POWER SUPPLY EN FL 72H SAMPLE SER EN PO OMNIMATE EN STEP Download Whitepaper Creation date June 12, 2019 9:01:07 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 5     Data sheet OMNIMATE Signal - series BL/SL 5.08 BLF 5.08HC/07/180DF SN OR BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Drawings Dimensional drawing Graph Graph Product benefits Product benefits Uncompromising functionality High vibration resistance Product benefits Solid PUSH IN contact Safe and durable Cost-effective wiring Quick and intuitive operation Creation date June 12, 2019 9:01:07 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 6     Data sheet OMNIMATE Signal - series BL/SL 5.08 BLF 5.08HC/07/180DF SN OR BX   Drawings Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Product benefits Wide clamping range Tool-free wire connection Creation date June 12, 2019 9:01:07 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 7
