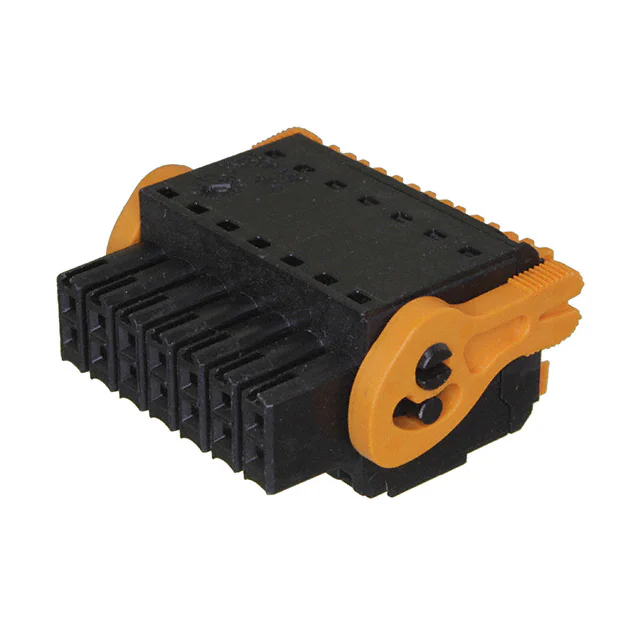

    Data sheet OMNIMATE Signal - series B2C/S2C 3.50 - 2-row B2CF 3.50/14/180LH SN BK BX Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com     Product image Similar to illustration Two-row female plug with PUSH IN spring connection • Simply insert the prepared wire - and you're done • Intuitive to use because • the wire-entry area and handling area are clearly separated • Integrated push-buttons for opening the terminal point • High component density because of low heights • Optional: locking and releasing require no tools when using Weidmüller's release latch (LR) or release lever (LH) General ordering data   Type Order No. Version GTIN (EAN) Qty. Product data Packaging   B2CF 3.50/14/180LH SN BK BX 1375770000 PCB plug-in connector, female plug, 3.50 mm, No. of poles: 14, 180°, PUSH IN, Tension-clamp connection, Clamping range, max. : 1.5 mm², Box 4050118176544 60 pc(s). IEC: 320 V / 13.4 A / 0.14 - 1.5 mm² UL: 300 V / 9.5 A / AWG 26 - AWG 16 Box Creation date February 21, 2019 6:51:35 PM CET   Catalogue status 15.02.2019 / We reserve the right to make technical changes. 1     Data sheet OMNIMATE Signal - series B2C/S2C 3.50 - 2-row B2CF 3.50/14/180LH SN BK BX   Technical data Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Dimensions and weights   Width Height Depth Net weight   31.4 mm 17.25 mm 29.9 mm 9.936 g         Width (inches) Height (inches) Depth (inches)   OMNIMATE Signal - series B2C/S2C 3.50 - 2-row PUSH IN, Tension-clamp connection 0.138 inch 14 0.827 inch 2   Type of connection   Pitch in mm (P)                   Conductor outlet direction L1 in mm Number of rows Rated cross-section Touch-safe protection acc. to DIN VDE 0470 Stripping length Screwdriver blade Plugging cycles Pulling force/pole, max.       Colour code Insulating material group Insulation strength 1.236 inch 0.679 inch 1.177 inch System parameters   Product family Wire connection method Pitch in inches (P) No. of poles L1 in inches Pin series quantity Touch-safe protection acc. to DIN VDE 57 106 Can be coded Actuating force actuating element, max. Screwdriver blade standard Plugging force/pole, max.   Safe from finger touch Yes 40 N DIN 5264 5N Field connection 3.5 mm 180° 21 mm 1 1.5 mm² IP 20 10 mm 0.4 x 2.5 25 5N Material data   Insulating material Colour chart (similar) CTI UL 94 flammability rating Contact surface Storage temperature, min. Max. relative humidity during storage Operating temperature, max. Temperature range, installation, max.   PA 66 GF 30 RAL 9011 ≥ 600 V-0 tinned -25 °C 80 % 120 °C 120 °C             Contact material Layer structure of plug contact Storage temperature, max. Operating temperature, min. Temperature range, installation, min.   black II ≥ 108 Ω Copper alloy 2-5 µm Sn hot-dip tinned 55 °C -50 °C -40 °C Conductors suitable for connection   Clamping range, min. 0.14 mm² Solid, min. H05(07) V-U 0.14 mm² Flexible, min. H05(07) V-K 0.14 mm² w. plastic collar ferrule, DIN 46228 pt 4, min. 0.14 mm² w. wire end ferrule, DIN 46228 pt 1, min 0.14 mm²             Clamping range, max. 1.5 mm² Solid, max. H05(07) V-U 1.5 mm² Flexible, max. H05(07) V-K 1.5 mm² w. plastic collar ferrule, DIN 46228 pt 4, max. 1 mm² w. wire end ferrule, DIN 46228 pt 1, max. 1.5 mm² Creation date February 21, 2019 6:51:35 PM CET   Catalogue status 15.02.2019 / We reserve the right to make technical changes. 2     Data sheet OMNIMATE Signal - series B2C/S2C 3.50 - 2-row B2CF 3.50/14/180LH SN BK BX   Technical data Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Rated data acc. to IEC   tested acc. to standard Rated current, max. no. of poles (Tu=20°C) Rated current, max. no. of poles (Tu=40°C) Rated voltage for surge voltage class / pollution degree III/2 Rated impulse voltage for surge voltage class/ pollution degree II/2 Rated impulse voltage for surge voltage class/ contamination degree III/3       Rated current, min. no. of poles (Tu=20°C) Rated current, min. no. of poles (Tu=40°C) Rated voltage for surge voltage class / pollution degree II/2 Rated voltage for surge voltage class / pollution degree III/3 Rated impulse voltage for surge voltage class/ pollution degree III/2 Short-time withstand current resistance   Certificate No. (CSA)           Rated voltage (Use group C / CSA) Rated current (Use group B / CSA) Rated current (Use group D / CSA) Wire cross-section, AWG, max.     Certificate No. (cURus) 300 V 300 V 9.5 A AWG 26 Specifications are maximum values, details see approval certificate.           Rated voltage (Use group C / UL 1059) Rated current (Use group B / UL 1059) Rated current (Use group D / UL 1059) Wire cross-section, AWG, max.   Box 125 mm     VPE length VPE height 25 mm 350 mm EC002637 EC002637 27-44-04-02 27-44-04-02         ETIM 5.0 eClass 6.2 eClass 8.1 eClass 9.1 EC002637 27-26-07-04 27-44-04-02 27-44-04-02 IEC 60664-1, IEC 61984 10 A 9A 160 V 2.5 kV 2.5 kV         13.4 A 12 A 320 V 160 V 2.5 kV 3 x 1s with 80 A Rated data acc. to CSA   Institute (CSA) Rated voltage (Use group B / CSA) Rated voltage (Use group D / CSA) Rated current (Use group C / CSA) Wire cross-section, AWG, min. Reference to approval values   300 V 300 V 9.5 A AWG 26 Specifications are maximum values, details see approval certificate. 200039-1121690 50 V 9.5 A 9.5 A AWG 16 Rated data acc. to UL 1059   Institute (cURus) Rated voltage (Use group B / UL 1059) Rated voltage (Use group D / UL 1059) Rated current (Use group C / UL 1059) Wire cross-section, AWG, min. Reference to approval values   E60693 50 V 9.5 A 9.5 A AWG 16 Packaging   Packaging VPE width   Classifications   ETIM 4.0 ETIM 6.0 eClass 7.1 eClass 9.0   Creation date February 21, 2019 6:51:35 PM CET   Catalogue status 15.02.2019 / We reserve the right to make technical changes. 3     Data sheet OMNIMATE Signal - series B2C/S2C 3.50 - 2-row B2CF 3.50/14/180LH SN BK BX   Technical data Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Notes   Notes • Additional colours on request • Gold-plated contact surfaces on request • Rated current related to rated cross-section & min. No. of poles. • Crimp shape A for wire-end ferrules with crimping tools PZ 1,5 (order no. 9005990000) or PZ 6/5 (order no. 9011460000) for larger wire cross-sections recommended. • P on drawing = pitch • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. • Max. outer diameter of the conductor 2.6 mm Wire-end ferrule w/plastic collar DIN 46228/4 or Weidmüller colour code • 1.00mm² [H1.0/18D] mtl. ferrule leng. 12mm, stripping leng. 15mm • 0.75mm² [H0.75/18D] mtl. ferrule leng. 12mm, stripping leng. 14mm • 0.50mm² [H0.5/16D] mtl. ferrule leng. 10mm, stripping leng. 12mm • 0.34mm² [H0.34/12] mtl. ferrule leng. 8mm, stripping leng. 10mm • 0.25mm² [H0.25/12] mtl. ferrule leng. 8mm, stripping leng. 10mm • 0.14mm² [H0.14/12] mtl. ferrule leng. 8mm, stripping leng. 10mm Wire-end ferrule w/o plastic collar acc. to DIN 46228/1 • 1.50mm² [H1.5/10] mtl. ferrule leng. 10mm, stripping leng. 10mm IPC conformity   Wire-end ferrule w/plastic collar DIN 46228/4 and 2 connec. cables • 2 x 0.20mm² [H0.5/16] mtl. ferrule leng. 10mm, stripping leng. 12mm • 2 x 0.34mm² [H1.0/18] mtl. ferrule leng. 12mm, stripping leng. 15mm Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. Approvals   Approvals ROHS   Conform Creation date February 21, 2019 6:51:35 PM CET   Catalogue status 15.02.2019 / We reserve the right to make technical changes. 4     Data sheet OMNIMATE Signal - series B2C/S2C 3.50 - 2-row B2CF 3.50/14/180LH SN BK BX   Technical data Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Downloads   Approval/Certificate/Document of Conformity Brochure/Catalogue Engineering Data User Documentation White Paper wire connection   Declaration of the Manufacturer FL DRIVES EN MB DEVICE MANUF. EN FL DRIVES DE FL BUILDING SAFETY EN FL APPL LED LIGHTING EN FL INDUSTR.CONTROLS EN FL MACHINE SAFETY EN FL HEATING ELECTR EN FL APPL_INVERTER EN FL_BASE_STATION_EN FL ELEVATOR EN FL POWER SUPPLY EN FL 72H SAMPLE SER EN PO OMNIMATE EN STEP Operating instruction Download Whitepaper Creation date February 21, 2019 6:51:35 PM CET   Catalogue status 15.02.2019 / We reserve the right to make technical changes. 5     Data sheet OMNIMATE Signal - series B2C/S2C 3.50 - 2-row B2CF 3.50/14/180LH SN BK BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Drawings Dimensional drawing Graph Product benefits Product benefits • Solid PUSH IN contact • Safe and durable Product benefits • • • • Large connection cross-section Up to 1.5 mm possible with ease Fast PUSH IN connection Tool-free and touch-safe Creation date February 21, 2019 6:51:35 PM CET   Catalogue status 15.02.2019 / We reserve the right to make technical changes. 6     Data sheet OMNIMATE Signal - series B2C/S2C 3.50 - 2-row B2CF 3.50/14/180LH SN BK BX   Drawings Product benefits • • Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Example of use Clear marking Unique designation Creation date February 21, 2019 6:51:35 PM CET   Catalogue status 15.02.2019 / We reserve the right to make technical changes. 7
