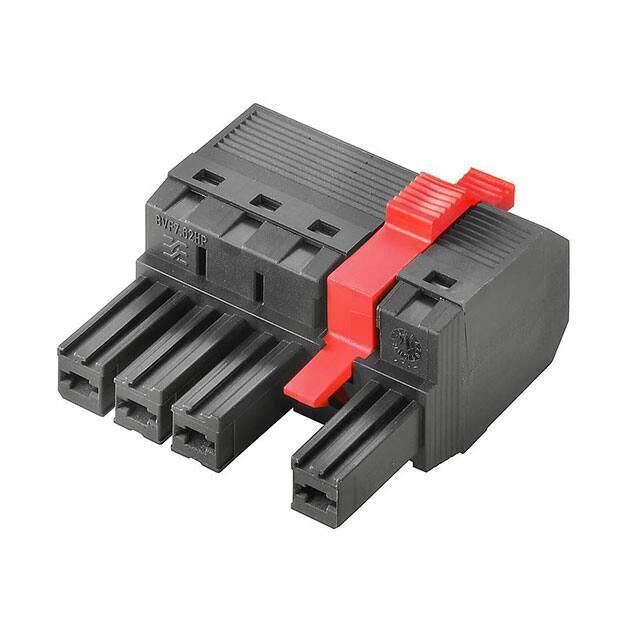

    Data sheet OMNIMATE Power - series BV/SV 7.62HP BVF 7.62HP/05/180MF2 SN BK BX Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com     Product image Similar to illustration 180° female header with PUSH IN connection technology for field wiring in 6 mm² with 7.62 pitch. Meets the requirements as per UL1059 600 V class C and IEC 61800-5-1. Ideal touch-safe solution for the power output. The self-locking (optionally also screwable) middle flange reduces the space requirements by one pitch width in comparison with conventional solutions. Variants: without flange, external flange, middle flange with detent fastening and optionally additional screw mount. General ordering data   Type Order No. Version GTIN (EAN) Qty. Product data Packaging   BVF 7.62HP/05/180MF2 SN BK BX 1430130000 PCB plug-in connector, female plug, 7.62 mm, No. of poles: 5, 180°, PUSH IN, Clamping range, max. : 10 mm², Box 4050118235197 30 pc(s). IEC: 1000 V / 57 A / 0.5 - 10 mm² UL: 600 V / 39 A / AWG 24 - AWG 8 Box Creation date June 12, 2019 9:08:13 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 1     Data sheet OMNIMATE Power - series BV/SV 7.62HP BVF 7.62HP/05/180MF2 SN BK BX   Technical data Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Dimensions and weights   Height Depth Net weight   22.9 mm 47.7 mm 27.542 g       Height (inches) Depth (inches)   OMNIMATE Power - series BV/SV 7.62HP PUSH IN 0.3 inch 5 1.5 inch   Type of connection             Pitch in mm (P) Conductor outlet direction L1 in mm Pin series quantity Touch-safe protection acc. to DIN VDE 57 106 Volume resistance       Stripping length Plugging cycles Pulling force/pole, max.       Colour Insulating material group Insulation strength 0.902 inch 1.878 inch system parameters   Product family Wire connection method Pitch in inches (P) No. of poles L1 in inches Rated cross-section Touch-safe protection acc. to DIN VDE 0470 Can be coded Screwdriver blade Plugging force/pole, max.   6 mm² IP 20 Yes 0.6 x 3.5 17 N Field connection 7.62 mm 180° 38.1 mm 1 Safe from finger touch 4.50 mΩ 12 mm 25 15 N Material data   Insulating material Colour chart (similar) CTI UL 94 flammability rating Contact material Layer structure of plug contact Storage temperature, max. Operating temperature, min. Temperature range, installation, min.   PA GF RAL 9011 ≥ 500 V-0 Copper alloy 6-8 µm Sn glossy 55 °C -50 °C -25 °C             GWFI Contact surface Storage temperature, min. Max. relative humidity during storage Operating temperature, max. Temperature range, installation, max. black II ≥ 108 Ω 960 °C tinned -25 °C 80 % 125 °C 125 °C Conductors suitable for connection   Clamping range, min. 0.5 mm² Clamping range, max. 10 mm² Solid, min. H05(07) V-U 0.5 mm² Solid, max. H05(07) V-U 10 mm² Stranded, max. H07V-R 10 mm² Flexible, min. H05(07) V-K 0.5 mm² Flexible, max. H05(07) V-K 10 mm² w. plastic collar ferrule, DIN 46228 pt 4, 1.5 mm² min. w. plastic collar ferrule, DIN 46228 pt 4, 6 mm² max. w. wire end ferrule, DIN 46228 pt 1, min1.5 mm² w. wire end ferrule, DIN 46228 pt 1, 10 mm² max. Creation date June 12, 2019 9:08:13 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 2     Data sheet OMNIMATE Power - series BV/SV 7.62HP BVF 7.62HP/05/180MF2 SN BK BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Clampable conductor Cross-section for conductor connection AEH Cross-section for conductor connection AEH Cross-section for conductor connection AEH Cross-section for conductor connection AEH Cross-section for conductor connection Max. clamping range   AEH 10 mm² Type nominal Stripping length Stripping length Type nominal Stripping length Stripping length Type nominal Stripping length Stripping length Type nominal Stripping length Stripping length Type nominal Stripping length fine-wired 2.5 mm² nominal nominal fine-wired 4 mm² nominal nominal fine-wired 6 mm² nominal nominal fine-wired 1.5 mm² nominal nominal fine-wired 10 mm² nominal 12 mm 14 mm 12 mm 14 mm 12 mm 14 mm 15 mm 12 mm 12 mm Rated data acc. to IEC   tested acc. to standard Rated current, max. no. of poles (Tu=20°C) Rated current, max. no. of poles (Tu=40°C) Rated voltage for surge voltage class / pollution degree III/2 Rated impulse voltage for surge voltage class/ pollution degree II/2 Rated impulse voltage for surge voltage class/ contamination degree III/3 Clearance, min.   IEC 60664-1, IEC 61984 51 A 45 A 1,000 V 6 kV 8 kV 10.4 mm     Rated current, min. no. of poles (Tu=20°C) Rated current, min. no. of poles (Tu=40°C) Rated voltage for surge voltage class / pollution degree II/2 Rated voltage for surge voltage class / pollution degree III/3 Rated impulse voltage for surge voltage class/ pollution degree III/2 Short-time withstand current resistance   Creepage distance, min.   Certificate No. (CSA)           Rated voltage (Use group C / CSA) Rated current (Use group B / CSA) Rated current (Use group D / CSA) Wire cross-section, AWG, max.           57 A 57 A 1,000 V 800 V 8 kV 3 x 1s with 420 A 12.7 mm Rated data acc. to CSA   Institute (CSA) Rated voltage (Use group B / CSA) Rated voltage (Use group D / CSA) Rated current (Use group C / CSA) Wire cross-section, AWG, min. Reference to approval values   600 V 600 V 33 A AWG 24 Specifications are maximum values, details see approval certificate. 200039-1121690 600 V 33 A 5A AWG 8 Creation date June 12, 2019 9:08:13 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 3     Data sheet OMNIMATE Power - series BV/SV 7.62HP BVF 7.62HP/05/180MF2 SN BK BX   Technical data Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Rated data acc. to UL 1059   Institute (cURus) Rated voltage (Use group B / UL 1059) Rated voltage (Use group D / UL 1059) Rated current (Use group C / UL 1059) Wire cross-section, AWG, min. Reference to approval values     Certificate No. (cURus) 600 V 600 V 39 A AWG 24 Specifications are maximum values, details see approval certificate.           Rated voltage (Use group C / UL 1059) Rated current (Use group B / UL 1059) Rated current (Use group D / UL 1059) Wire cross-section, AWG, max.   Box 135 mm     VPE length VPE height 45 mm 350 mm EC002637 EC002638 27-44-04-02 27-44-03-09         ETIM 5.0 eClass 6.2 eClass 8.1 eClass 9.1 EC002637 27-26-07-04 27-44-04-02 27-44-03-09 E60693 600 V 39 A 5A AWG 8 Packing   Packaging VPE width   Classifications   ETIM 4.0 ETIM 6.0 eClass 7.1 eClass 9.0   Notes   Notes • Additional colours on request • Wire end ferrule with plastic collar to DIN 46228/4 • Wire end ferrule without plastic collar to DIN 46228/1 • P on drawing = pitch • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. • MFX and MSFX: X= Position of the middle flange e.g. MF2, MSF3 IPC conformity   • Versions with pusher, see BVFL Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. Approvals   Approvals ROHS   Conform Creation date June 12, 2019 9:08:13 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 4     Data sheet OMNIMATE Power - series BV/SV 7.62HP BVF 7.62HP/05/180MF2 SN BK BX   Technical data Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Downloads   Approval/Certificate/Document of Conformity Brochure/Catalogue Engineering Data Engineering Data Motion controllers white paper User Documentation White Paper UL 600 V White Paper wire connection   Declaration of the Manufacturer FL DRIVES EN MB DEVICE MANUF. EN FL DRIVES DE CAT 2 PORTFOLIOGUIDE EN FL HEATING ELECTR EN FL APPL_INVERTER EN FL_BASE_STATION_EN FL ELEVATOR EN FL POWER SUPPLY EN FL 72H SAMPLE SER EN PO OMNIMATE EN EPLAN, WSCAD STEP Download Whitepaper Operating Instruction BVF QR-Code product handling video Download Whitepaper Download Whitepaper Creation date June 12, 2019 9:08:13 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 5     Data sheet OMNIMATE Power - series BV/SV 7.62HP BVF 7.62HP/05/180MF2 SN BK BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Drawings Dimensional drawing Graph Similar to illustration Graph Connection diagram Graph Product benefits Installation without tools Outlet direction: 90° und 180° Creation date June 12, 2019 9:08:13 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 6
