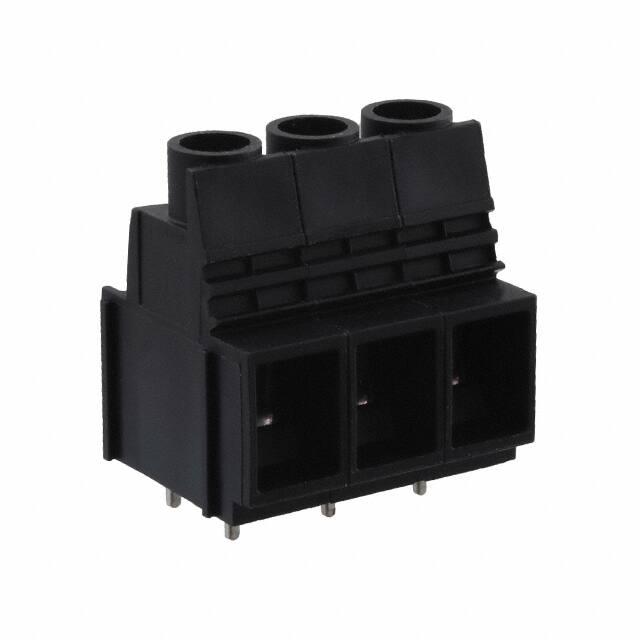

    Data sheet OMNIMATE Power - series LUP LUP 10.16/03/90 5.0SN BK BX Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com     Product image Similar to illustration This PCB terminal provides connections for 1000 V, test point, 76 A and 16 mm² conductor cross-section with proven clamping yoke connection at 10.16 mm pitch, conductor outlet direction in 90° design. General ordering data   Type Order No. Version GTIN (EAN) Qty. Product data Packaging   LUP 10.16/03/90 5.0SN BK BX 2014060000 Printed circuit board terminals, 10.16 mm, No. of poles: 3, 90°, Solder pin length (l): 5 mm, tinned, black, Clamping yoke connection, Clamping range, max. : 16 mm², Box 4050118399226 20 pc(s). IEC: 1000 V / 76 A / 0.5 - 16 mm² UL: 300 V / 58 A / AWG 26 - AWG 6 Box Creation date June 12, 2019 9:25:09 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 1     Data sheet OMNIMATE Power - series LUP LUP 10.16/03/90 5.0SN BK BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Dimensions and weights   Width Height Height of lowest version Depth (inches)   31.28 mm 36.5 mm 31.5 mm 0.988 inch         Width (inches) Height (inches) Depth Net weight   Wire connection method                         Conductor outlet direction Pitch in inches (P) Fitted by customer Solder pin length (l) Solder eyelet hole diameter (D) Number of solder pins per pole Screwdriver blade standard Tightening torque, max. Stripping length L1 in inches Touch-safe protection acc. to DIN VDE 57 106             Colour Insulating material group UL 94 flammability rating Contact surface Storage temperature, min.       Max. relative humidity during storage Operating temperature, max. Temperature range, installation, max. 1.231 inch 1.437 inch 25.1 mm 27.96 g System parameters   Product family OMNIMATE Power - series LUP Mounting onto the PCB THT solder connection Pitch in mm (P) 10.16 mm No. of poles 3 Max. adjacent poles per row 12 Solder pin dimensions 1.2 x 1.2 mm Solder eyelet hole diameter tolerance (D)+ 0,1 mm Screwdriver blade 1.0 x 5.5, PZ 2 Tightening torque, min. 1.2 Nm Clamping screw M4 L1 in mm 20.32 mm Touch-safe protection acc. to DIN VDE IP20 plugged/ IP10 0470 unplugged Volume resistance 0.50 mΩ   Clamping yoke connection 90° 0.4 inch Yes 5 mm 1.6 mm 2 DIN 5264 1.5 Nm 12 mm 0.8 inch Safe from finger touch Material data   Insulating material Colour chart (similar) CTI Contact material Layer structure of solder connection Storage temperature, max. Operating temperature, min. Temperature range, installation, min.   Wemid (PA) RAL 9011 ≥ 600 E-Cu 1.5-3 µm Ni / 4-6 µm Sn matt 55 °C -50 °C -25 °C black I V-0 tinned -25 °C 80 % 120 °C 120 °C Conductors suitable for connection   Clamping range, min. 0.13 mm² Clamping range, max. 16 mm² Wire connection cross section AWG, AWG 22 min. Wire connection cross section AWG, AWG 6 max. Solid, min. H05(07) V-U 0.5 mm² Solid, max. H05(07) V-U 16 mm² Stranded, min. H07V-R 6 mm² Stranded, max. H07V-R 16 mm² Flexible, min. H05(07) V-K 0.5 mm² Flexible, max. H05(07) V-K 16 mm² w. plastic collar ferrule, DIN 46228 pt 4, 2.5 mm² min. w. plastic collar ferrule, DIN 46228 pt 4, 10 mm² max. w. wire end ferrule, DIN 46228 pt 1, min2.5 mm² w. wire end ferrule, DIN 46228 pt 1, 10 mm² max. Creation date June 12, 2019 9:25:09 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 2     Data sheet OMNIMATE Power - series LUP LUP 10.16/03/90 5.0SN BK BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Plug gauge in accordance with EN 60999 a x b; ø Clampable conductor 5.4 mm x 5.1 mm; 5.3 mm Cross-section for conductor connection AEH Cross-section for conductor connection AEH Cross-section for conductor connection AEH Cross-section for conductor connection AEH Max. clamping range   16 mm² Type nominal Stripping length Stripping length Type nominal Stripping length Stripping length Type nominal Stripping length Stripping length Type nominal Stripping length Stripping length fine-wired 2.5 mm² nominal nominal fine-wired 4 mm² nominal nominal fine-wired 6 mm² nominal nominal fine-wired 10 mm² nominal nominal 12 mm 14 mm 12 mm 14 mm 12 mm 14 mm 15 mm 12 mm Rated data acc. to IEC   tested acc. to standard Rated current, max. no. of poles (Tu=20°C) Rated current, max. no. of poles (Tu=40°C) Rated voltage for surge voltage class / pollution degree III/2 Rated impulse voltage for surge voltage class/ pollution degree II/2 Rated impulse voltage for surge voltage class/ contamination degree III/3   IEC 60664-1, IEC 61984 72 A 62 A 1,000 V 6 kV 8 kV     Rated current, min. no. of poles (Tu=20°C) Rated current, min. no. of poles (Tu=40°C) Rated voltage for surge voltage class / pollution degree II/2 Rated voltage for surge voltage class / pollution degree III/3 Rated impulse voltage for surge voltage class/ pollution degree III/2 Short-time withstand current resistance   Certificate No. (CSA)           Rated voltage (Use group C / CSA) Rated current (Use group B / CSA) Rated current (Use group D / CSA) Wire cross-section, AWG, max.           76 A 72 A 1,000 V 800 V 8 kV 1 x 1s with 700 A Rated data acc. to CSA   Institute (CSA) Rated voltage (Use group B / CSA) Rated voltage (Use group D / CSA) Rated current (Use group C / CSA) Wire cross-section, AWG, min. Reference to approval values   300 V 600 V 58 A AWG 22 Specifications are maximum values, details see approval certificate. 200039-1198743 300 V 58 A 5A AWG 6 Creation date June 12, 2019 9:25:09 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 3     Data sheet OMNIMATE Power - series LUP LUP 10.16/03/90 5.0SN BK BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Rated data acc. to UL 1059   Institute (cURus) Rated voltage (Use group B / UL 1059) Rated voltage (Use group D / UL 1059) Rated current (Use group C / UL 1059) Wire cross-section, AWG, min. Reference to approval values     Certificate No. (cURus) 300 V 600 V 58 A AWG 26 Specifications are maximum values, details see approval certificate.           Rated voltage (Use group C / UL 1059) Rated current (Use group B / UL 1059) Rated current (Use group D / UL 1059) Wire cross-section, AWG, max.   Box 0m     VPE length VPE height 0m 0m EC001284 EC002643 27-26-11-01 27-44-04-01         ETIM 4.0 ETIM 6.0 eClass 9.0   EC002643 EC002643 27-44-04-01 E60693 300 V 58 A 5A AWG 6 Packing   Packaging VPE width   Classifications   ETIM 3.0 ETIM 5.0 eClass 6.2 eClass 9.1   Notes   Notes • Additional colours on request • Rated current related to rated cross-section & min. No. of poles. • Wire end ferrule without plastic collar to DIN 46228/1 • Wire end ferrule with plastic collar to DIN 46228/4 • The data given under CSA relates to a cUL approval - E60693 • P on drawing = pitch • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. IPC conformity   • The test point can only be used as potential-pickup point. Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. Approvals   Approvals ROHS   Conform Creation date June 12, 2019 9:25:09 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 4     Data sheet OMNIMATE Power - series LUP LUP 10.16/03/90 5.0SN BK BX   Technical data Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Downloads   Approval/Certificate/Document of Conformity Brochure/Catalogue Engineering Data Engineering Data Motion controllers white paper User Documentation White Paper UL 600 V   Declaration of the Manufacturer FL DRIVES EN MB DEVICE MANUF. EN FL DRIVES DE FL APPL_INVERTER EN FL_BASE_STATION_EN FL ELEVATOR EN FL POWER SUPPLY EN FL 72H SAMPLE SER EN PO OMNIMATE EN EPLAN, WSCAD STEP Download Whitepaper QR-Code product handling video Download Whitepaper Creation date June 12, 2019 9:25:09 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 5     Data sheet OMNIMATE Power - series LUP LUP 10.16/03/90 5.0SN BK BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Drawings Dimensional drawing Graph Graph Creation date June 12, 2019 9:25:09 PM CEST   Catalogue status 07.06.2019 / We reserve the right to make technical changes. 6 Wave Solder Profile   Recommended wave solderding profiles Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com   Single Wave:   260 Contact time appr. 3 sec. 260 °C 255 °C 250 °C 240 220 200 Temperature [°C] 180 160 140 appr. 150 °C Preheating 120 100 Cooling rate < 6 °K/s 80 60 Typical process Prozess limits Temperature on board 40 Heating rate < 3 °K/s 20 0 0 20 40 60 80 100 120 time [s] 140 160 180 200 220 240 Double Wave: 255 °C Total contact time max. 10 sec. 260 240 260 °C 250 °C 220 200 Temperature [°C] 180 160 140 appr. 150°C Preheating 120 100 Cooling rate < 6 °K/s 80 60 Typical process Process limits Temperature on board 40 Heating rate < 3 °K/s 20 0 0 20 40 60 Wave soldering profiles 80 100 120 time [s] 140 160 180 200 220 240 Wired connection elements should be processed in accordance with the DIN EN 61760-1 standard. We have included two recommendations for practical wave soldering profiles, with which Weidmüller PCB terminals and connectors are qualified. When choosing a suitable profile for your application, the following factors also need to be considered: - PCB thickness - Proportion of Cu in the layers - Single/double-sided assembly - Product range - Heating and cooling rates The single and double wave profiles each indicate the recommended operating range, including the maximum soldering temperature of 260°C. In practice, the maximum soldering temperature is quite often well below the above maximum profile.   We reserve the right to make technical changes.
