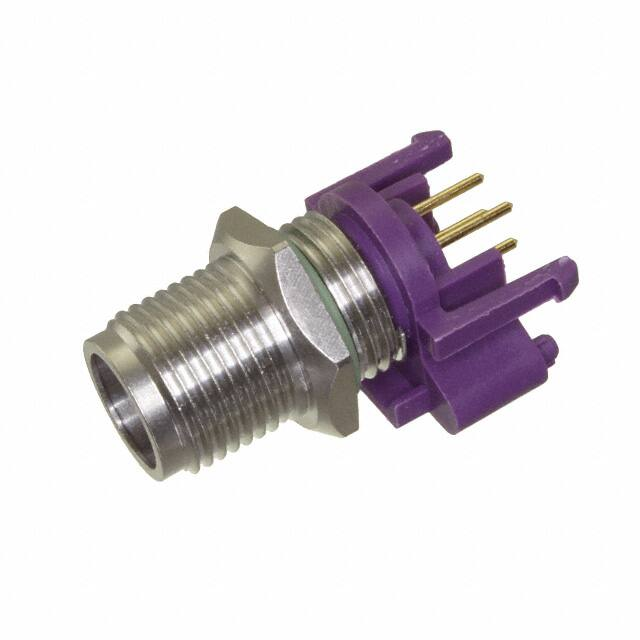

    Data sheet SAIE-M12SB-4-F10TL Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com     Weidmüller is now one of the industry's leading international providers of connectors. An important mainstay in this product family are the circular connectors, which Weidmüller groups under the product name SAI. In the development of SAI products, Weidmüller engineers have always concentrated on achieving rational, cost-effective installation concepts, and – in cooperation with major users – have supplied the markets with well-conceived products which set standards in terms of functionality and quality across the globe. The best examples are the new power distributors with S and T coded M12. These modules are characterised by particularly high currents and voltages. This enables them to also be used, for example, with three-phase motors. General ordering data   Type Order No. Version GTIN (EAN) Qty.   SAIE-M12SB-4-F10TL 2423960000 Built-in plugs, M12, No. of poles: 4 4050118432268 10 pc(s). Creation date February 19, 2019 4:37:39 PM CET   Catalogue status 15.02.2019 / We reserve the right to make technical changes. 1     Data sheet SAIE-M12SB-4-F10TL   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Dimensions and weights   Net weight                                   Housing surface Mounting height No. of poles Type of mounting Rated voltage (text) Rated current Protection degree Housing main material Tightening torque Mounting torque range Insulation strength Plugging cycles     Lock nut material   CuZn   Contact surface Au (Gold) Dip solder 4 ≥ 100       Insulation strength Pin series quantity Protection degree 100 MΩ 1 IP67 EC002638 27-44-03-09     eClass 6.2 eClass 9.1 27-26-07-02 27-44-03-09 13.7 g Environmental Product Compliance   REACH SVHC   Lead 7439-92-1 Technical data of PCB plug-in connector   Coding Housings Mounting thread Shield connection Rated voltage Rated current Temperature range Contact surface Connection thread Mounting thread Mounting onto the PCB Pollution severity B M12 pin M12 Yes 250 V 4A -30…80 °C Au (Gold) M12 M 12 Dip solder 3 (2 within the sealed area) Contact material CuZn Material of the flange-mounted housing Nickel-plated CuZn   nickel-plated 10 mm 4 Front mounting 250 V 4A IP67 CuZn, nickel-plated M12: 0.8 Nm 1.2 Nm 100 MΩ ≥ 100 Nickel-plated CuZn Material data   Contact material   System parameters   Mounting onto the PCB No. of poles Plugging cycles   Classifications   ETIM 6.0 eClass 9.0   Approvals   ROHS   Conform Downloads   Brochure/Catalogue Engineering Data   FL FIELDWIRING EN STEP Creation date February 19, 2019 4:37:39 PM CET   Catalogue status 15.02.2019 / We reserve the right to make technical changes. 2     Data sheet SAIE-M12SB-4-F10TL   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Drawings Dimensioned drawing PCB design Front panel section Pole scheme Creation date February 19, 2019 4:37:39 PM CET   Catalogue status 15.02.2019 / We reserve the right to make technical changes. 3
