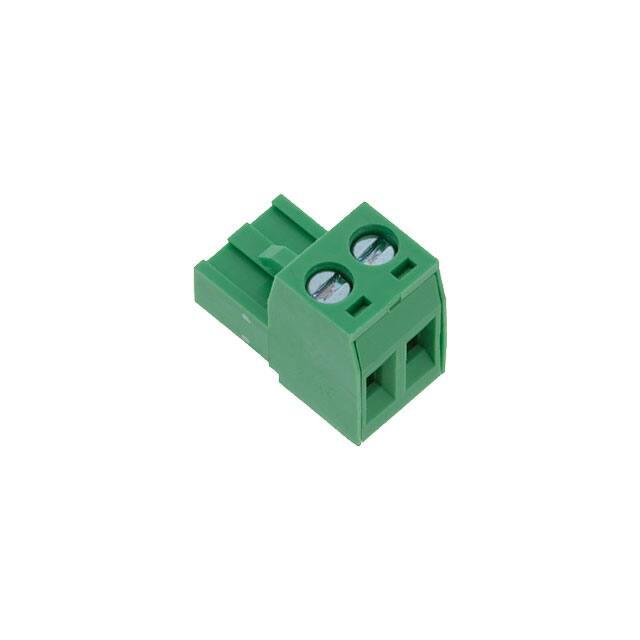

    Data sheet OMNIMATE basic – Series CPS CPS 5.00/02/180 SN GN BX Weidmüller Interface GmbH & Co. KG Klingenbergstraße 26 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com     General ordering data   Type Order No. GTIN (EAN) Qty. Product data Packaging   CPS 5.00/02/180 SN GN BX 2644030000 4050118642940 360 pc(s). IEC: 630 V / 15 A / 0.2 - 4 mm² UL: 300 V / 15 A / AWG 30 - AWG 12 Box Creation date November 4, 2019 3:01:22 PM CET   Catalogue status 01.11.2019 / We reserve the right to make technical changes. 1     Data sheet OMNIMATE basic – Series CPS CPS 5.00/02/180 SN GN BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 26 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Dimensions and weights   Net weight   3.5 g     OMNIMATE basic – Series CPS 5 mm 2 0.197 inch 1 1.2 N   Type of connection           Pitch in inches (P) L1 in mm Number of rows Plugging cycles Pulling force/pole, max. System specifications   Product family Pitch in mm (P) Number of poles L1 in inches Pin series quantity Plugging force/pole, max.   Field connection 0.197 inch 5 mm 1 150 1.2 N System Parameters   Product family Wire connection method Pitch in inches (P) L1 in mm Number of rows Stripping length Tightening torque, max. Screwdriver blade Plugging force/pole, max.   OMNIMATE basic – Series   CPS Clamping yoke connection     0.197 inch   5 mm   1   7 mm   0.55 Nm   0.6 x 3.5   1.2 N Type of connection Pitch in mm (P) Number of poles L1 in inches Pin series quantity Tightening torque, min. Clamping screw Plugging cycles Pulling force/pole, max. Field connection 5 mm 2 0.197 inch 1 0.5 Nm M3 150 1.2 N             Colour Insulating material group UL 94 flammability rating Contact material Tinning type Operating temperature, max. Pale green I V-0 Copper alloy matt 105 °C     Clamping range, max. 4 mm² Wire connection cross section AWG, max. AWG 12 Solid, max. H05(07) V-U 4 mm² Stranded, max. H07V-R 4 mm² Flexible, max. H05(07) V-K 4 mm² w. plastic collar ferrule, DIN 46228 pt 4, max. 2.5 mm² w. wire end ferrule, DIN 46228 pt 1, max. 2.5 mm²   Material data   Insulating material Colour chart (similar) Insulation strength Contact base material Contact surface Operating temperature, min.   PA RAL 6021 500 MΩ Copper alloy tinned -40 °C Conductors suitable for connection   Clamping range, min. 0.2 mm² Wire connection cross section AWG, min. AWG 30 Solid, min. H05(07) V-U 0.2 mm² Stranded, min. H07V-R 0.05 mm² Flexible, min. H05(07) V-K 0.2 mm² w. plastic collar ferrule, DIN 46228 pt 4, min. 0.2 mm² w. wire end ferrule, DIN 46228 pt 1, min. 0.2 mm² Max. clamping range 4 mm²               Creation date November 4, 2019 3:01:22 PM CET   Catalogue status 01.11.2019 / We reserve the right to make technical changes. 2     Data sheet OMNIMATE basic – Series CPS CPS 5.00/02/180 SN GN BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 26 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Rated data acc. to IEC   Rated current, min. number of poles (Tu=20°C) Rated voltage for surge voltage class / pollution degree III/2 Rated impulse voltage for surge voltage class/ pollution degree II/2 Rated impulse voltage for surge voltage class/ contamination degree III/3       Rated voltage for surge voltage class / pollution degree II/2 630 V Rated voltage for surge voltage class / pollution degree III/3 250 V Rated impulse voltage for surge voltage class/ pollution degree III/2 4 kV         Rated voltage (Use group D / CSA) Rated current (Use group D / CSA) Wire cross-section, AWG, max.   Certificate No. (cURus) 300 V 15 A AWG 30 Specifications are maximum values, details see approval certificate.         E60693 Rated voltage (Use group D / UL 1059) 300 V Rated current (Use group D / UL 1059) 10 A Wire cross-section, AWG, max. AWG 12   Box 130 mm     VPE length VPE height 170 mm 50 mm EC002638 27-44-03-09 27-44-03-09       ETIM 7.0 eClass 9.1   EC002638 27-44-03-09 15 A 320 V 4 kV 4 kV     Rated data acc. to CSA   Rated voltage (Use group B / CSA) Rated current (Use group B / CSA) Wire cross-section, AWG, min.   300 V 15 A AWG 30 300 V 10 A AWG 12 Rated data acc. to UL 1059   Institute (cURus) Rated voltage (Use group B / UL 1059) Rated current (Use group B / UL 1059) Wire cross-section, AWG, min. Reference to approval values   Packing   Packaging VPE width   Classifications   ETIM 6.0 eClass 9.0 eClass 10.0   Notes   Notes • Only compatible with OMNIMATE basic products • P on drawing = pitch • Rated current related to rated cross-section & min. No. of poles.   • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Creation date November 4, 2019 3:01:22 PM CET   Catalogue status 01.11.2019 / We reserve the right to make technical changes. 3     Data sheet OMNIMATE basic – Series CPS CPS 5.00/02/180 SN GN BX   Technical data Weidmüller Interface GmbH & Co. KG Klingenbergstraße 26 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Approvals   Approvals ROHS   Conform Creation date November 4, 2019 3:01:22 PM CET   Catalogue status 01.11.2019 / We reserve the right to make technical changes. 4     Data sheet OMNIMATE basic – Series CPS CPS 5.00/02/180 SN GN BX   Drawings Weidmüller Interface GmbH & Co. KG Klingenbergstraße 26 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Creation date November 4, 2019 3:01:22 PM CET   Catalogue status 01.11.2019 / We reserve the right to make technical changes. 5     Data sheet OMNIMATE basic – Series CPS CPS 5.00/02/180 SN GN BX   Drawings Weidmüller Interface GmbH & Co. KG Klingenbergstraße 26 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Creation date November 4, 2019 3:01:22 PM CET   Catalogue status 01.11.2019 / We reserve the right to make technical changes. 6
