2646150000

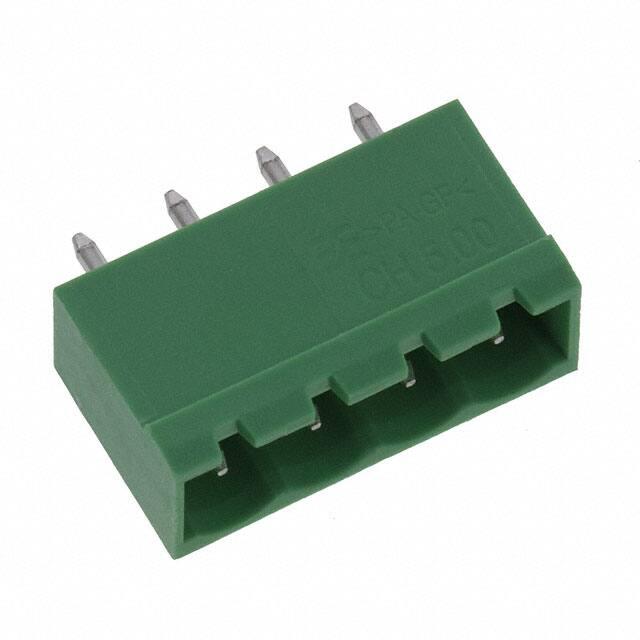

    Data sheet OMNIMATE basic – Series CH CH 5.00/04/180G 3.9SN GN BX Weidmüller Interface GmbH & Co. KG Klingenbergstraße 26 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com     General ordering data   Type Order No. GTIN (EAN) Qty. Product data Packaging   CH 5.00/04/180G 3.9SN GN BX 2646150000 4050118640823 300 pc(s). IEC: 630 V / 15 A UL: 300 V / 15 A Box Creation date November 4, 2019 3:02:39 PM CET   Catalogue status 01.11.2019 / We reserve the right to make technical changes. 1     Data sheet OMNIMATE basic – Series CH CH 5.00/04/180G 3.9SN GN BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 26 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Dimensions and weights   Net weight   1.56 g     OMNIMATE basic – Series CH THT solder connection 0.197 inch 4 3.9 mm 1.0 x 1.0 mm 15 mm 1 150   Type of connection                 Pitch in mm (P) Outgoing elbow Number of solder pins per pole Tolerance of solder pin position Solder eyelet hole diameter (D) L1 in inches Pin series quantity   OMNIMATE basic – Series CH 5 mm 4 0.591 inch 1   Type of connection         Pitch in inches (P) L1 in mm Number of rows Plugging cycles Board connection 0.197 inch 15 mm 1 150 PA GF RAL 6021 500 MΩ Copper alloy tinned -40 °C             Colour Insulating material group UL 94 flammability rating Contact material Tinning type Operating temperature, max. Pale green I V-0 Copper alloy matt 105 °C     Rated voltage for surge voltage class / pollution degree II/2 630 V Rated voltage for surge voltage class / pollution degree III/3 250 V Rated impulse voltage for surge voltage class/ pollution degree III/2 4 kV       Rated voltage (Use group D / CSA) Rated current (Use group D / CSA) System specifications   Product family Mounting onto the PCB Pitch in inches (P) Number of poles Solder pin length (l) Solder pin dimensions L1 in mm Number of rows Plugging cycles   Board connection 5 mm 180° 1 ± 0.1 mm 1.6 mm 0.591 inch 1 System Parameters   Product family Pitch in mm (P) Number of poles L1 in inches Pin series quantity   Material data   Insulating material Colour chart (similar) Insulation strength Contact base material Contact surface Operating temperature, min.   Rated data acc. to IEC   Rated current, min. number of poles (Tu=20°C) Rated voltage for surge voltage class / pollution degree III/2 Rated impulse voltage for surge voltage class/ pollution degree II/2 Rated impulse voltage for surge voltage class/ contamination degree III/3   15 A 320 V 4 kV 4 kV     Rated data acc. to CSA   Rated voltage (Use group B / CSA) Rated current (Use group B / CSA)   300 V 15 A 300 V 10 A Creation date November 4, 2019 3:02:39 PM CET   Catalogue status 01.11.2019 / We reserve the right to make technical changes. 2     Data sheet OMNIMATE basic – Series CH CH 5.00/04/180G 3.9SN GN BX   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 26 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Rated data acc. to UL 1059   Institute (cURus)     Rated voltage (Use group B / UL 1059) 300 V   Rated current (Use group B / UL 1059) 15 A   Reference to approval values Specifications are maximum values, details see approval certificate. Certificate No. (cURus) E60693 Rated voltage (Use group D / UL 1059) 300 V Rated current (Use group D / UL 1059) 10 A     Packing   Packaging VPE width   Box 130 mm     VPE length VPE height 170 mm 50 mm EC002637 27-44-04-02 27-44-04-02       ETIM 7.0 eClass 9.1   EC002637 27-44-04-02 Classifications   ETIM 6.0 eClass 9.0 eClass 10.0   Notes   Notes • Only compatible with OMNIMATE basic products • P on drawing = pitch • Rated current related to rated cross-section & min. No. of poles.   • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Approvals   Approvals ROHS   Conform Creation date November 4, 2019 3:02:39 PM CET   Catalogue status 01.11.2019 / We reserve the right to make technical changes. 3     Data sheet OMNIMATE basic – Series CH CH 5.00/04/180G 3.9SN GN BX   Drawings Weidmüller Interface GmbH & Co. KG Klingenbergstraße 26 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Creation date November 4, 2019 3:02:39 PM CET   Catalogue status 01.11.2019 / We reserve the right to make technical changes. 4 Wave Solder Profile   Recommended wave solderding profiles Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com   Single Wave:   260 Contact time appr. 3 sec. 260 °C 255 °C 250 °C 240 220 200 Temperature [°C] 180 160 140 appr. 150 °C Preheating 120 100 Cooling rate < 6 °K/s 80 60 Typical process Prozess limits Temperature on board 40 Heating rate < 3 °K/s 20 0 0 20 40 60 80 100 120 time [s] 140 160 180 200 220 240 Double Wave: 255 °C Total contact time max. 10 sec. 260 240 260 °C 250 °C 220 200 Temperature [°C] 180 160 140 appr. 150°C Preheating 120 100 Cooling rate < 6 °K/s 80 60 Typical process Process limits Temperature on board 40 Heating rate < 3 °K/s 20 0 0 20 40 60 Wave soldering profiles 80 100 120 time [s] 140 160 180 200 220 240 Wired connection elements should be processed in accordance with the DIN EN 61760-1 standard. We have included two recommendations for practical wave soldering profiles, with which Weidmüller PCB terminals and connectors are qualified. When choosing a suitable profile for your application, the following factors also need to be considered: - PCB thickness - Proportion of Cu in the layers - Single/double-sided assembly - Product range - Heating and cooling rates The single and double wave profiles each indicate the recommended operating range, including the maximum soldering temperature of 260°C. In practice, the maximum soldering temperature is quite often well below the above maximum profile.   We reserve the right to make technical changes.
