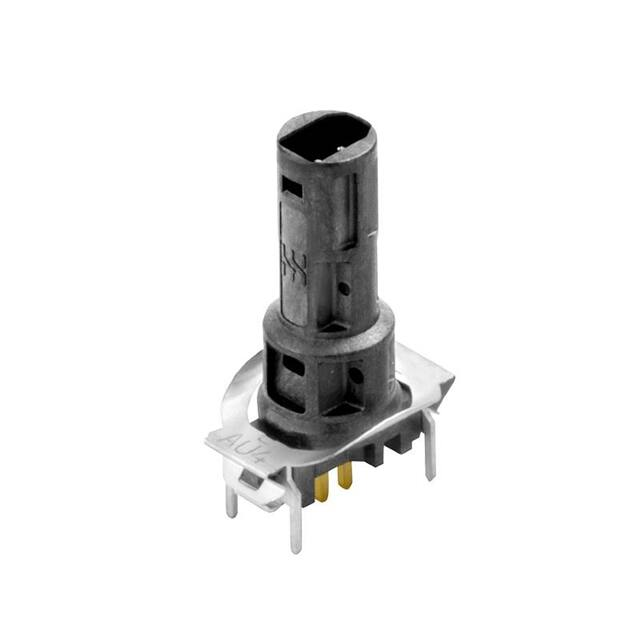

2735920000

    Data sheet IE-PCB-SPM-P-180-THR Weidmüller Interface GmbH & Co. KG Klingenbergstraße 26 D-32758 Detmold Germany   www.weidmueller.com     Single pair Ethernet is a technology that only requires one pair of wires to transmit data and power. The resulting benefits will make SPE the preferred network at the field level and beyond. Advantages of Single Pair Ethernet • Consistent: Single Pair Ethernet enables uniform Ethernet-based communication from the sensor to the cloud • Future-proof: key technology for Industry 4.0 and IIoT • Flexible: ranges of up to 1000 m and transmission properties of up to 1 Gbps enable use across applications • Innovative: lighter, less space required, and reduced installation effort General ordering data   Version Order No. Type GTIN (EAN) Qty.   Built-in plugs, M8 PCB insert, Socket connector, Solder connection, Male contact, THT/THR solder connection, 180°, Number of poles: 2 2735920000 IE-PCB-SPM-P-180-THR 4050118820164 100 pc(s). Creation date March 22, 2021 7:09:37 PM CET   Catalogue status 12.03.2021 / We reserve the right to make technical changes. 1     Data sheet IE-PCB-SPM-P-180-THR   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 26 D-32758 Detmold Germany   www.weidmueller.com Technical data Dimensions and weights   Net weight   3g     -40 °C...85 °C     LCP THR solder connection V-0 M8 Ni/Au           Connection 1 Configuration Category Contact material Plugging cycles Temperatures   Operating temperature   General Info   Contact carrier material Connection 2 UL 94 flammability rating Connection thread Contact surface   M8 - Male Reflow compatible T1-B Copper alloy ≥ 100 Electrical properties   Current-carrying capacity Dielectric strength, contact / contact Dielectric strength, contact / shield Insulation strength Operational voltage range Rated voltage   Current-carrying capacity Temperature 1000 V DC 2250 V DC ≥ 500 MΩ ≤ 50 V AC, ≤ 60 V DC 72 V 3.5 A 0 °C General standards   Connector standard   IEC 63171-5     EC000438 27-44-02-05 27-44-02-23       ETIM 7.0 ECLASS 10.0   Classifications   ETIM 6.0 ECLASS 9.1 ECLASS 11.0   EC003557 27-44-02-23 Approvals   ROHS   Conform Downloads   Engineering Data   STEP Creation date March 22, 2021 7:09:37 PM CET   Catalogue status 12.03.2021 / We reserve the right to make technical changes. 2     Data sheet IE-PCB-SPM-P-180-THR   Drawings Weidmüller Interface GmbH & Co. KG Klingenbergstraße 26 D-32758 Detmold Germany   www.weidmueller.com Creation date March 22, 2021 7:09:37 PM CET   Catalogue status 12.03.2021 / We reserve the right to make technical changes. 3
