Product catalogue | PCB Components and Housings for Electronics | PCB terminals | Clamping yoke connection | LM
5.00 / 5.08 | LM 5.08/180
General ordering data
Order No.
Part designation
Version
EAN
Qty.
9994760000

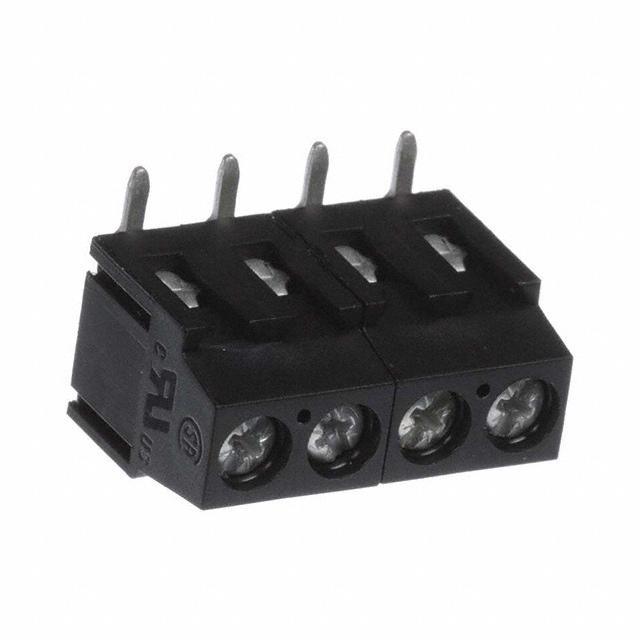

LM5.08/4/180 3.5 SW
PCB terminal, Clamping yoke connection,
Soldered connection, Clamping range, max.: 2.5
mm², Pitch: 5.08 mm, No. of poles: 4, 180°, Box
4032248377916
50 pc(s).
System parameters
Product family
Conductor connection system
Fitted to PCB
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
Fitted by customer
Max. adjacent poles per row
No. of rows
Solder pin length
Dia. of fitting hole
Fitting hole tolerance
No. of solder pins per pole
System LM
Clamping yoke connection
Soldered connection
180°
5.08 mm
0.2 inch
4
yes
24
1
3.5 mm
1.3 mm
+ 0.1 mm
1
-1-
Product catalogue | PCB Components and Housings for Electronics | PCB terminals | Clamping yoke connection | LM
5.00 / 5.08 | LM 5.08/180
System parameters
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
0.6 x 3.5
DIN 5264
0.4 Nm
0.5 Nm
M 2.5
6 mm
15.24 mm
0.6 inch
IP 10
Safe from finger touch
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Temperature of glow-wire test
Duration of glow-wire test
Contact base material
Contact surface
Storage temperature, min.
Storage temperature, max.
Wemid (PA)
black
Similar to RAL 9011
I
V-0
>= 600
750 °C
30 S
Copper alloy
tinned
-25 °C
55 °C
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
O.D. of conductor insulation, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
0.2 mm²
2.5 mm²
24
14
2.9 mm
0.2 mm²
2.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1.5 mm²
0.25 mm²
1.5 mm²
2.4 mm x 1.5 mm; 1.9mm
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
17.5 A
16 A
17.5 A
14.2 A
630 V
320 V
-2-
Product catalogue | PCB Components and Housings for Electronics | PCB terminals | Clamping yoke connection | LM
5.00 / 5.08 | LM 5.08/180
DIN IEC rating data
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
250 V
4 kV
4 kV
4 kV
3 x 1s with 120 A
CSA rating data
Rated voltage, user group D
Rated current, user group D
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
300 V
10 A
24
14
UL 1059 rating data
Rated voltage, user group D
Rated current, user group D
AWG conductor, min.
AWG conductor, max.
300 V
10 A
24
14
Approvals
Approvals institutes
Downloads
CAD Library (P-CAD Format - Standard)
LM.lib
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
NK
NK
NK
Similar products
-3-
Product catalogue | PCB Components and Housings for Electronics | PCB terminals | Clamping yoke connection | LM
5.00 / 5.08 | LM 5.08/180
Order No.
1716100000
Part designation
LM5.08/2/180 OR
1716040000
LM5.08/2/180 SW
1915800000
LM 5.08/2/180 GR
1716160000
LM5.08/2/180 GN
1716110000
LM5.08/3/180 OR
1716050000
LM5.08/3/180 SW
1915810000
LM 5.08/3/180 GR
1716170000
LM5.08/3/180 GN
9994970000
LM5.08/4/180 3.5 OR
9994980000
LM5.08/5/180 3.5 OR
9994770000
LM5.08/5/180 3.5 SW
9994990000
LM5.08/6/180 3.5 OR
9994780000
LM5.08/6/180 3.5 SW
9995000000
LM5.08/7/180 3.5 OR
9994790000
LM5.08/7/180 3.5 SW
9995010000
LM5.08/8/180 3.5 OR
9994800000
LM5.08/8/180 3.5 SW
Version
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 2,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 2,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 2,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 2,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 3,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 3,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 3,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 3,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 4,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 5,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 5,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 6,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 6,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 7,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 7,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 8,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 8,
180°, Box
-4-
Product catalogue | PCB Components and Housings for Electronics | PCB terminals | Clamping yoke connection | LM
5.00 / 5.08 | LM 5.08/180
9995020000
LM5.08/9/180 3.5 OR
9994810000
LM5.08/9/180 3.5 SW
9995030000
LM5.08/10/180 3.5 OR
9994820000
LM5.08/10/180 3.5 SW
9995040000
LM5.08/11/180 3.5 OR
9994830000
LM5.08/11/180 3.5 SW
9995050000
LM5.08/12/180 3.5 OR
9994840000
LM5.08/12/180 3.5 SW
9995060000
LM5.08/13/180 3.5 OR
9994850000
LM5.08/13/180 3.5 SW
9995070000
LM5.08/14/180 3.5 OR
9994860000
LM5.08/14/180 3.5 SW
9995080000
LM5.08/15/180 3.5 OR
9994870000
LM5.08/15/180 3.5 SW
9995090000
LM5.08/16/180 3.5 OR
9994880000
LM5.08/16/180 3.5 SW
9995100000
LM5.08/17/180 3.5 OR
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 9,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 9,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 10,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 10,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 11,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 11,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 12,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 12,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 13,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 13,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 14,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 14,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 15,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 15,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 16,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 16,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 17,
180°, Box
-5-
Product catalogue | PCB Components and Housings for Electronics | PCB terminals | Clamping yoke connection | LM
5.00 / 5.08 | LM 5.08/180
9994890000
LM5.08/17/180 3.5 SW
9995110000
LM5.08/18/180 3.5 OR
9994900000
LM5.08/18/180 3.5 SW
9995120000
LM5.08/19/180 3.5 OR
9994910000
LM5.08/19/180 3.5 SW
9995130000
LM5.08/20/180 3.5 OR
9994920000
LM5.08/20/180 3.5 SW
9995140000
LM5.08/21/180 3.5 OR
9994930000
LM5.08/21/180 3.5 SW
9995150000
LM5.08/22/180 3.5 OR
9994940000
LM5.08/22/180 3.5 SW
9995210000
LM5.08/23/180 3.5 OR
9994950000
LM5.08/23/180 3.5 SW
9995220000
LM5.08/24/180 3.5 OR
9994960000
LM5.08/24/180 3.5 SW
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 17,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 18,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 18,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 19,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 19,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 20,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 20,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 21,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 21,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 22,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 22,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 23,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 23,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 24,
180°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 24,
180°, Box
-6-
