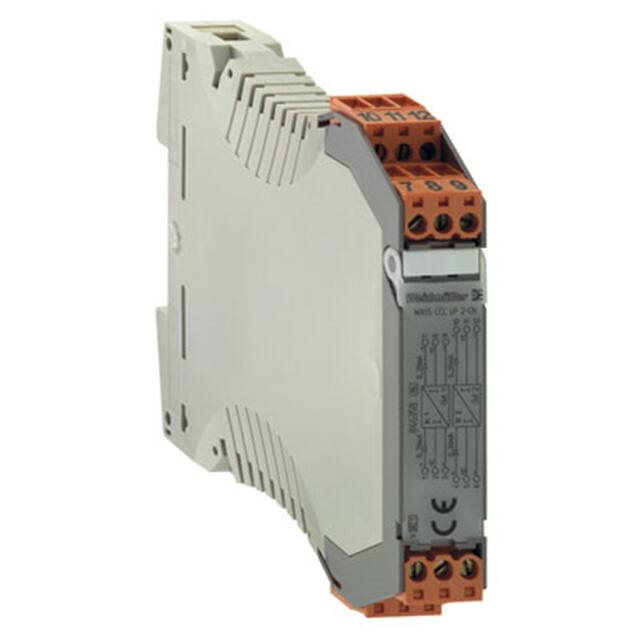

8444950000

Product catalogue | Electronics | Analogue signal conditioning | DC/DC passive isolator | Input current loop supply | single-channel General ordering data Order No. Part designation Version EAN Qty. Input Input current Max. voltage Max. current Voltage drop 8444950000 WAS5 CCC LP 0-20/0-20mA Input current loop feed, 0(4)...20 mA , Screw connection 4032248102099 1 pc(s). Number of inputs 0(4)...20 mA current loop 18 V 50 mA Approx. 3 V at R = 0 Ω; approx. 13 V at R = 500 Ω; (I =20 mA) 1 Output Output current Load resistance, current Accuracy Residual ripple Temperature coefficient Number of outputs 0(4)...20 mA ≤ 500 Ω < 0.1 % of end value < 20 mV ≤ 50 ppm/K of final value 1 General data Function Input/Output Galvanic isolation Type of connection Mounting rail Ambient temperature (operational) Storage temperature Input current loop feed 0(4)...20 mA/0(4)...20 mA (1-channel) Passive isolator Screw connection TS 35 -25 °C...+70 °C -40 °C...+80 °C Insulation coordination Standards EN 50178 (secure separation) -1- Product catalogue | Electronics | Analogue signal conditioning | DC/DC passive isolator | Input current loop supply | single-channel Insulation coordination EMC standards Insulation voltage input, output Insulation voltage input or output/rail Clearance & creepage distances Impulse withstand voltage Pollution severity Overvoltage category Rated voltage EN 55011, EN 61000-6 4 kV / 1 s 4 kV / 1 min. ≥ 5.5 mm 6 kV 2 III 300 V Dimensions Clamping range, max. Clamping range, min. Clamping range, nom. Length Height Width 2.5 mm² 0.5 mm² 2.5 mm² 92.4 mm 112.4 mm 17.5 mm Approvals Approvals institutes Classifications eClass 4.1 eClass 5.0 eClass 5.1 27-21-01-20 27-21-01-20 27-21-01-20 Similar products Order No. 8444960000 Part designation WAZ5 CCC LP 0-20/0-20mA Version Input current loop feed, 0(4)...20 mA , Tension clamp connection -2-
