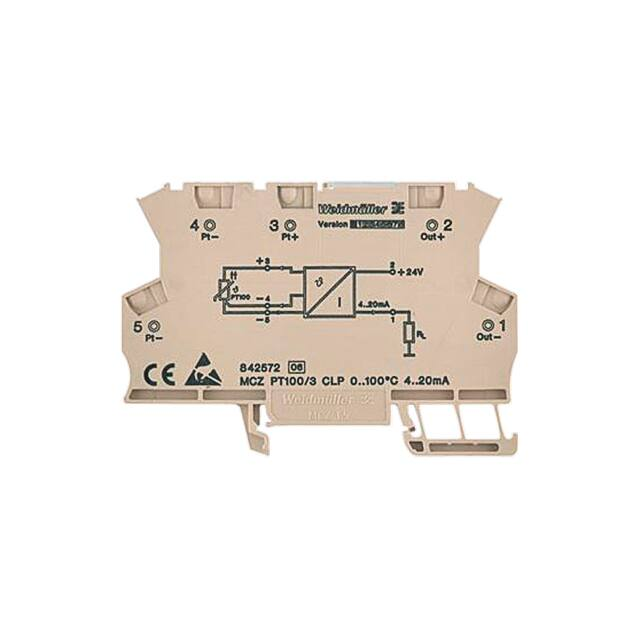

Product catalogue | Electronics | Analogue signal conditioning | Temperature RTD - signal isolator/converter | PT100, 2-/3-/4-conductor temperature transducer | MCZ PT100/3 CLP General ordering data Order No. Part designation Version EAN Qty. 8473000000 MCZ PT100/3 CLP -50C...+150C Signal converter/disconnector, 4...20 mA (current loop) , Tension clamp connection 4032248058273 10 pc(s). Input Sensor Temperature input range Number of inputs PT100/2-/3-conductor (to IEC 751) -50...+150 °C 1 Output Output current Load resistance, current Influence of line resistance Function 4...20 mA (current loop) ≤ 600 Ω Max. 0.006 K/Ω 3-conductor connection -1- Product catalogue | Electronics | Analogue signal conditioning | Temperature RTD - signal isolator/converter | PT100, 2-/3-/4-conductor temperature transducer | MCZ PT100/3 CLP Output Accuracy Linearization Step response time Temperature coefficient Number of outputs Typical 0.2%, max. 0.5% of FSR Yes 10 ms Max. ± 250 ppm/K 1 General data Function Input/Output Galvanic isolation Type of connection Mounting rail Voltage supply Ambient temperature (operational) Storage temperature PT100 PT100/ 4...20 mA (current loop) Without isolation Tension clamp connection TS 35 Max. 30 V/ min. 9 V + (20 mA x RL) 0 °C...+50 °C -20 °C...+85 °C Insulation coordination Standards EMC standards EN 50178, EN 60751, IEC751 EMVG, EN 61000-6 Dimensions Clamping range, max. Clamping range, min. Clamping range, nom. Length Height Width 1.5 mm² 0.5 mm² 1.5 mm² 91 mm 63.2 mm 6 mm Approvals Approvals institutes Classifications eClass 4.1 eClass 5.0 eClass 5.1 27-20-02-06 27-20-02-06 27-20-02-06 Similar products Order No. 8425720000 Part designation MCZ PT100/3 CLP 0...100C 8483680000 MCZ PT100/3 CLP 0...120C 8604420000 MCZ PT100/3 CLP 0...150C Version Signal converter/disconnector, 4...20 mA (current loop) , Tension clamp connection Signal converter/disconnector, 4...20 mA (current loop) , Tension clamp connection Signal converter/disconnector, 4...20 mA (current loop) , Tension clamp connection -2- Product catalogue | Electronics | Analogue signal conditioning | Temperature RTD - signal isolator/converter | PT100, 2-/3-/4-conductor temperature transducer | MCZ PT100/3 CLP 8473010000 MCZ PT100/3 CLP 0...200C 8473020000 MCZ PT100/3 CLP 0...300C 8604430000 MCZ PT100/3 CLP -40C...100C Signal converter/disconnector, 4...20 mA (current loop) , Tension clamp connection Signal converter/disconnector, 4...20 mA (current loop) , Tension clamp connection Signal converter/disconnector, 4...20 mA (current loop) , Tension clamp connection -3-
