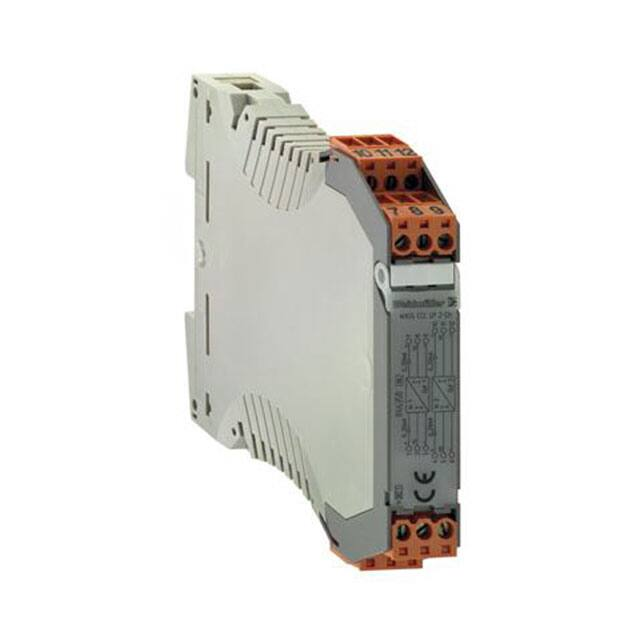

Product catalogue | Electronics | Monitoring modules | Limit value monitoring | Relay output General ordering data Order No. Part designation Version EAN Qty. 8543820000 WAS5 DC/Alarm Limit value monitoring, 0(4)...20 mA , 0...10 V , 1 , 3 A , 2 , Screw connection 4032248181230 1 pc(s). Input Input voltage Input current Input resistance Input resistance, current Number of inputs 0...10 V 0(4)...20 mA ≥ 100 kΩ ≤ 110 Ω 1 Output Output current Continuous current Function Accuracy Temperature coefficient Number of outputs 3A 3A Open-circuit/closed-circuit principle Repeat accuracy: max. ± 0.3% of end value (10 V/ 20 mA) 1...10 % (independent for chanel 1 and chanel 2) 2 CO contacts AgNi 90/10 1...90% (independently for channel 1 and channel 2) 253 V AC LED green ON: OK, LED red ON: alarm (per channel) ≤ 500 ppm/K 2 General data Function Input/Output Relay output 0...10 V, 0(4)...20 mA / 2 CO Hysteresis Contact assembly Contact material Switching thresholds Switching voltage, max. Status indicator -1- Product catalogue | Electronics | Monitoring modules | Limit value monitoring | Relay output General data Galvanic isolation Type of connection Mounting rail Weight Power consumption Current-carrying capacity of cross-connect. Voltage supply Default setting Ambient temperature (operational) Storage temperature 3-way isolator Screw connection TS 35 150 g Typically 1 W both relays picked up ≤2A 24 V DC ± 25 % Channel A/B: low trip and FAILSAFE 0°C...+55 °C (side by side) -20 °C...+85 °C Insulation coordination Standards EMC standards Insulation voltage input, output Insulation voltage input or output/supply Clearance & creepage distances Impulse withstand voltage Pollution severity Overvoltage category Rated voltage EN 50178 EN 61000-4-2, -3, -4, -5, -6 2 kVeff / 5 s 1.2 kV / 5 s ≥ 3 mm 4 kV 2 III 300 V Dimensions Clamping range, max. Clamping range, min. Clamping range, nom. Length Height Width 2.5 mm² 0.5 mm² 2.5 mm² 92.4 mm 112.4 mm 17.5 mm Approvals Approvals institutes Classifications eClass 4.1 eClass 5.0 eClass 5.1 27-21-01-22 27-21-01-22 27-21-01-22 Similar products Order No. 8543880000 Part designation WAZ5 DC/Alarm Version Limit value monitoring, 0(4)...20 mA , 0...10 V , 1 , 3 A , 2 , Tension clamp connection -2-
