8581160000

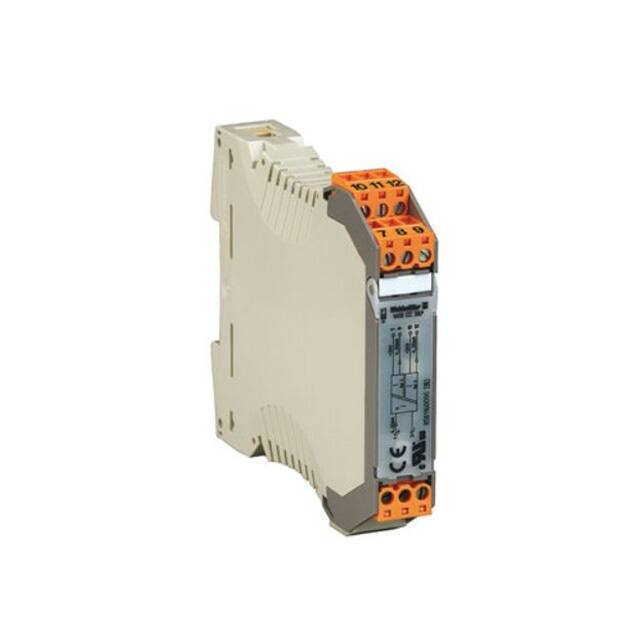

Product catalogue | Electronics | Analogue signal conditioning | DC/DC passive isolator | Signal multiplexer General ordering data Order No. Part designation Version EAN Qty. 8581160000 WAS5 CCC 2OLP Signal distributor, 2 x 4...20 mA (current loop) , Screw connection 4032248234462 1 pc(s). Input Input current Max. current Voltage drop Number of inputs 4...20 mA (current loop) 40 mA 3.8 V 1 Output Output current Load resistance, current Output signal limit Accuracy Cut-off frequency (-3 dB) Residual ripple Step response time Status indicator Temperature coefficient Number of outputs 2 x 4...20 mA (current loop) R = (U-12 V) / 20 mA z.B. 600 Ω at 24 V Approx. 31 mA Typical 0.1%, max. 0.2% 30 Hz 20 mV 120 mV at 500 Ω < 20 ms Green LED ≤ 150 ppm/K 2 General data Function Input/Output Galvanic isolation Type of connection Mounting rail Weight Voltage supply Ambient temperature (operational) Signal distributor 4...20 mA/ 2 x 4...20 mA Passive isolator Screw connection TS 35 100 g Min. 12 V DC/ max. 30 V DC 0°C...+55 °C (side by side) -1- Product catalogue | Electronics | Analogue signal conditioning | DC/DC passive isolator | Signal multiplexer General data Storage temperature -20 °C...+85 °C Insulation coordination Standards EMC standards Insulation voltage input, output Insulation voltage output/output Insulation voltage input or output/rail Insulation voltage input or output/supply Clearance & creepage distances Impulse withstand voltage Pollution severity Overvoltage category Rated voltage EN 50178 EN 55011, EN 61000-6 4 kV / 5 s 4 kV / 5 s 4 kV / 1 min. 4 kV / 5 s ≥ 5.5 mm 4 kV 2 III 300 V Dimensions Clamping range, max. Clamping range, min. Clamping range, nom. Length Height Width 2.5 mm² 0.5 mm² 2.5 mm² 92.4 mm 112.4 mm 17.5 mm Approvals Approvals institutes Classifications eClass 4.1 eClass 5.0 eClass 5.1 27-21-01-20 27-21-01-20 27-21-01-20 Similar products Order No. 8581170000 Part designation WAZ5 CCC 2OLP Version Signal distributor, 2 x 4...20 mA (current loop) , Tension clamp connection -2-
