8581210000

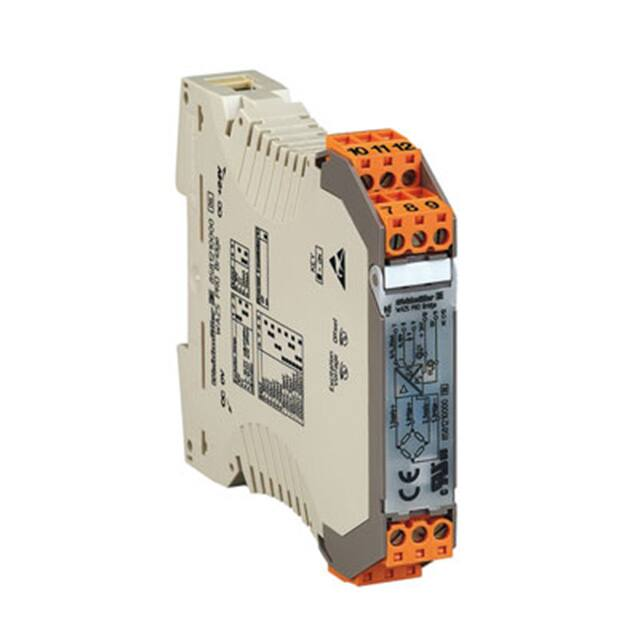

Product catalogue | Electronics | Analogue signal conditioning | Bridge measuring transducer General ordering data Order No. Part designation Version EAN Qty. 8581210000 WAZ5 PRO Bridge Measuring bridge converter, 0...5 V, 5...0 V, 10...0 V, 0...10 V , 0...20 mA, 20...0 mA, 4...20 mA, 20...4 mA , Tension clamp connection 4032248234615 1 pc(s). Input Input voltage Input resistance Number of inputs -500 mV...+500 mV > 1 MΩ 1 Output Output voltage Output current Load resistance, voltage Load resistance, current Accuracy Offset voltage Offset current Step response time Status indicator Temperature coefficient Number of outputs 0...5 V, 5...0 V, 10...0 V, 0...10 V 0...20 mA, 20...0 mA, 4...20 mA, 20...4 mA ≥ 1 kΩ ≤ 600 Ω 0.3% of output range max. 0.05 V Max. 100 µA Typically < 200 ms Green LED ± 250 ppm/K of output range 1 General data Function Input/Output Galvanic isolation Type of connection Mounting rail Bridge supply voltage Measuring bridge converter Configurable 3-way isolator Tension clamp connection TS 35 +10 V, +5 V, 4.8...10.2 V; offset adjustable; max. 40mA -1- Product catalogue | Electronics | Analogue signal conditioning | Bridge measuring transducer General data Weight Power consumption Current-carrying capacity of cross-connect. Voltage supply Default setting Ambient temperature (operational) Storage temperature 100 g Max. 1.9 W at I = 20 mA ≤2A 24 V DC ± 25 % -500 mV...+500 mV / 0...10 V / + 10 V / standard 0 °C...+55 °C -20 °C...+85 °C Insulation coordination Standards EMC standards Insulation voltage input, output Insulation voltage input or output/rail Insulation voltage input or output/supply Clearance & creepage distances Impulse withstand voltage Pollution severity Overvoltage category Rated voltage EN 50178 EN 61000-6 /-2 2 kVeff / 5 s 4 kV / 1 min. 2 kVeff / 5 s ≥ 3 mm 4 kV 2 III 300 V Dimensions Clamping range, max. Clamping range, min. Clamping range, nom. Length Height Width 2.5 mm² 0.5 mm² 1.5 mm² 92.4 mm 112.4 mm 17.5 mm Approvals Approvals institutes Classifications eClass 4.1 eClass 5.0 eClass 5.1 27-21-01-07 27-21-01-07 27-21-01-20 Similar products Order No. 8581200000 Part designation WAS5 PRO Bridge Version Measuring bridge converter, 0...5 V, 5...0 V, 10...0 V, 0...10 V , 0...20 mA, 20...0 mA, 4...20 mA, 20...4 mA , Screw connection -2-
