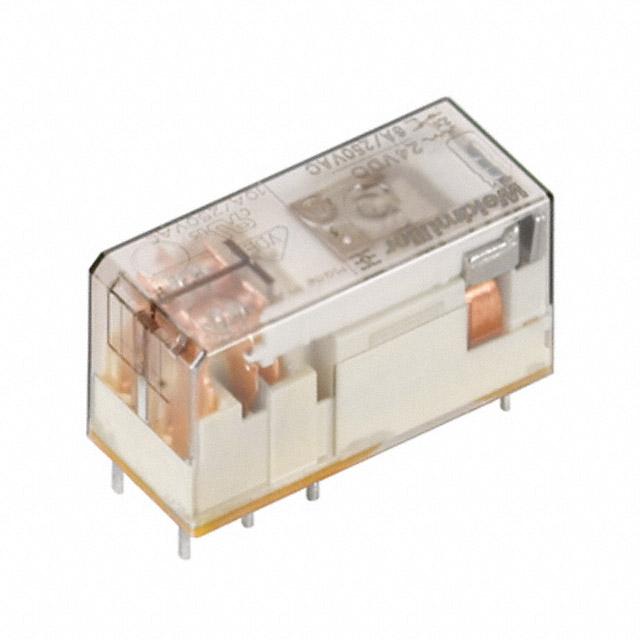

    Data sheet... RIDERSERIES RT314110 110VDC 1CO Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com     Standard relays in the RIDERSERIES RCL • 1 CO contact • Low height of 15.7 mm General ordering data   Order No. Type Version GTIN (EAN) Qty.   8630770000 RT314110 110VDC 1CO RIDERSERIES, Relais, No. of contacts: 1, CO contact, AgNi 90/10, Rated control voltage: 110 V DC, Continuous current: 16 A, Plug-in connection 4032248291908 20 pc(s). Creation date March 11, 2013 4:00:06 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 1     Data sheet... RIDERSERIES RT314110 110VDC 1CO   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Ratings   Conductor connection system UL 94 flammability rating   Plug-in connection V-0     Weight Ambient temperature 14 g -40 °C...+85°C 12.7 mm 15.7 mm 14 g       Height Weight   29 mm 14 g -40 °C...+85 °C -40 °C...+85 °C     Ambient temperature   -40 °C...+85°C 110 V DC   Power rating 400 mW // 0.75 VA 400 V     Continuous current Response time   Min. switching power     16 A DC coil: typ. 7/3 ms // AC coil: 9/45 ms 100 mA / 5 V, 10 V / 10 mA, 24 V / 1 mA     Contact design Mechanical service life     Clearance and creepage distances for control side - load side Protection degree     Relay     EC001437 30-21-19-17 27-37-16-01 27-37-16-01         ETIM 3.0 eClass 4.1 eClass 6.0   Dimensions and weights   Width Depth Net weight   Temperatures   Operating temperature Storage temperature   Input   Rated control voltage   Output   Max. switching voltage, AC Max. switching power 4 kVA Shutter/break contact element: typ.1/3ms Max. switching frequency at rated load 0.1 Hz Duration of Bounce   Contact specifications   No. of contacts Contact material   1 AgNi 90/10 CO contact 3 x 107 switching cycles Insulation coordination   Rated voltage 250 V Dielectric strength for control side - load 5 kVeff / 1min side Insulating material group IIIa   ≥ 10 mm IP 40 Other technical data   Version   Classifications   ETIM 2.0 UNSPSC eClass 5.1 eClass 7.0   EC001437 40-02-06-14 27-37-16-01 Creation date March 11, 2013 4:00:06 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 2     Data sheet... RIDERSERIES RT314110 110VDC 1CO   Technical data Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Approvals   Approvals   Creation date March 11, 2013 4:00:06 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 3     Data sheet... RIDERSERIES RT314110 110VDC 1CO   Drawings Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Electric symbol Creation date March 11, 2013 4:00:06 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 4     Data sheet... RIDERSERIES RT314110 110VDC 1CO   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Mating connector (fully pluggable) Base   General ordering data Order No. Type 8690830000 SRC 2CO 8783930000 SRC 2CO Z • Coupling relay with positively driven contacts: for monitoring signals within safety-critical circuits • Relays with positively driven contacts have a 99% diagnostics coverage and an excellent reputation for use in safety systems. • The contacts interlock with each other in order to ensure a synchronous switching status between both contacts. This guarantees that the alert contact will maintain the same switching status in the event of an error (for example, if the working contact melts from an overload). Version GTIN (EAN) Qty. RIDERSERIES, Relay base, 4032248361519 10 pc(s). Screw connection RIDERSERIES, Relay base, 4032248471430 10 pc(s). Tension clamp connection               Base   Relay base for RIDERSERIES RCL relays • Screw and tension clamp connection • Standard and low heights • Plug-in frame for PCB connections General ordering data Order No. Type 8693930000 SRC 2CO N Version GTIN (EAN) Qty. RIDERSERIES, Relay base, 4032248365418 10 pc(s). Screw connection           Creation date March 11, 2013 4:00:06 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 5     Data sheet... RIDERSERIES RT314110 110VDC 1CO   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Mating connector (fully pluggable) Base   Relay base for the RIDERSERIES RCI relays • 1 and 2 CO contacts • Screw and PUSH IN connection • Standard and low heights General ordering data Order No. Type 8869500000 SRC-I 2CO P Version GTIN (EAN) Qty. RIDERSERIES, Relay base, 4032248614455 10 pc(s). Continuous current: 16         A(1, 8 A, PUSH IN spring connection   Creation date March 11, 2013 4:00:06 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 6
