8690160000

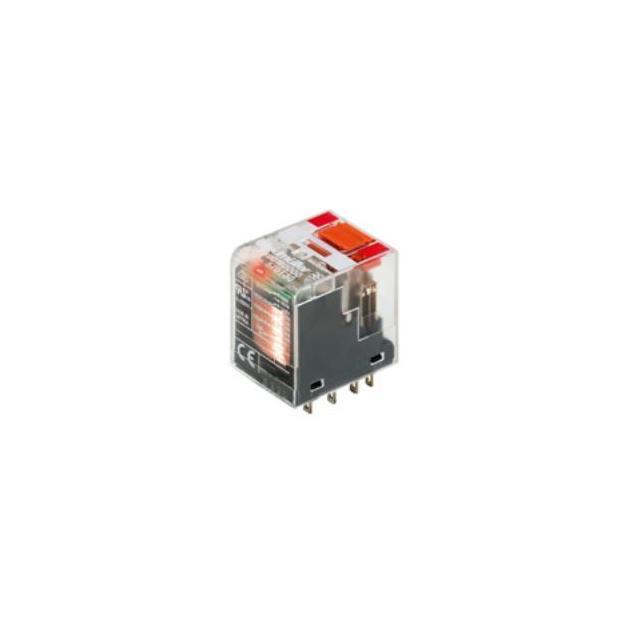

    Data sheet... RIDERSERIES RCM570T30 Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com     Standard relays in the RIDERSERIES RCM • 4 CO contacts • Optionally AC or DC coils • with test button • Comes optionally with integrated status display and/or free-wheel diode General ordering data   Order No. Type Version GTIN (EAN) Qty.   8690160000 RCM570T30 RIDERSERIES, Relais, No. of contacts: 4, CO contact with test button, AgNi 90/10, Rated control voltage: 230 V AC, Continuous current: 6 A, Plug-in connection 4032248360819 10 pc(s). Creation date March 11, 2013 5:55:39 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 1     Data sheet... RIDERSERIES RCM570T30   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Ratings   Conductor connection system UL 94 flammability rating     Humidity     22.5 mm 29 mm     Height Net weight 28 mm 28.2 g -40 °C...+70 °C   Storage temperature -40 °C...+85 °C 230 V AC 19,465 Ω ±15 % 184 V / 69 V       Rated current AC Power rating Status indicator 4.3 mA 1.0 VA red LED 240 V AC 6A 1500 VA 100 mA / 5 V, 10 V / 10 mA, 24 V / 1 mA         Max. switching voltage, AC 240 V making current 12 A / 20 ms Response time 15 ms / 10 ms Max. switching frequency at rated load 0.1 Hz   Contact design   Mechanical service life     Clearance and creepage distances for control side - load side Impulse withstand voltage   Insulating material group 5 kV (1.2/50 µs) IIIa   Status indicator red LED     Plug-in connection V-0 40 °C / 93 % rel. humidity, no condensation Dimensions and weights   Width Depth   Temperatures   Operating temperature   Input   Rated control voltage Coil resistance Response / drop-out voltage AC coil   Output   Rated switching voltage Continuous current Max. switching power Min. switching power   Contact specifications   No. of contacts Contact material   4 AgNi 90/10 CO contact with test button AC coil 20 x 106 Switching cycles, DC coil 30 x 106 Switching cycles Insulation coordination   Rated voltage 250 V Dielectric strength for control side - load 2.5 KVeff / 1 min. side Protection degree IP 20   ≥ 4 mm Other technical data   Version   with LED Further details of approvals / standards   Standards   IEC 61810-1, UL508 Creation date March 11, 2013 5:55:39 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 2     Data sheet... RIDERSERIES RCM570T30   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Classifications   ETIM 2.0 UNSPSC eClass 5.1 eClass 7.0   EC001437 30-21-19-17 27-37-16-01 27-37-16-01         ETIM 3.0 eClass 4.1 eClass 6.0   EC001437 40-02-06-14 27-37-16-01 Approvals   Approvals   Downloads   Declaration of Conformity   K295_12_10.pdf Creation date March 11, 2013 5:55:39 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 3     Data sheet... RIDERSERIES RCM570T30   Drawings Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Electric symbol Creation date March 11, 2013 5:55:39 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 4     Data sheet... RIDERSERIES RCM570T30   Drawings Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Creation date March 11, 2013 5:55:39 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 5
