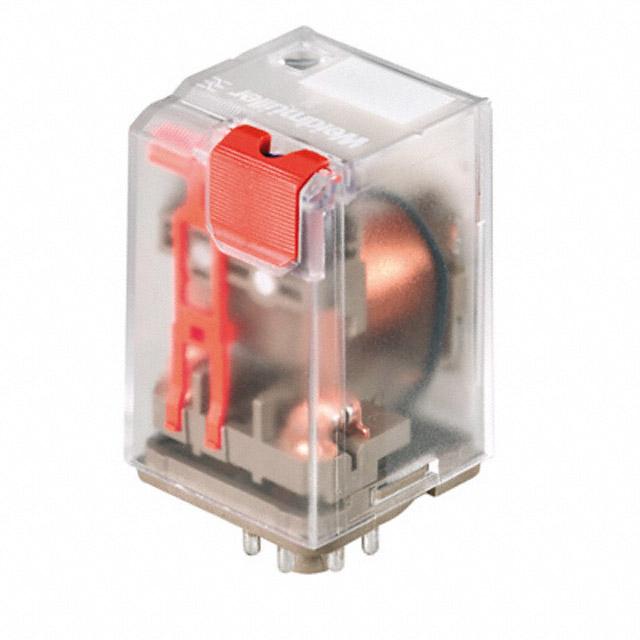

    Data sheet... RIDERSERIES RRD226230 Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com     The ideal relay version for the separation of input and output signals in industrial automation. High powers can be safely switched with the RIDERSERIES. Conventional relays and LED indicators are simply plugged in, retaining and disassembly clips provide a secure fixing. General ordering data   Order No. Type Version GTIN (EAN) Qty.   8690330000 RRD226230 RIDERSERIES, Relais, No. of contacts: 2, CO contact with test button, AgNi 90/10, Rated control voltage: 230 V AC, Continuous current: 10 A, Plug-in connection 4032248360956 25 pc(s). Creation date March 11, 2013 7:26:15 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 1     Data sheet... RIDERSERIES RRD226230   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Ratings   Conductor connection system Weight     Humidity   UL 94 flammability rating 35.5 mm 57 mm 83.96 g       Height Weight   35.5 mm 80 g -40 °C...+50 °C   Storage temperature -40 °C...+60 °C 230 V AC 8,300 Ω ±12 % 184 V / 92 V       Rated current AC Power rating Status indicator 10.1 mA 2.3 VA Mechanical 240 V AC 10 A 2500 VA 100 mA / 5 V, 10 V / 10 mA, 24 V / 1 mA         Max. switching voltage, AC 400 V making current 20 A / 20 ms Response time 15 ms / 10 ms Max. switching frequency at rated load 0.1 Hz   Contact design   Mechanical service life     Clearance and creepage distances for control side - load side Protection degree         Status indicator       Plug-in connection 80 g 40 °C / 93 % rel. humidity, no condensation V-0 Dimensions and weights   Width Depth Net weight   Temperatures   Operating temperature   Input   Rated control voltage Coil resistance Response / drop-out voltage AC coil   Output   Rated switching voltage Continuous current Max. switching power Min. switching power   Contact specifications   No. of contacts Contact material   2 AgNi 90/10 CO contact with test button 20 x 106 switching cycles Insulation coordination   Rated voltage 250 V Dielectric strength for control side - load 2.5 KVeff / 1 min. side Insulating material group IIIa   ≤ 3 mm IP 20 Other technical data   Version Free-wheel diode   with test button No Mechanical Further details of approvals / standards   Standards   IEC 61810-1, UL508 Creation date March 11, 2013 7:26:15 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 2     Data sheet... RIDERSERIES RRD226230   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Classifications   ETIM 2.0 UNSPSC eClass 5.1 eClass 7.0   EC001437 30-21-19-17 27-37-16-01 27-37-16-01         ETIM 3.0 eClass 4.1 eClass 6.0   EC001437 40-02-06-14 27-37-16-01 Approvals   Approvals   Downloads   Declaration of Conformity   K295_12_10.pdf Creation date March 11, 2013 7:26:15 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 3     Data sheet... RIDERSERIES RRD226230   Drawings Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Pinning Creation date March 11, 2013 7:26:15 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 4     Data sheet... RIDERSERIES RRD226230   Drawings Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Creation date March 11, 2013 7:26:15 PM CET   Catalogue status 20.12.2012 / We reserve the right to make technical changes. 5
