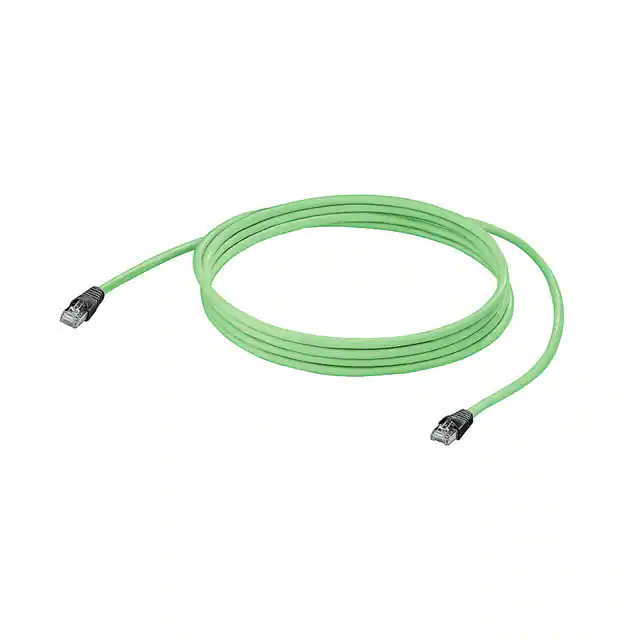

    Data sheet... Industrial Ethernet IE-C6ES8UG0200A40A40-E Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com     Industrial Ethernet connection technology by Weidmüller offers the optimal solution for the infrastructure of your machine, system or factory. All connection technology is available from one source. The benefits for you: • IEC-standardised connectors, in the variants 1, 4, 5 , 6 and 14 • Cat. 6 throughoutA with STEADYTEC® technolgy • pre-assembled cables and cables sold by the metre • Copper and fibre-optic cables • in IP20 and IP67 • all relevant industrial connections: RJ45, M12, SC, ... • comprehensive range of accessories General ordering data   Order No. Type Version GTIN (EAN) Qty.   8909650200 IE-C6ES8UG0200A40A40-E System cable, RJ45 IP 20, RJ45 IP 20, Cat.7 (ISO/ IEC 11801), PUR, 20 m 4032248691067 1 pc(s). Creation date May 1, 2013 3:36:44 PM CEST   Catalogue status 12.03.2013 / We reserve the right to make technical changes. 1     Data sheet... Industrial Ethernet IE-C6ES8UG0200A40A40-E   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Dimensions and weights   Length   20 m   Net weight 1,007 g -40 °C...+80 °C -15 °C...+60 °C     Storage temperature   -40 °C...+80 °C   Generic communication cable facilities EN 50173-1:2007, ISO / IEC 11801:2002 Standard, assembly UL-Style 20963 (80°C/30V) Temperatures   Operating temperature Installation temperature   Standards   Corrosiveness of fumes Connector standard   to IEC 60754-2 IEC 60603-7-51   Cable structure   Copper diameter Standard designations Cross-section Insulation cross-section Wire pair shielding Shielding Shielding braid thickness Sheath diameter, min. Sheathing colour     0.48 mm   S/FTP, LIO2YSC11Y 4x2x0.15 PIMF FRNC GN   4*2*AWG 26/7 4*2*0.128 mm²   1.03 mm   Aluminium foil Wire material Strands Insulation Arrangement of wire cores Colour sequence or wires - wire pairs   Complete shielding       Material sheath Sheath diameter, max.         Test voltage: wire-wire-shield, at RMS 50Hz, 1 min. Loop resistance Transfer impedance   Signal propagation time 5 *diameter ≤ 100 N in accordance with IEC 60332-1 in accordance with IEC 60754-2       Min. bending radius, repetitive Abrasion resistance Resistance to oils   Corrosiveness of fumes RJ45 IP 20   Version connector right S/FTP 0.1 mm 6.2 mm green (RAL 6018) Stranded tin-plated copper wire 7 PE Twisted pair white - blue, white orange, white - green, white - brown Shielding braid made from copper wiring PUR 6.6 mm Electrical properties of cable   Category Characteristic impedance Deviation Capacity at 1 kHz   Cat.7 (ISO/IEC 11801) 100 ± 5 Ω at 100MHz 3 ns/100m 45 nF/km 700 V 290 Ω/km 15 mΩ/m at 1 MHz, 10 mΩ/m at 10 MHz, 30 mΩ/m at 30 MHz 4.5 ns/m Mechanical and material properties of cable   Min. bending radius, once only Pulling force Resistance to spread of flame Halogen   10 *diameter very good in accordance with IEC 60811-2-1 to IEC 60754-2 plug   Version connector left   RJ45 IP 20 Creation date May 1, 2013 3:36:45 PM CEST   Catalogue status 12.03.2013 / We reserve the right to make technical changes. 2     Data sheet... Industrial Ethernet IE-C6ES8UG0200A40A40-E   Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Classifications   ETIM 2.0 UNSPSC eClass 5.1 eClass 7.1   EC001262 26-12-16-06 27-06-18-02 27-06-18-01         ETIM 3.0 eClass 4.1 eClass 6.2   EC001262 27-06-08-05 27-06-18-01 Approvals   Approvals ROHS   Conform Creation date May 1, 2013 3:36:45 PM CEST   Catalogue status 12.03.2013 / We reserve the right to make technical changes. 3
